Dell Inc. PowerEdge M610 ssj_ops@100% = 14,760,777
ssj_ops@100% per Host = 922,549
ssj_ops@100% per JVM = 461,274
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Sep 26, 2011
Hardware Availability: Feb-2011 Software Availability: Apr-2011 Publication: Nov 2, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     15,008,200
Calibration 2     14,873,791
Calibration 3     14,788,524
ssj_ops@calibrated=14,831,157
100% 99.5% 14,831,157 14,760,777
90% 90.0% 13,348,042 13,350,571
80% 80.1% 11,864,926 11,873,735
70% 70.0% 10,381,810 10,380,082
60% 60.0% 8,898,694 8,898,547
50% 50.0% 7,415,579 7,409,434
40% 40.0% 5,932,463 5,934,281
30% 30.0% 4,449,347 4,451,168
20% 20.0% 2,966,231 2,960,845
10% 10.0% 1,483,116 1,482,515
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
16 32 192 384 384 16 32
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Dell PowerEdge M1000e
Form Factor: 10U
Power Supply Quantity and Rating (W): 3 x 2700
Power Supply Details: Dell PN G803N
Network Switch: Dell PowerConnect 6348
Network Switch Details: Dell PowerConnect 6348
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: Dell M1000e Chassis Management Controller, Dell 16-Port Gigabit Ethernet Pass-Through Module
Comment: Network switch not measured for power
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge M610
# of Identical Nodes: 16
Comment: None
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge M610
Form Factor: Blade
CPU Name: Intel Xeon X5675 (3.06 GHz)
CPU Characteristics: 6 Core, 3.06 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 3060
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1, A2, A3, B1, B2, B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50 GB 2.5" SSD SATA (Dell PN X2N7H)
Disk Controller: Modular SATA Pass-Through
# and type of Network Interface Cards (NICs) Installed: 1 x onboard dual-port 1 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_27
JVM Command-line Options: -server -Xmx4g -Xms4g -Xmn3500m -XX:SurvivorRatio=55 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=12 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start /affinity [FFF, FFF000]]
JVM Instances: 2
JVM Initial Heap (MB): 4096
JVM Maximum Heap (MB): 4096
JVM Address Bits: 64
Boot Firmware Version: 3.0.0
Management Firmware Version: iDRAC 3.21 build 48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Disabled Adjacent Cache Line Prefetch in BIOS.
  • Disabled Hardware Prefetcher in BIOS.
  • Disabled DCU Streamer Prefetcher in BIOS.
  • Disabled Data Reuse in BIOS
  • Disabled Turbo Mode in BIOS
  • Memory Speed set to 1066MHz in BIOS.
  • DAPC Mode Enabled.
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    Host Instance Summary
    Host ssj_ops@100%
    M610-01 927,199
    M610-02 915,715
    M610-03 923,600
    M610-04 918,184
    M610-05 920,229
    M610-06 919,729
    M610-07 919,220
    M610-08 924,685
    M610-09 913,677
    M610-10 926,019
    M610-11 922,091
    M610-12 929,900
    M610-13 925,213
    M610-14 920,338
    M610-15 932,396
    M610-16 922,582
    ssj_ops@100% 14,760,777
    ssj_ops@100% per Host 922,549
    ssj_ops@100% per JVM 461,274

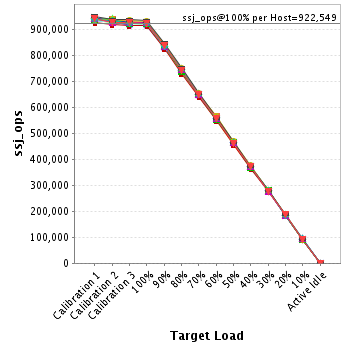

    Graph of per-host results
    Host 'M610-01' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     941,572
    Calibration 2     936,096
    Calibration 3     929,547
    ssj_ops@calibrated=932,822
    100% 99.4% 932,822 927,199
    90% 89.9% 839,540 838,914
    80% 80.0% 746,257 746,439
    70% 69.7% 652,975 650,301
    60% 60.4% 559,693 563,444
    50% 49.7% 466,411 464,060
    40% 39.7% 373,129 370,503
    30% 30.0% 279,847 279,383
    20% 19.9% 186,564 185,337
    10% 10.0% 93,282 92,871
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M610-02' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     934,350
    Calibration 2     929,197
    Calibration 3     915,684
    ssj_ops@calibrated=922,440
    100% 99.3% 922,440 915,715
    90% 89.7% 830,196 827,442
    80% 80.2% 737,952 740,236
    70% 69.9% 645,708 644,429
    60% 59.9% 553,464 552,846
    50% 49.9% 461,220 460,367
    40% 39.9% 368,976 368,388
    30% 30.2% 276,732 278,803
    20% 19.8% 184,488 182,820
    10% 10.0% 92,244 91,807
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M610-03' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     941,129
    Calibration 2     939,215
    Calibration 3     922,107
    ssj_ops@calibrated=930,661
    100% 99.2% 930,661 923,600
    90% 90.0% 837,595 837,363
    80% 80.3% 744,529 747,244
    70% 70.3% 651,463 653,914
    60% 60.2% 558,397 560,264
    50% 49.9% 465,331 464,002
    40% 40.0% 372,264 372,163
    30% 30.0% 279,198 279,008
    20% 19.9% 186,132 185,537
    10% 10.1% 93,066 93,640
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M610-04' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     936,851
    Calibration 2     921,759
    Calibration 3     920,902
    ssj_ops@calibrated=921,331
    100% 99.7% 921,331 918,184
    90% 89.8% 829,198 827,367
    80% 80.1% 737,064 737,712
    70% 69.9% 644,931 643,875
    60% 59.7% 552,798 550,250
    50% 49.6% 460,665 457,124
    40% 40.1% 368,532 369,237
    30% 30.0% 276,399 276,691
    20% 19.8% 184,266 182,806
    10% 10.0% 92,133 92,587
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M610-05' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     936,177
    Calibration 2     926,908
    Calibration 3     920,040
    ssj_ops@calibrated=923,474
    100% 99.6% 923,474 920,229
    90% 90.1% 831,127 832,420
    80% 79.9% 738,779 738,200
    70% 70.1% 646,432 647,025
    60% 60.2% 554,084 555,656
    50% 50.1% 461,737 462,527
    40% 40.1% 369,390 370,061
    30% 29.8% 277,042 275,026
    20% 20.0% 184,695 184,313
    10% 10.0% 92,347 92,809
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M610-06' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     934,948
    Calibration 2     925,138
    Calibration 3     922,862
    ssj_ops@calibrated=924,000
    100% 99.5% 924,000 919,729
    90% 90.3% 831,600 834,658
    80% 79.7% 739,200 736,084
    70% 70.3% 646,800 649,402
    60% 59.8% 554,400 552,265
    50% 50.3% 462,000 464,635
    40% 40.1% 369,600 370,180
    30% 30.0% 277,200 277,455
    20% 20.1% 184,800 185,792
    10% 10.0% 92,400 92,454
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M610-07' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     936,536
    Calibration 2     924,548
    Calibration 3     924,781
    ssj_ops@calibrated=924,664
    100% 99.4% 924,664 919,220
    90% 90.1% 832,198 832,722
    80% 80.4% 739,731 743,642
    70% 69.9% 647,265 645,956
    60% 60.2% 554,799 556,820
    50% 49.9% 462,332 461,047
    40% 40.1% 369,866 371,152
    30% 30.0% 277,399 276,956
    20% 20.1% 184,933 186,080
    10% 10.0% 92,466 92,089
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M610-08' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     943,467
    Calibration 2     932,814
    Calibration 3     925,326
    ssj_ops@calibrated=929,070
    100% 99.5% 929,070 924,685
    90% 89.7% 836,163 833,601
    80% 80.1% 743,256 744,476
    70% 70.0% 650,349 650,018
    60% 60.4% 557,442 560,795
    50% 50.1% 464,535 465,413
    40% 40.0% 371,628 371,298
    30% 30.0% 278,721 278,869
    20% 19.9% 185,814 185,239
    10% 9.9% 92,907 92,366
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M610-09' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     924,748
    Calibration 2     916,990
    Calibration 3     915,316
    ssj_ops@calibrated=916,153
    100% 99.7% 916,153 913,677
    90% 90.0% 824,538 824,369
    80% 79.7% 732,922 730,365
    70% 70.0% 641,307 641,647
    60% 59.8% 549,692 547,471
    50% 49.9% 458,076 457,140
    40% 39.9% 366,461 365,332
    30% 30.2% 274,846 277,023
    20% 20.1% 183,231 184,258
    10% 10.0% 91,615 91,737
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M610-10' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     939,876
    Calibration 2     932,565
    Calibration 3     925,366
    ssj_ops@calibrated=928,966
    100% 99.7% 928,966 926,019
    90% 90.2% 836,069 838,359
    80% 79.9% 743,173 742,446
    70% 70.0% 650,276 650,426
    60% 59.8% 557,379 555,701
    50% 50.0% 464,483 464,555
    40% 40.1% 371,586 372,339
    30% 30.0% 278,690 278,526
    20% 19.9% 185,793 185,076
    10% 9.9% 92,897 92,148
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M610-11' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     936,342
    Calibration 2     931,788
    Calibration 3     920,666
    ssj_ops@calibrated=926,227
    100% 99.6% 926,227 922,091
    90% 90.1% 833,604 834,534
    80% 79.7% 740,982 738,474
    70% 70.1% 648,359 648,863
    60% 59.9% 555,736 554,374
    50% 50.0% 463,113 462,655
    40% 39.9% 370,491 369,885
    30% 30.1% 277,868 279,029
    20% 20.0% 185,245 185,288
    10% 10.0% 92,623 92,794
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M610-12' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     935,462
    Calibration 2     935,244
    Calibration 3     932,544
    ssj_ops@calibrated=933,894
    100% 99.6% 933,894 929,900
    90% 90.2% 840,505 842,643
    80% 80.2% 747,115 748,790
    70% 70.0% 653,726 653,488
    60% 60.3% 560,337 562,680
    50% 50.3% 466,947 469,286
    40% 40.1% 373,558 374,830
    30% 29.9% 280,168 279,561
    20% 19.7% 186,779 183,922
    10% 10.0% 93,389 93,255
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M610-13' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     939,860
    Calibration 2     927,083
    Calibration 3     927,413
    ssj_ops@calibrated=927,248
    100% 99.8% 927,248 925,213
    90% 89.7% 834,523 831,602
    80% 80.2% 741,798 743,345
    70% 70.1% 649,073 650,200
    60% 59.8% 556,349 554,823
    50% 50.1% 463,624 464,337
    40% 40.1% 370,899 371,799
    30% 29.9% 278,174 276,907
    20% 19.9% 185,450 184,950
    10% 10.1% 92,725 93,283
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M610-14' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     937,698
    Calibration 2     933,088
    Calibration 3     923,415
    ssj_ops@calibrated=928,251
    100% 99.1% 928,251 920,338
    90% 89.9% 835,426 834,303
    80% 80.1% 742,601 743,645
    70% 69.9% 649,776 648,587
    60% 59.9% 556,951 556,431
    50% 50.0% 464,126 464,115
    40% 40.1% 371,301 372,180
    30% 30.2% 278,475 280,116
    20% 19.9% 185,650 185,057
    10% 10.1% 92,825 93,861
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M610-15' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     949,169
    Calibration 2     935,636
    Calibration 3     936,868
    ssj_ops@calibrated=936,252
    100% 99.6% 936,252 932,396
    90% 90.2% 842,627 844,866
    80% 80.2% 749,001 750,730
    70% 69.9% 655,376 654,787
    60% 59.8% 561,751 559,980
    50% 49.9% 468,126 467,291
    40% 39.8% 374,501 372,773
    30% 30.0% 280,876 280,642
    20% 20.2% 187,250 188,834
    10% 9.9% 93,625 92,506
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M610-16' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     940,015
    Calibration 2     925,722
    Calibration 3     925,686
    ssj_ops@calibrated=925,704
    100% 99.7% 925,704 922,582
    90% 90.2% 833,134 835,406
    80% 80.1% 740,563 741,909
    70% 69.9% 647,993 647,163
    60% 59.9% 555,423 554,746
    50% 49.8% 462,852 460,879
    40% 40.2% 370,282 372,163
    30% 29.9% 277,711 277,172
    20% 20.0% 185,141 185,537
    10% 10.0% 92,570 92,307
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
