Dell Inc. PowerEdge M610 ssj_ops@100% = 925,213
ssj_ops@100% per JVM = 462,607
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Sep 26, 2011
Hardware Availability: Feb-2011 Software Availability: Apr-2011 Publication: Nov 2, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     939,860
Calibration 2     927,083
Calibration 3     927,413
ssj_ops@calibrated=927,248
100% 99.8% 927,248 925,213
90% 89.7% 834,523 831,602
80% 80.2% 741,798 743,345
70% 70.1% 649,073 650,200
60% 59.8% 556,349 554,823
50% 50.1% 463,624 464,337
40% 40.1% 370,899 371,799
30% 29.9% 278,174 276,907
20% 19.9% 185,450 184,950
10% 10.1% 92,725 93,283
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge M610
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M610
Form Factor: Blade
CPU Name: Intel Xeon X5675 (3.06 GHz)
CPU Characteristics: 6 Core, 3.06 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 3060
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1, A2, A3, B1, B2, B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50 GB 2.5" SSD SATA (Dell PN X2N7H)
Disk Controller: Modular SATA Pass-Through
# and type of Network Interface Cards (NICs) Installed: 1 x onboard dual-port 1 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_27
JVM Command-line Options: -server -Xmx4g -Xms4g -Xmn3500m -XX:SurvivorRatio=55 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=12 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start /affinity [FFF, FFF000]]
JVM Instances: 2
JVM Initial Heap (MB): 4096
JVM Maximum Heap (MB): 4096
JVM Address Bits: 64
Boot Firmware Version: 3.0.0
Management Firmware Version: iDRAC 3.21 build 48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Disabled Adjacent Cache Line Prefetch in BIOS.
  • Disabled Hardware Prefetcher in BIOS.
  • Disabled DCU Streamer Prefetcher in BIOS.
  • Disabled Data Reuse in BIOS
  • Disabled Turbo Mode in BIOS
  • Memory Speed set to 1066MHz in BIOS.
  • DAPC Mode Enabled.
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M610-13.001 464,178
    M610-13.002 461,035
    ssj_ops@100% 925,213
    ssj_ops@100% per JVM 462,607

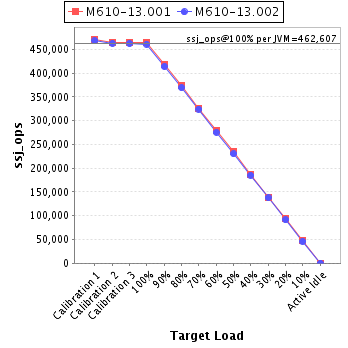

    Graph of per-instance results

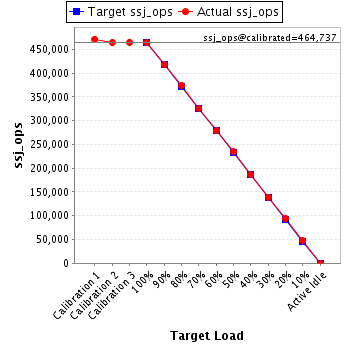

    JVM 'M610-13.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     471,670
    Calibration 2     464,352
    Calibration 3     465,122
    ssj_ops@calibrated=464,737
    100% 99.9% 464,737 464,178
    90% 89.8% 418,263 417,470
    80% 80.5% 371,790 374,020
    70% 70.1% 325,316 325,780
    60% 60.1% 278,842 279,079
    50% 50.4% 232,369 234,227
    40% 40.1% 185,895 186,533
    30% 30.0% 139,421 139,359
    20% 20.1% 92,947 93,626
    10% 10.1% 46,474 47,120
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M610-13.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     468,191
    Calibration 2     462,731
    Calibration 3     462,291
    ssj_ops@calibrated=462,511
    100% 99.7% 462,511 461,035
    90% 89.5% 416,260 414,132
    80% 79.9% 370,008 369,326
    70% 70.1% 323,757 324,420
    60% 59.6% 277,506 275,744
    50% 49.8% 231,255 230,110
    40% 40.1% 185,004 185,266
    30% 29.7% 138,753 137,548
    20% 19.7% 92,502 91,323
    10% 10.0% 46,251 46,163
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
