Acer Incorporated Gateway GT350 F1 SPECpower_ssj2008 = 2,462 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Apr 6, 2011
Hardware Availability: Mar-2011 Software Availability: Sep-2009 Publication: May 11, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 900,626 264 3,406
90% 89.8% 811,450 247 3,279
80% 79.9% 722,213 232 3,107
70% 70.1% 633,657 217 2,920
60% 59.8% 540,325 200 2,707
50% 50.1% 452,936 182 2,486
40% 39.9% 360,281 166 2,165
30% 30.0% 270,874 154 1,764
20% 20.0% 180,371 143 1,263
10% 10.2% 91,816 131 701
Active Idle 0 79.5 0
∑ssj_ops / ∑power = 2,462

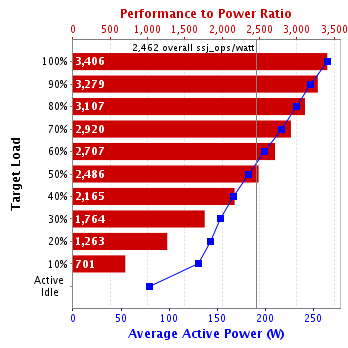

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GT350 F1
Form Factor: Tower
CPU Name: Intel Xeon X5675
CPU Characteristics: Six-Core, 3.07 GHz, 12 MB L3 cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): 1 x 720
Power Supply Details: PWS-721P-1R
Disk Drive: 1 x 500GB SATA 2.5 Acer Part# KH.50001.018"
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: <P05>
Management Firmware Version: <1.10>
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
  • BIOS Setting:
  • Intel Turbo Boost Technology - Disabled
  • Maximum Memory Bus Frequency - 1066MHz
  • Hardware Prefetcher - Disabled
  • Adjacent Sector Prefetch - Disabled
  • L1 Data Prefectcher - Disabled
  • Data Reuse Optimization- Disabled
  • USB Controller- Disabled
    • Management Firmware Settings
    None
    System Under Test Notes
    Controller System
    Hardware
    Hardware Vendor: Acer Incorporated
    Model: Gateway GR160 F1
    CPU Description: Intel L5520
    Memory amount (GB): 3
    Software
    Operating System (OS): Windows Server 2003 R2, Enterprise Edition SP2
    JVM Vendor: Oracle Corporation
    JVM Version: Oracle JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-ia32, compiled mode)
    CCS Version: 1.2.4
    Measurement Devices
    Power Analyzer pwr1
    Hardware Vendor: Yokogawa Electric International Pte. Ltd.
    Model: WT210
    Serial Number: 91H534921
    Connectivity: RS232
    Input Connection: Default
    Calibration Institute: NML (National Measurement Laboratory, R.O.C.)
    Accredited by: ETC, Taiwan
    Calibration Label: 10-06-BAC-041-01
    Date of Calibration: 1-Jun-2010
    PTDaemon Host System: same as CCS
    PTDaemon Host OS: same as CCS
    PTDaemon Version: 1.4.0-7071d9e7
    Setup Description: None
    Temperature Sensor temp1
    Hardware Vendor: Digi International Inc.
    Model: Watchport/H
    Driver Version: Watchport Virtual Port 5.0.0.0
    Connectivity: USB
    PTDaemon Host System: same as CCS
    PTDaemon Host OS: same as CCS
    Setup Description: None
    Notes
    None
    Aggregate Electrical and Environmental Data
    Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
    100% 264 20.9
    90% 247 21.6
    80% 232 21.9
    70% 217 21.6
    60% 200 21.8
    50% 182 21.6
    40% 166 21.6
    30% 154 21.6
    20% 143 21.6
    10% 131 21.7
    Active Idle 79.5 21.8
    Line Standard Minimum Temperature (°C) Elevation (m)
    220V / 60 Hz / 1 phase / 2 wires 20.9 132
    See the Power/Temperature Details Report for additional details.
    Aggregate Performance Data
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     904,986
    Calibration 2     905,000
    Calibration 3     903,001
    ssj_ops@calibrated=904,000
    100% 99.6% 904,000 900,626
    90% 89.8% 813,600 811,450
    80% 79.9% 723,200 722,213
    70% 70.1% 632,800 633,657
    60% 59.8% 542,400 540,325
    50% 50.1% 452,000 452,936
    40% 39.9% 361,600 360,281
    30% 30.0% 271,200 270,874
    20% 20.0% 180,800 180,371
    10% 10.2% 90,400 91,816
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
