Acer Incorporated Gateway GT350 F1 ssj_ops@100% = 900,626
ssj_ops@100% per JVM = 150,104
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Apr 6, 2011
Hardware Availability: Mar-2011 Software Availability: Sep-2009 Publication: May 11, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     904,986
Calibration 2     905,000
Calibration 3     903,001
ssj_ops@calibrated=904,000
100% 99.6% 904,000 900,626
90% 89.8% 813,600 811,450
80% 79.9% 723,200 722,213
70% 70.1% 632,800 633,657
60% 59.8% 542,400 540,325
50% 50.1% 452,000 452,936
40% 39.9% 361,600 360,281
30% 30.0% 271,200 270,874
20% 20.0% 180,800 180,371
10% 10.2% 90,400 91,816
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GT350 F1
Form Factor: Tower
CPU Name: Intel Xeon X5675
CPU Characteristics: Six-Core, 3.07 GHz, 12 MB L3 cache
CPU Frequency (MHz): 3067
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor
Power Supply Quantity and Rating (W): 1 x 720
Power Supply Details: PWS-721P-1R
Disk Drive: 1 x 500GB SATA 2.5 Acer Part# KH.50001.018"
Disk Controller: onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82576EB Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power save enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: <P05>
Management Firmware Version: <1.10>
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM Websphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
  • BIOS Setting:
  • Intel Turbo Boost Technology - Disabled
  • Maximum Memory Bus Frequency - 1066MHz
  • Hardware Prefetcher - Disabled
  • Adjacent Sector Prefetch - Disabled
  • L1 Data Prefectcher - Disabled
  • Data Reuse Optimization- Disabled
  • USB Controller- Disabled
    • Management Firmware Settings
    None
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    T350F1.001 148,948
    T350F1.002 152,928
    T350F1.003 152,927
    T350F1.004 150,544
    T350F1.005 147,837
    T350F1.006 147,444
    ssj_ops@100% 900,626
    ssj_ops@100% per JVM 150,104

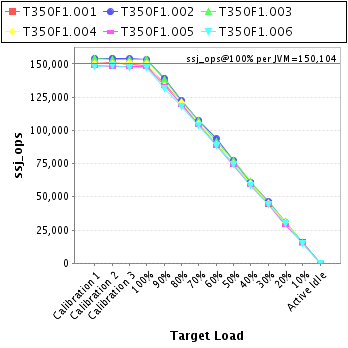

    Graph of per-instance results
    JVM 'T350F1.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     150,452
    Calibration 2     150,702
    Calibration 3     149,443
    ssj_ops@calibrated=150,072
    100% 99.3% 150,072 148,948
    90% 90.0% 135,065 135,094
    80% 80.0% 120,058 120,029
    70% 70.1% 105,051 105,180
    60% 59.3% 90,043 89,023
    50% 50.0% 75,036 75,015
    40% 39.8% 60,029 59,665
    30% 29.8% 45,022 44,704
    20% 19.8% 30,014 29,688
    10% 10.2% 15,007 15,325
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'T350F1.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     154,210
    Calibration 2     154,266
    Calibration 3     153,862
    ssj_ops@calibrated=154,064
    100% 99.3% 154,064 152,928
    90% 90.4% 138,658 139,234
    80% 79.4% 123,251 122,398
    70% 69.8% 107,845 107,559
    60% 60.8% 92,438 93,648
    50% 50.3% 77,032 77,449
    40% 39.6% 61,626 61,076
    30% 30.2% 46,219 46,486
    20% 20.0% 30,813 30,828
    10% 10.0% 15,406 15,433
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'T350F1.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     154,006
    Calibration 2     153,442
    Calibration 3     153,521
    ssj_ops@calibrated=153,482
    100% 99.6% 153,482 152,927
    90% 89.9% 138,134 137,944
    80% 79.5% 122,785 122,004
    70% 69.9% 107,437 107,280
    60% 59.6% 92,089 91,423
    50% 50.4% 76,741 77,366
    40% 40.3% 61,393 61,788
    30% 29.9% 46,045 45,904
    20% 20.3% 30,696 31,090
    10% 10.3% 15,348 15,766
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'T350F1.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     149,985
    Calibration 2     150,212
    Calibration 3     150,933
    ssj_ops@calibrated=150,572
    100% 100.0% 150,572 150,544
    90% 89.0% 135,515 133,940
    80% 80.2% 120,458 120,710
    70% 70.0% 105,401 105,336
    60% 59.3% 90,343 89,297
    50% 50.0% 75,286 75,225
    40% 40.0% 60,229 60,175
    30% 30.0% 45,172 45,235
    20% 20.1% 30,114 30,321
    10% 10.1% 15,057 15,229
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'T350F1.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     148,652
    Calibration 2     147,923
    Calibration 3     147,794
    ssj_ops@calibrated=147,859
    100% 100.0% 147,859 147,837
    90% 90.3% 133,073 133,447
    80% 80.5% 118,287 119,051
    70% 70.5% 103,501 104,301
    60% 59.9% 88,715 88,568
    50% 50.0% 73,929 73,871
    40% 39.7% 59,143 58,744
    30% 29.9% 44,358 44,213
    20% 19.2% 29,572 28,429
    10% 10.4% 14,786 15,311
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'T350F1.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     147,682
    Calibration 2     148,454
    Calibration 3     147,448
    ssj_ops@calibrated=147,951
    100% 99.7% 147,951 147,444
    90% 89.1% 133,156 131,792
    80% 79.8% 118,361 118,020
    70% 70.3% 103,566 104,001
    60% 59.7% 88,771 88,366
    50% 50.0% 73,976 74,010
    40% 39.8% 59,181 58,833
    30% 30.0% 44,385 44,333
    20% 20.3% 29,590 30,015
    10% 10.0% 14,795 14,753
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
