SPECpower_ssj2008
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Five9 Network Systems Five9 N1200 Carrier Grade Server | SPECpower_ssj2008 = 1,990 overall ssj_ops/watt | ||||
| Test Sponsor: | Five9 Network Systems | SPEC License #: | 4108 | Test Method: | Single Node |
| Tested By: | Five9 Network Systems | Test Location: | Moffett Field, CA, USA | Test Date: | Dec 22, 2010 |
| Hardware Availability: | May-2011 | Software Availability: | May-2011 | Publication: | Apr 28, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

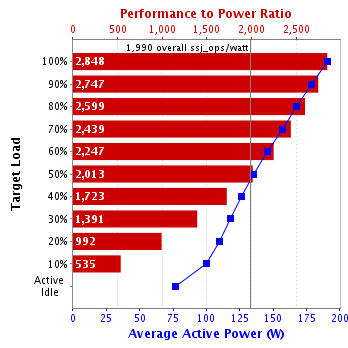

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 542,457 | 190 | 2,848 |
| 90% | 90.1% | 490,808 | 179 | 2,747 |
| 80% | 79.7% | 434,288 | 167 | 2,599 |
| 70% | 70.2% | 382,473 | 157 | 2,439 |
| 60% | 60.0% | 326,997 | 146 | 2,247 |
| 50% | 50.1% | 272,940 | 136 | 2,013 |
| 40% | 39.9% | 217,640 | 126 | 1,723 |
| 30% | 30.2% | 164,577 | 118 | 1,391 |
| 20% | 20.0% | 109,136 | 110 | 992 |
| 10% | 9.8% | 53,448 | 99.9 | 535 |
| Active Idle | 0 | 76.5 | 0 | |
| ∑ssj_ops / ∑power = | 1,990 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | Five9NS N1200 Carrier Grade Server |
| Hardware | |
|---|---|
| Hardware Vendor: | Five9 Network Systems |
| Model: | Five9 N1200 Carrier Grade Server |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon X5670 |
| CPU Characteristics: | Six-Core, 2.93 GHz, 12MB L3 Cache |
| CPU Frequency (MHz): | 2930 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per chip |
| Tertiary Cache: | 12 MB I+D off chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 12 |
| # and size of DIMM: | 6 x 2 GB |
| Memory Details: | 2GB 256M x 72-Bit PC3-10600, DDR3-1333MHz CL9 SDRAM; slots A1, B1, C1, D1, E1 and F1 populated, Part#: Kingston KVR1333D3E9S/2G |
| Power Supply Quantity and Rating (W): | 1 x 450 |
| Power Supply Details: | Delta Electronics, DPS-400AB-10 B |
| Disk Drive: | 1x 64GB SSD 2.5" SATA2, Kingston V+ series, Model#: SNVP325-S2B/64GB |
| Disk Controller: | Onboard SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Intel 82576 Gigabit Dual Port NIC |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Server enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise |
| OS Version: | 6.1.7600 N/A Build 7600 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Sever 2008 R2 amd64-64 jvmwa6460sr8ifx-20100923_65174 (JIT enabled, AOT enabled)) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1550m -Xmx1550m -Xnoloa -XtlhPrefetch |
| JVM Affinity: | start /affinity [0xF,0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000] |
| JVM Instances: | 6 |
| JVM Initial Heap (MB): | 1550 |
| JVM Maximum Heap (MB): | 1550 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | S5500.86B.01.00.0054.092820101104, 9/28/2010 |
| Management Firmware Version: | 0.54 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | IBM Websphere Application Server V7.0 for Windows on x86-64 bit |
| Hardware | |
|---|---|
| Hardware Vendor: | Five9 Network Systems |
| Model: | Five9NS T3110 Tower Server |
| CPU Description: | Intel Core i3-540 |
| Memory amount (GB): | 4.0 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows 7 Professional N |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.3, J2RE 1.5.0 IBM J9 2.3 Windows Vista x86-32 j9vmwi3223-20070426 (JIT enabled)) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd |
| Model: | WT210 Digital Power Meter, Model 760401-D/C1 |
| Serial Number: | 91K934816 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST (National Institute of Standards and Technology) |
| Accredited by: | Techmaster Electronics, Inc. |
| Calibration Label: | 313332 |
| Date of Calibration: | 19-Nov-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port, v5.30.2.0 |
| Connectivity: | USB |
| PTDaemon Host System: | Same as CCS |
| PTDaemon Host OS: | Same as CCS |
| Setup Description: | None |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 190 | 22.4 |
| 90% | 179 | 22.6 |
| 80% | 167 | 22.8 |
| 70% | 157 | 22.7 |
| 60% | 146 | 22.6 |
| 50% | 136 | 22.4 |
| 40% | 126 | 22.2 |
| 30% | 118 | 22.2 |
| 20% | 110 | 22.1 |
| 10% | 99.9 | 22.1 |
| Active Idle | 76.5 | 22.1 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 120V / 60 Hz / 1 phase / 2 wires | 22.1 | 132 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 540,349 | ||
| Calibration 2 | 544,683 | ||
| Calibration 3 | 544,881 | ||
| ssj_ops@calibrated=544,782 | |||
| 100% | 99.6% | 544,782 | 542,457 |
| 90% | 90.1% | 490,304 | 490,808 |
| 80% | 79.7% | 435,825 | 434,288 |
| 70% | 70.2% | 381,347 | 382,473 |
| 60% | 60.0% | 326,869 | 326,997 |
| 50% | 50.1% | 272,391 | 272,940 |
| 40% | 39.9% | 217,913 | 217,640 |
| 30% | 30.2% | 163,435 | 164,577 |
| 20% | 20.0% | 108,956 | 109,136 |
| 10% | 9.8% | 54,478 | 53,448 |
| Active Idle | 0 | 0 | |
