Five9 Network Systems Five9 N1200 Carrier Grade Server SPECpower_ssj2008 = 1,990 overall ssj_ops/watt
Test Sponsor: Five9 Network Systems SPEC License #: 4108 Test Method: Single Node
Tested By: Five9 Network Systems Test Location: Moffett Field, CA, USA Test Date: Dec 22, 2010
Hardware Availability: May-2011 Software Availability: May-2011 Publication: Apr 28, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 186 21.9
Calibration 2 189 22.0
Calibration 3 191 22.2
100% 190 22.4
90% 179 22.6
80% 167 22.8
70% 157 22.7
60% 146 22.6
50% 136 22.4
40% 126 22.2
30% 118 22.2
20% 110 22.1
10% 99.9 22.1
Active Idle 76.5 22.1

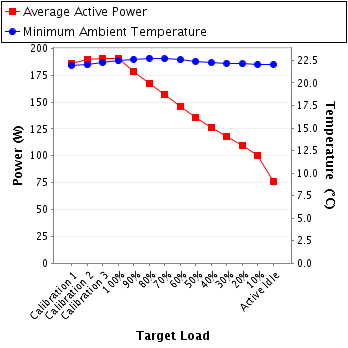

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd
Model: WT210 Digital Power Meter, Model 760401-D/C1
Serial Number: 91K934816
Connectivity: GPIB
Input Connection: Default
Calibration Institute: NIST (National Institute of Standards and Technology)
Accredited by: Techmaster Electronics, Inc.
Calibration Label: 313332
Date of Calibration: 19-Nov-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc
Model: Watchport/H
Driver Version: Watchport Virtual Port, v5.30.2.0
Connectivity: USB
PTDaemon Host System: Same as CCS
PTDaemon Host OS: Same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 121 auto 1.54 auto 0.997 186 0.3%
Calibration 2 121 auto 1.57 auto 0.998 189 0.3%
Calibration 3 121 auto 1.59 auto 0.998 191 0.3%
100% 121 auto 1.58 auto 0.998 190 0.3%
90% 121 auto 1.49 auto 0.995 179 0.3%
80% 121 auto 1.39 auto 0.993 167 0.3%
70% 121 auto 1.31 auto 0.991 157 0.3%
60% 121 auto 1.22 auto 0.990 146 0.3%
50% 121 auto 1.13 auto 0.988 136 0.4%
40% 121 auto 1.06 auto 0.988 126 0.4%
30% 121 auto 0.991 auto 0.987 118 0.3%
20% 121 auto 0.925 auto 0.985 110 0.3%
10% 121 auto 0.843 auto 0.979 99.9 0.3%
Active Idle 121 auto 0.663 auto 0.952 76.5 0.4%

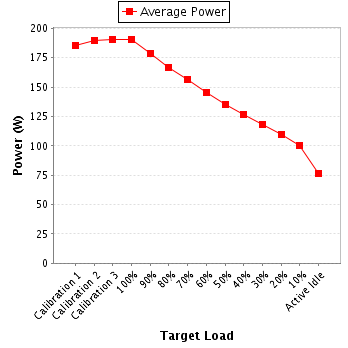

Power details for pwr1
