NEC Corporation Express5800/A1080a-E SPECpower_ssj2008 = 1,335 overall ssj_ops/watt
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Single Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: Dec 17, 2010
Hardware Availability: Jan-2011 Software Availability: Sep-2010 Publication: Jan 26, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.4% 3,646,995 1,749 2,086
90% 90.0% 3,302,360 1,687 1,957
80% 80.3% 2,945,038 1,625 1,813
70% 70.0% 2,568,463 1,552 1,655
60% 60.0% 2,200,029 1,461 1,506
50% 50.0% 1,834,898 1,361 1,348
40% 39.9% 1,464,388 1,274 1,149
30% 30.0% 1,099,560 1,202 915
20% 19.9% 731,784 1,134 645
10% 10.0% 366,109 1,060 346
Active Idle 0 993 0
∑ssj_ops / ∑power = 1,335

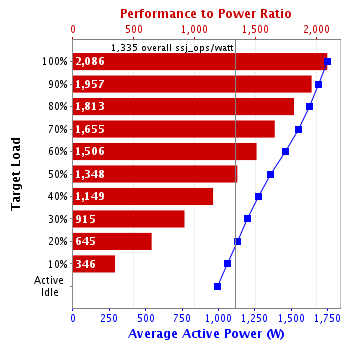

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Express5800/A1080a-E (Intel Xeon X7560, 2.26 GHz)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: NEC Corporation
Model: Express5800/A1080a-E
Form Factor: 7U
CPU Name: Intel Xeon X7560
CPU Characteristics: Octa-Core, 2.26 GHz, 24 MB L3 Cache
CPU Frequency (MHz): 2266
CPU(s) Enabled: 64 cores, 8 chips, 8 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 8 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 24 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 128
# and size of DIMM: 32 x 4096 MB
Memory Details: 4GB 2Rx4 PC3-8500R ECC CL7; slots DIMM#1-DIMM#4 populated on each PMM (Processor Memory Module)
Power Supply Quantity and Rating (W): 2 x 2200
Power Supply Details: NEC RH1685
Disk Drive: 1 x 300GB 10krpm HDD 2.5inch SAS, NEC P/N:NE3105-104
Disk Controller: 6Gbps SAS RAID Controller for Embedded HDD/SSD, NEC P/N:NE3104-001
# and type of Network Interface Cards (NICs) Installed: 1 x Integrated Intel 82576 Gigabit Dual Port Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Power saver
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: R2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_21 Performance Release
JVM Command-line Options: -Xms14400m -Xmx14400m -Xmn13200m -XX:+AggressiveOpts -XX:+UseBiasedLocking -XX:+UseStringCache -XX:+OptimizeStringConcat -XX:+UseCompressedStrings -XX:+UseParallelOldGC -XX:ParallelGCThreads=16 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseCompressedOops -XX:+AlwaysPreTouch -XX:AllocatePrefetchDistance=192 -XX:AllocatePrefetchLines=4 -XX:SurvivorRatio=50 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=5500 -XX:MaxInlineSize=220 -XX:FreqInlineSize=2500 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15
JVM Affinity: start /affinity [FFFF,FFFF,FFFF0000,FFFF0000,FFFF00000000,FFFF00000000,FFFF000000000000,FFFF000000000000]
JVM Instances: 8
JVM Initial Heap (MB): 14400
JVM Maximum Heap (MB): 14400
JVM Address Bits: 64
Boot Firmware Version: 1.65
Management Firmware Version: 2.0.0.8
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Controller System
Hardware
Hardware Vendor: NEC Corporation
Model: Express5800/R120a-2
CPU Description: Intel Xeon X5550
Memory amount (GB): 4
Software
Operating System (OS): Microsoft Windows Server 2008 Standard Edition Service Pack 2
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build R28.0.1-21-133393-1.6.0_20-20100512-2132-windows-ia32, compiled mode)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H928024
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: JQA (Japan Quality Assurance Organization)
Calibration Label: 150-95429
Date of Calibration: 4-Mar-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.30.2.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 1,749 20.4
90% 1,687 20.5
80% 1,625 20.4
70% 1,552 20.4
60% 1,461 20.4
50% 1,361 20.4
40% 1,274 20.3
30% 1,202 20.2
20% 1,134 20.2
10% 1,060 20.2
Active Idle 993 20.2
Line Standard Minimum Temperature (°C) Elevation (m)
202V / 50 Hz / 1 phase / 2 wires 20.2 52
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,657,625
Calibration 2     3,677,895
Calibration 3     3,659,407
ssj_ops@calibrated=3,668,651
100% 99.4% 3,668,651 3,646,995
90% 90.0% 3,301,786 3,302,360
80% 80.3% 2,934,921 2,945,038
70% 70.0% 2,568,056 2,568,463
60% 60.0% 2,201,191 2,200,029
50% 50.0% 1,834,326 1,834,898
40% 39.9% 1,467,460 1,464,388
30% 30.0% 1,100,595 1,099,560
20% 19.9% 733,730 731,784
10% 10.0% 366,865 366,109
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
