SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| NEC Corporation Express5800/A1080a-E | SPECpower_ssj2008 = 1,335 overall ssj_ops/watt | ||||
| Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Single Node |
| Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Dec 17, 2010 |
| Hardware Availability: | Jan-2011 | Software Availability: | Sep-2010 | Publication: | Jan 26, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

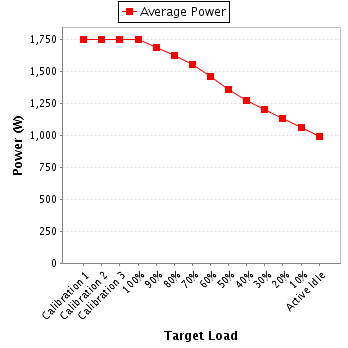

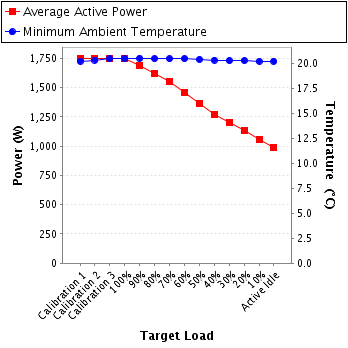

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,751 | 20.2 |
| Calibration 2 | 1,752 | 20.3 |
| Calibration 3 | 1,751 | 20.4 |
| 100% | 1,749 | 20.4 |
| 90% | 1,687 | 20.5 |
| 80% | 1,625 | 20.4 |
| 70% | 1,552 | 20.4 |
| 60% | 1,461 | 20.4 |
| 50% | 1,361 | 20.4 |
| 40% | 1,274 | 20.3 |
| 30% | 1,202 | 20.2 |
| 20% | 1,134 | 20.2 |
| 10% | 1,060 | 20.2 |
| Active Idle | 993 | 20.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H928024 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Calibration Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | JQA (Japan Quality Assurance Organization) |
| Calibration Label: | 150-95429 |
| Date of Calibration: | 4-Mar-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.30.2.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 202 | 300.0 | 8.77 | 10.0 | 0.990 | 1,751 | 0.3% |
| Calibration 2 | 202 | 300.0 | 8.77 | 10.0 | 0.990 | 1,752 | 0.3% |
| Calibration 3 | 202 | 300.0 | 8.75 | 10.0 | 0.990 | 1,751 | 0.3% |
| 100% | 202 | 300.0 | 8.73 | 10.0 | 0.990 | 1,749 | 0.3% |
| 90% | 203 | 300.0 | 8.41 | 10.0 | 0.989 | 1,687 | 0.3% |
| 80% | 203 | 300.0 | 8.09 | 10.0 | 0.989 | 1,625 | 0.3% |
| 70% | 203 | 300.0 | 7.72 | 10.0 | 0.988 | 1,552 | 0.3% |
| 60% | 204 | 300.0 | 7.27 | 10.0 | 0.987 | 1,461 | 0.3% |
| 50% | 203 | 300.0 | 6.80 | 10.0 | 0.986 | 1,361 | 0.4% |
| 40% | 203 | 300.0 | 6.36 | 10.0 | 0.985 | 1,274 | 0.4% |
| 30% | 203 | 300.0 | 6.01 | 10.0 | 0.985 | 1,202 | 0.4% |
| 20% | 203 | 300.0 | 5.68 | 10.0 | 0.984 | 1,134 | 0.4% |
| 10% | 203 | 300.0 | 5.30 | 10.0 | 0.983 | 1,060 | 0.4% |
| Active Idle | 204 | 300.0 | 4.97 | 10.0 | 0.981 | 993 | 0.4% |
