Dell Inc. PowerEdge M610 SPECpower_ssj2008 = 3,093 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 12, 2010
Hardware Availability: Sep-2010 Software Availability: Jul-2009 Publication: Sep 9, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 14,437,407 3,716 3,885
90% 90.0% 13,059,903 3,339 3,911
80% 80.0% 11,611,558 2,998 3,873
70% 70.0% 10,155,306 2,721 3,733
60% 60.0% 8,699,021 2,484 3,502
50% 50.0% 7,250,931 2,296 3,158
40% 40.0% 5,803,201 2,107 2,754
30% 30.0% 4,357,138 1,932 2,255
20% 20.0% 2,900,976 1,755 1,653
10% 10.0% 1,457,648 1,550 940
Active Idle 0 877 0
∑ssj_ops / ∑power = 3,093

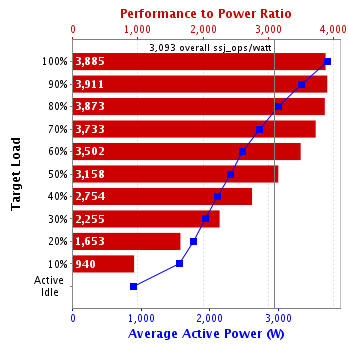

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
16 32 192 384 192 16 96
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Dell PowerEdge M1000E
Form Factor: 10U
Power Supply Quantity and Rating (W): 3 x 2700
Power Supply Details: Dell PN G803N
Network Switch: 1
Network Switch Details: 24 port Dell Gigabit Switch
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: 1 x Dell 16-port Gigabit Ethernet Pass-Through Module
Comment: Network Switch not measured for Power
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge M610
# of Identical Nodes: 16
Comment: None
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge M610
Form Factor: Blade
CPU Name: Intel Xeon X5670
CPU Characteristics: Six Core, 2.93 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50GB 2.5" SSD SATA (Dell PN Y949P)
Disk Controller: Modular SATA Pass-Through
# and type of Network Interface Cards (NICs) Installed: 1 x onboard dual-port Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 2.1.9
Management Firmware Version: iDRAC 3.0.0 A02 / CMC 3.0.1 A00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge 1950
CPU Description: Intel Xeon 5160
Memory amount (GB): 4
Software
Operating System (OS): Microsoft Windows 2003 Server Enterprise Edition
JVM Vendor: Oracle Corporation
JVM Version: Jrockit(R) 1.6.0_02 build R26.4.0-63 (32-bit)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H648897
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Davis Calibration
Calibration Label: 91H648897
Date of Calibration: 22-Sep-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supply 1
Power Analyzer pwr2
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91G643889
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Davis Calibration
Calibration Label: 91G643889
Date of Calibration: 23-Apr-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.0-7071d9e7
Setup Description: SUT Power Supplies 2,3
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5mm in front of chassis
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 3,716 24.5
90% 3,339 24.6
80% 2,998 24.4
70% 2,721 24.5
60% 2,484 24.6
50% 2,296 24.6
40% 2,107 24.4
30% 1,932 24.4
20% 1,755 24.4
10% 1,550 24.4
Active Idle 877 24.2
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 24.2 255
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,477,014
Calibration 2     14,520,749
Calibration 3     14,495,824
ssj_ops@calibrated=14,508,286
100% 99.5% 14,508,286 14,437,407
90% 90.0% 13,057,458 13,059,903
80% 80.0% 11,606,629 11,611,558
70% 70.0% 10,155,800 10,155,306
60% 60.0% 8,704,972 8,699,021
50% 50.0% 7,254,143 7,250,931
40% 40.0% 5,803,315 5,803,201
30% 30.0% 4,352,486 4,357,138
20% 20.0% 2,901,657 2,900,976
10% 10.0% 1,450,829 1,457,648
Active Idle   0 0

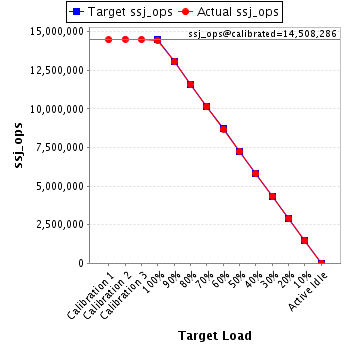

Graph of results
See the Aggregate Performance Report for additional details.
