Hewlett-Packard Company ProLiant DL170h G6 (2.93 GHz, Intel Xeon X5670 processor) ssj_ops@100% = 3,424,663
ssj_ops@100% per Host = 856,166
ssj_ops@100% per JVM = 142,694
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Apr 15, 2010
Hardware Availability: Jun-2010 Software Availability: Mar-2010 Publication: May 13, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,422,269
Calibration 2     3,442,267
Calibration 3     3,433,003
ssj_ops@calibrated=3,437,635
100% 99.6% 3,437,635 3,424,663
90% 89.9% 3,093,871 3,091,190
80% 80.0% 2,750,108 2,751,552
70% 70.0% 2,406,344 2,406,872
60% 59.8% 2,062,581 2,056,560
50% 50.1% 1,718,817 1,722,445
40% 40.0% 1,375,054 1,374,633
30% 30.0% 1,031,290 1,032,137
20% 20.0% 687,527 687,722
10% 9.9% 343,763 340,440
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 48 96 64.0 4 24
System Under Test
Shared Hardware
Shared Hardware
Enclosure: ProLiant h1000 G6
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 1200
Power Supply Details: HP part #: 570451-101
Network Switch: HP Procurve 6108
Network Switch Details: 8-Port Gigabit switch
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: HP h1000 Common Slot PS BP power supply enablement kit, HP Part#516136-B21
Comment: Network switch is a standalone device and is not included in the measured power.
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL4x170h G6
# of Identical Nodes: 4
Comment: System Under Test
Hardware per Node
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL170h G6 (2.93 GHz, Intel Xeon X5670 processor)
Form Factor: 1U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1 and 4 populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 60GB SSD 2.5" SATA, HP part #:572071-B21
Disk Controller: Integrated SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82576 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power saver enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: Used "start /AFFINITY [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 034 04/02/2010
Management Firmware Version: 4.20 1/13/10
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT notes
Management Firmware Settings
None
System Under Test Notes
Notes
none
Host Instance Summary
Host ssj_ops@100%
Node1 853,665
Node2 854,987
Node3 859,597
Node4 856,414
ssj_ops@100% 3,424,663
ssj_ops@100% per Host 856,166
ssj_ops@100% per JVM 142,694

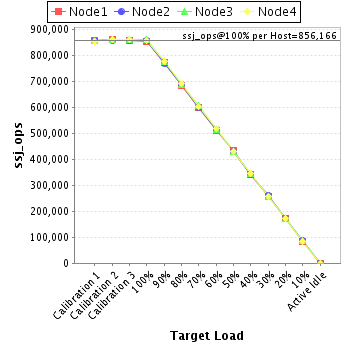

Graph of per-host results
Host 'Node1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     855,914
Calibration 2     860,987
Calibration 3     857,282
ssj_ops@calibrated=859,135
100% 99.4% 859,135 853,665
90% 89.8% 773,221 771,803
80% 79.8% 687,308 685,243
70% 69.8% 601,394 599,884
60% 59.6% 515,481 511,748
50% 50.3% 429,567 432,173
40% 39.9% 343,654 343,080
30% 29.8% 257,740 255,915
20% 20.1% 171,827 172,568
10% 9.8% 85,913 84,248
Active Idle   0 0

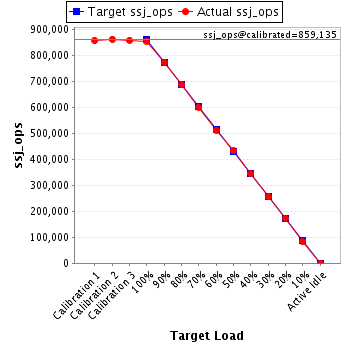

Graph of results
See the Host Performance Report for additional details.
Host 'Node2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     854,892
Calibration 2     858,193
Calibration 3     856,455
ssj_ops@calibrated=857,324
100% 99.7% 857,324 854,987
90% 89.8% 771,591 769,858
80% 80.2% 685,859 687,694
70% 69.9% 600,127 598,952
60% 59.9% 514,394 513,233
50% 49.9% 428,662 428,184
40% 39.9% 342,929 342,108
30% 30.4% 257,197 260,868
20% 20.0% 171,465 171,087
10% 10.0% 85,732 85,621
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Node3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     857,367
Calibration 2     861,613
Calibration 3     859,916
ssj_ops@calibrated=860,764
100% 99.9% 860,764 859,597
90% 89.9% 774,688 774,119
80% 79.8% 688,612 687,289
70% 70.4% 602,535 605,631
60% 59.7% 516,459 514,227
50% 50.0% 430,382 430,601
40% 40.1% 344,306 345,027
30% 30.0% 258,229 258,213
20% 19.8% 172,153 170,396
10% 10.0% 86,076 85,663
Active Idle   0 0

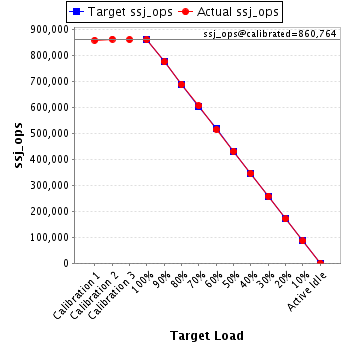

Graph of results
See the Host Performance Report for additional details.
Host 'Node4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     854,095
Calibration 2     861,474
Calibration 3     859,350
ssj_ops@calibrated=860,412
100% 99.5% 860,412 856,414
90% 90.1% 774,371 775,410
80% 80.3% 688,330 691,327
70% 70.0% 602,288 602,405
60% 60.1% 516,247 517,351
50% 50.1% 430,206 431,488
40% 40.0% 344,165 344,418
30% 29.9% 258,124 257,141
20% 20.2% 172,082 173,671
10% 9.9% 86,041 84,908
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
