Hewlett-Packard Company ProLiant DL170h G6 (2.93 GHz, Intel Xeon X5670 processor) ssj_ops@100% = 856,414
ssj_ops@100% per JVM = 142,736
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Apr 15, 2010
Hardware Availability: Jun-2010 Software Availability: Mar-2010 Publication: May 13, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     854,095
Calibration 2     861,474
Calibration 3     859,350
ssj_ops@calibrated=860,412
100% 99.5% 860,412 856,414
90% 90.1% 774,371 775,410
80% 80.3% 688,330 691,327
70% 70.0% 602,288 602,405
60% 60.1% 516,247 517,351
50% 50.1% 430,206 431,488
40% 40.0% 344,165 344,418
30% 29.9% 258,124 257,141
20% 20.2% 172,082 173,671
10% 9.9% 86,041 84,908
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL4x170h G6
# of Identical Nodes: 4
Comment: System Under Test
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL170h G6 (2.93 GHz, Intel Xeon X5670 processor)
Form Factor: 1U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots 1 and 4 populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 60GB SSD 2.5" SATA, HP part #:572071-B21
Disk Controller: Integrated SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82576 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: Used "start /AFFINITY [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 034 04/02/2010
Management Firmware Version: 4.20 1/13/10
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT notes
Management Firmware Settings
None
System Under Test Notes
Notes
none
JVM Instance Summary
JVM Instance ssj_ops@100%
Node4.001 150,516
Node4.002 137,102
Node4.003 137,974
Node4.004 154,566
Node4.005 138,153
Node4.006 138,104
ssj_ops@100% 856,414
ssj_ops@100% per JVM 142,736

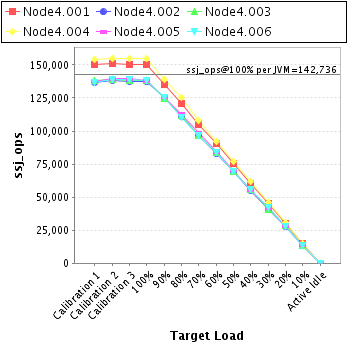

Graph of per-instance results
JVM 'Node4.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,323
Calibration 2     151,061
Calibration 3     150,630
ssj_ops@calibrated=150,845
100% 99.8% 150,845 150,516
90% 89.8% 135,761 135,534
80% 80.2% 120,676 121,022
70% 69.8% 105,592 105,244
60% 60.2% 90,507 90,855
50% 50.2% 75,423 75,772
40% 40.1% 60,338 60,467
30% 30.0% 45,254 45,233
20% 20.0% 30,169 30,147
10% 10.1% 15,085 15,274
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node4.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     136,935
Calibration 2     138,182
Calibration 3     137,255
ssj_ops@calibrated=137,718
100% 99.6% 137,718 137,102
90% 90.9% 123,946 125,142
80% 80.5% 110,175 110,827
70% 70.4% 96,403 96,926
60% 60.2% 82,631 82,843
50% 50.2% 68,859 69,198
40% 40.2% 55,087 55,299
30% 29.8% 41,315 41,033
20% 20.2% 27,544 27,871
10% 9.9% 13,772 13,597
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node4.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,148
Calibration 2     139,043
Calibration 3     138,060
ssj_ops@calibrated=138,551
100% 99.6% 138,551 137,974
90% 90.2% 124,696 124,958
80% 80.5% 110,841 111,471
70% 69.7% 96,986 96,541
60% 60.3% 83,131 83,520
50% 50.2% 69,276 69,613
40% 40.4% 55,421 56,022
30% 29.2% 41,565 40,486
20% 20.6% 27,710 28,539
10% 9.8% 13,855 13,612
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node4.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,882
Calibration 2     154,911
Calibration 3     155,084
ssj_ops@calibrated=154,997
100% 99.7% 154,997 154,566
90% 89.8% 139,498 139,222
80% 80.7% 123,998 125,131
70% 69.7% 108,498 108,094
60% 59.6% 92,998 92,407
50% 49.9% 77,499 77,301
40% 40.1% 61,999 62,138
30% 29.8% 46,499 46,133
20% 20.0% 30,999 31,033
10% 9.8% 15,500 15,137
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node4.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,790
Calibration 2     139,629
Calibration 3     139,635
ssj_ops@calibrated=139,632
100% 98.9% 139,632 138,153
90% 89.9% 125,669 125,485
80% 80.8% 111,706 112,760
70% 70.6% 97,742 98,649
60% 60.4% 83,779 84,284
50% 50.4% 69,816 70,374
40% 39.4% 55,853 55,056
30% 30.2% 41,890 42,145
20% 20.1% 27,926 28,092
10% 9.7% 13,963 13,608
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node4.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,017
Calibration 2     138,649
Calibration 3     138,687
ssj_ops@calibrated=138,668
100% 99.6% 138,668 138,104
90% 90.2% 124,801 125,069
80% 79.4% 110,934 110,117
70% 69.9% 97,068 96,951
60% 60.2% 83,201 83,443
50% 49.9% 69,334 69,229
40% 40.0% 55,467 55,435
30% 30.4% 41,600 42,112
20% 20.2% 27,734 27,990
10% 9.9% 13,867 13,679
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
