SPECpower_ssj2008
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| NEC Corporation Express5800/GT110b-S | SPECpower_ssj2008 = 1,499 overall ssj_ops/watt | ||||
| Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Single Node |
| Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Feb 26, 2010 |
| Hardware Availability: | Apr-2010 | Software Availability: | May-2009 | Publication: | May 13, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

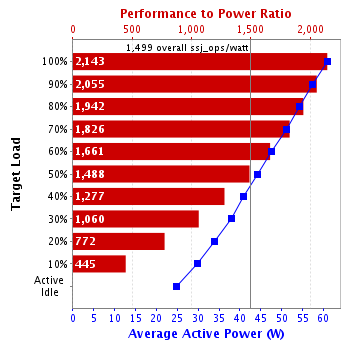

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 130,559 | 60.9 | 2,143 |
| 90% | 89.8% | 117,840 | 57.4 | 2,055 |
| 80% | 80.2% | 105,267 | 54.2 | 1,942 |
| 70% | 71.3% | 93,587 | 51.3 | 1,826 |
| 60% | 60.2% | 78,965 | 47.5 | 1,661 |
| 50% | 50.2% | 65,899 | 44.3 | 1,488 |
| 40% | 39.8% | 52,232 | 40.9 | 1,277 |
| 30% | 30.6% | 40,193 | 37.9 | 1,060 |
| 20% | 20.0% | 26,237 | 34.0 | 772 |
| 10% | 10.1% | 13,232 | 29.8 | 445 |
| Active Idle | 0 | 24.8 | 0 | |
| ∑ssj_ops / ∑power = | 1,499 | |||
| Set Identifier: | sut |
| Set Description: | Express5800/GT110b-S (Intel Core i3-540, 3.06 GHz) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | NEC Corporation |
| Model: | Express5800/GT110b-S |
| Form Factor: | Tower |
| CPU Name: | Intel Core i3-540 |
| CPU Characteristics: | Dual-Core, 3.06 GHz, 4 MB L3 Cache |
| CPU Frequency (MHz): | 3067 |
| CPU(s) Enabled: | 2 cores, 1 chip, 2 cores/chip |
| Hardware Threads: | 4 (2 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 4 |
| # and size of DIMM: | 2 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC3-10600E ECC CL9; slots DIMM1 and DIMM2 populated |
| Power Supply Quantity and Rating (W): | 1 x 250 |
| Power Supply Details: | TIGER POWER TFX-2582 |
| Disk Drive: | 1 x 50GB SSD SATA, NEC P/N:N8150-702 |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Integrated Intel 82574L Gigabit Ethernet Controller |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power saver |
| Operating System (OS): | Microsoft Windows Server 2008 Standard x64 Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64) |
| JVM Command-line Options: | -Xms1600m -Xmx1600m -Xns1400m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k -XXallocPrefetch=false -XXallocRedoPrefetch=false |
| JVM Affinity: | start /affinity [3,C] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 1.0.3107 |
| Management Firmware Version: | None |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | NEC Corporation |
| Model: | Express5800/R120a-2 |
| CPU Description: | Intel Xeon X5550 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2008 Standard Edition |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | BEA JRockit(R) (build R27.6.5-32_o-121899-1.6.0_14-20091001-2107-windows-ia32, compiled mode) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H928026 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Calibration Institute: | AIST (National Institute of Advanced Science and Technology) |
| Accredited by: | JQA (Japan Quality Assurance Organization) |
| Calibration Label: | 150-91977 |
| Date of Calibration: | 10-Aug-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 60.9 | 20.4 |
| 90% | 57.4 | 20.5 |
| 80% | 54.2 | 20.6 |
| 70% | 51.3 | 20.6 |
| 60% | 47.5 | 20.7 |
| 50% | 44.3 | 20.8 |
| 40% | 40.9 | 20.8 |
| 30% | 37.9 | 20.7 |
| 20% | 34.0 | 20.6 |
| 10% | 29.8 | 20.6 |
| Active Idle | 24.8 | 20.6 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 100V / 50 Hz / 1 phase / 2 wires | 20.4 | 52 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,691 | ||
| Calibration 2 | 131,102 | ||
| Calibration 3 | 131,385 | ||
| ssj_ops@calibrated=131,244 | |||
| 100% | 99.5% | 131,244 | 130,559 |
| 90% | 89.8% | 118,119 | 117,840 |
| 80% | 80.2% | 104,995 | 105,267 |
| 70% | 71.3% | 91,871 | 93,587 |
| 60% | 60.2% | 78,746 | 78,965 |
| 50% | 50.2% | 65,622 | 65,899 |
| 40% | 39.8% | 52,497 | 52,232 |
| 30% | 30.6% | 39,373 | 40,193 |
| 20% | 20.0% | 26,249 | 26,237 |
| 10% | 10.1% | 13,124 | 13,232 |
| Active Idle | 0 | 0 | |
