NEC Corporation Express5800/GT110b-S SPECpower_ssj2008 = 1,499 overall ssj_ops/watt
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Single Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: Feb 26, 2010
Hardware Availability: Apr-2010 Software Availability: May-2009 Publication: May 13, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 60.2 20.4
Calibration 2 60.8 20.4
Calibration 3 61.0 20.4
100% 60.9 20.4
90% 57.4 20.5
80% 54.2 20.6
70% 51.3 20.6
60% 47.5 20.7
50% 44.3 20.8
40% 40.9 20.8
30% 37.9 20.7
20% 34.0 20.6
10% 29.8 20.6
Active Idle 24.8 20.6

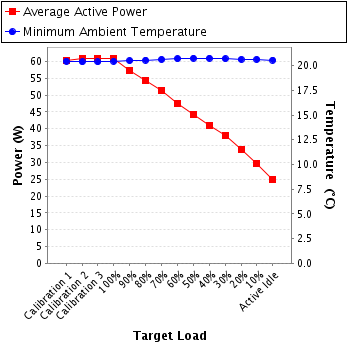

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H928026
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Science and Technology)
Accredited by: JQA (Japan Quality Assurance Organization)
Calibration Label: 150-91977
Date of Calibration: 10-Aug-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 100 150.0 0.610 1.0 0.986 60.2 0.4%
Calibration 2 100 150.0 0.615 1.0 0.986 60.8 0.4%
Calibration 3 100 150.0 0.618 1.0 0.986 61.0 0.4%
100% 99.8 150.0 0.619 1.0 0.986 60.9 0.4%
90% 100 150.0 0.584 1.0 0.981 57.4 0.4%
80% 100 150.0 0.554 1.0 0.976 54.2 0.4%
70% 100 150.0 0.527 1.0 0.971 51.3 0.4%
60% 101 150.0 0.490 1.0 0.965 47.5 0.5%
50% 101 150.0 0.459 1.0 0.960 44.3 0.5%
40% 101 150.0 0.426 1.0 0.957 40.9 0.5%
30% 100 150.0 0.396 1.0 0.955 37.9 0.6%
20% 100 150.0 0.357 1.0 0.948 34.0 0.6%
10% 101 150.0 0.314 1.0 0.942 29.8 0.7%
Active Idle 100 150.0 0.258 1.0 0.956 24.8 0.8%

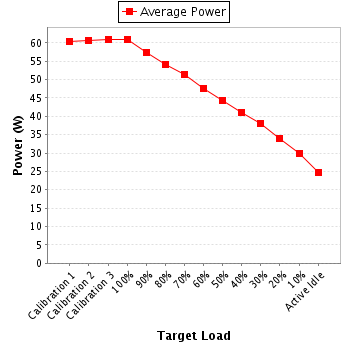

Power details for pwr1
