Hewlett-Packard Company ProLiant DL170h G6 (2.93 GHz, Intel Xeon X5670 processor) ssj_ops@100% = 3,444,415
ssj_ops@100% per Host = 861,104
ssj_ops@100% per JVM = 143,517
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Apr 5, 2010
Hardware Availability: Jun-2010 Software Availability: Sep-2009 Publication: Apr 21, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,454,515
Calibration 2     3,461,116
Calibration 3     3,454,692
ssj_ops@calibrated=3,457,904
100% 99.6% 3,457,904 3,444,415
90% 90.1% 3,112,114 3,115,945
80% 79.8% 2,766,323 2,760,924
70% 69.8% 2,420,533 2,414,137
60% 60.0% 2,074,742 2,075,666
50% 50.1% 1,728,952 1,732,619
40% 40.0% 1,383,162 1,381,944
30% 30.0% 1,037,371 1,037,640
20% 20.0% 691,581 691,265
10% 10.0% 345,790 346,756
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 48 96 64.0 4 24
System Under Test
Shared Hardware
Shared Hardware
Enclosure: ProLiant h1000 G6
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 1200
Power Supply Details: HP part #: 570451-101
Network Switch: HP Procurve 6108
Network Switch Details: 8-Port Gigabit switch
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: HP h1000 Common Slot PS BP power supply enablement kit, HP Part#516136-B21
Comment: Network switch is a standalone device and is not included in the measured power.
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL4x170h G6
# of Identical Nodes: 4
Comment: System Under Test
Hardware per Node
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL170h G6 (2.93 GHz, Intel Xeon X5670 processor)
Form Factor: 1U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3-10600E; slots 1 and 4 populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 60GB SSD 2.5" SATA, HP part #:572071-B21
Disk Controller: Integrated SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82576 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power saver enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: Used "start /AFFINITY [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 034 04/02/2010
Management Firmware Version: 4.20 1/13/10
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT notes
Management Firmware Settings
None
System Under Test Notes
Notes
none
Host Instance Summary
Host ssj_ops@100%
Node1 865,106
Node2 858,593
Node3 859,084
Node4 861,632
ssj_ops@100% 3,444,415
ssj_ops@100% per Host 861,104
ssj_ops@100% per JVM 143,517

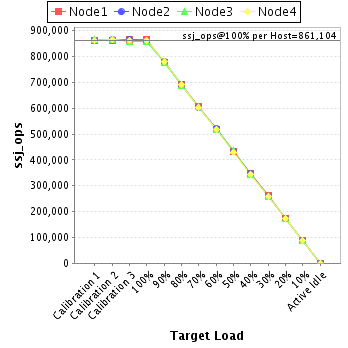

Graph of per-host results
Host 'Node1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     864,088
Calibration 2     863,411
Calibration 3     866,400
ssj_ops@calibrated=864,906
100% 100.0% 864,906 865,106
90% 90.1% 778,415 778,940
80% 79.9% 691,925 690,666
70% 70.0% 605,434 605,628
60% 60.1% 518,944 519,576
50% 50.1% 432,453 433,731
40% 40.0% 345,962 346,065
30% 30.3% 259,472 261,773
20% 20.1% 172,981 173,592
10% 10.0% 86,491 86,439
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Node2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     862,334
Calibration 2     864,533
Calibration 3     866,394
ssj_ops@calibrated=865,463
100% 99.2% 865,463 858,593
90% 90.1% 778,917 780,192
80% 80.0% 692,371 691,978
70% 69.6% 605,824 602,003
60% 60.1% 519,278 520,327
50% 49.9% 432,732 432,054
40% 40.0% 346,185 346,593
30% 29.9% 259,639 258,417
20% 20.0% 173,093 173,206
10% 10.0% 86,546 86,702
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Node3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     866,203
Calibration 2     867,416
Calibration 3     859,694
ssj_ops@calibrated=863,555
100% 99.5% 863,555 859,084
90% 90.1% 777,200 777,652
80% 79.7% 690,844 688,200
70% 70.0% 604,489 604,876
60% 59.9% 518,133 516,935
50% 50.6% 431,778 436,674
40% 39.8% 345,422 343,933
30% 30.0% 259,067 258,658
20% 19.9% 172,711 172,154
10% 10.0% 86,356 86,715
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

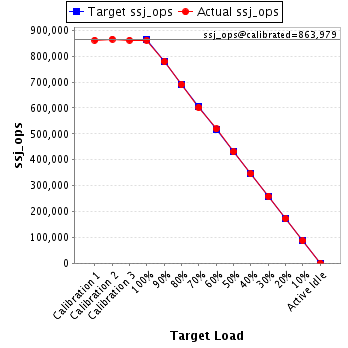

Host 'Node4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     861,889
Calibration 2     865,755
Calibration 3     862,203
ssj_ops@calibrated=863,979
100% 99.7% 863,979 861,632
90% 90.2% 777,582 779,160
80% 79.9% 691,184 690,080
70% 69.6% 604,786 601,629
60% 60.1% 518,388 518,828
50% 49.8% 431,990 430,160
40% 40.0% 345,592 345,352
30% 30.0% 259,194 258,792
20% 19.9% 172,796 172,314
10% 10.1% 86,398 86,900
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
