Hewlett-Packard Company ProLiant DL170h G6 (2.93 GHz, Intel Xeon X5670 processor) ssj_ops@100% = 859,084
ssj_ops@100% per JVM = 143,181
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Apr 5, 2010
Hardware Availability: Jun-2010 Software Availability: Sep-2009 Publication: Apr 21, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     866,203
Calibration 2     867,416
Calibration 3     859,694
ssj_ops@calibrated=863,555
100% 99.5% 863,555 859,084
90% 90.1% 777,200 777,652
80% 79.7% 690,844 688,200
70% 70.0% 604,489 604,876
60% 59.9% 518,133 516,935
50% 50.6% 431,778 436,674
40% 39.8% 345,422 343,933
30% 30.0% 259,067 258,658
20% 19.9% 172,711 172,154
10% 10.0% 86,356 86,715
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL4x170h G6
# of Identical Nodes: 4
Comment: System Under Test
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL170h G6 (2.93 GHz, Intel Xeon X5670 processor)
Form Factor: 1U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3-10600E; slots 1 and 4 populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 60GB SSD 2.5" SATA, HP part #:572071-B21
Disk Controller: Integrated SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82576 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: Used "start /AFFINITY [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 034 04/02/2010
Management Firmware Version: 4.20 1/13/10
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT notes
Management Firmware Settings
None
System Under Test Notes
Notes
none
JVM Instance Summary
JVM Instance ssj_ops@100%
Node3.001 142,762
Node3.002 142,213
Node3.003 144,121
Node3.004 140,704
Node3.005 144,431
Node3.006 144,853
ssj_ops@100% 859,084
ssj_ops@100% per JVM 143,181

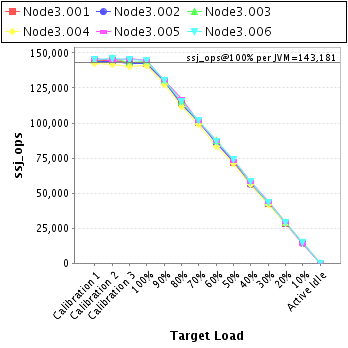

Graph of per-instance results
JVM 'Node3.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,650
Calibration 2     144,651
Calibration 3     143,059
ssj_ops@calibrated=143,855
100% 99.2% 143,855 142,762
90% 90.2% 129,469 129,766
80% 79.8% 115,084 114,852
70% 69.5% 100,698 100,027
60% 60.2% 86,313 86,616
50% 50.2% 71,927 72,208
40% 39.6% 57,542 56,945
30% 29.7% 43,156 42,767
20% 19.8% 28,771 28,516
10% 10.3% 14,385 14,866
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node3.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,617
Calibration 2     144,122
Calibration 3     142,327
ssj_ops@calibrated=143,225
100% 99.3% 143,225 142,213
90% 90.3% 128,902 129,269
80% 79.3% 114,580 113,531
70% 70.8% 100,257 101,345
60% 59.6% 85,935 85,373
50% 50.8% 71,612 72,753
40% 39.2% 57,290 56,208
30% 30.5% 42,967 43,639
20% 20.0% 28,645 28,645
10% 10.1% 14,322 14,395
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node3.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,248
Calibration 2     146,245
Calibration 3     143,392
ssj_ops@calibrated=144,818
100% 99.5% 144,818 144,121
90% 90.2% 130,336 130,572
80% 79.5% 115,855 115,173
70% 69.8% 101,373 101,121
60% 60.3% 86,891 87,302
50% 50.6% 72,409 73,271
40% 40.2% 57,927 58,174
30% 29.8% 43,445 43,150
20% 19.9% 28,964 28,766
10% 10.0% 14,482 14,500
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node3.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     142,418
Calibration 2     141,796
Calibration 3     140,020
ssj_ops@calibrated=140,908
100% 99.9% 140,908 140,704
90% 90.2% 126,817 127,162
80% 79.4% 112,726 111,838
70% 70.3% 98,636 99,128
60% 59.2% 84,545 83,467
50% 50.7% 70,454 71,477
40% 39.7% 56,363 55,917
30% 29.9% 42,272 42,115
20% 20.0% 28,182 28,229
10% 10.0% 14,091 14,104
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node3.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,747
Calibration 2     144,919
Calibration 3     145,710
ssj_ops@calibrated=145,315
100% 99.4% 145,315 144,431
90% 89.7% 130,783 130,394
80% 80.6% 116,252 117,156
70% 69.6% 101,720 101,205
60% 59.9% 87,189 87,081
50% 50.3% 72,657 73,092
40% 40.0% 58,126 58,193
30% 30.2% 43,594 43,877
20% 20.1% 29,063 29,159
10% 9.7% 14,531 14,041
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node3.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,524
Calibration 2     145,684
Calibration 3     145,186
ssj_ops@calibrated=145,435
100% 99.6% 145,435 144,853
90% 89.7% 130,892 130,489
80% 79.5% 116,348 115,650
70% 70.2% 101,805 102,050
60% 59.9% 87,261 87,096
50% 50.8% 72,718 73,873
40% 40.2% 58,174 58,496
30% 29.6% 43,631 43,110
20% 19.8% 29,087 28,838
10% 10.2% 14,544 14,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
