SPECpower_ssj2008
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Acer Incorporated Gateway GT350 F1 | SPECpower_ssj2008 = 1,630 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | San Jose, CA, USA | Test Date: | Mar 16, 2010 |
| Hardware Availability: | May-2010 | Software Availability: | Jun-2009 | Publication: | Apr 21, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

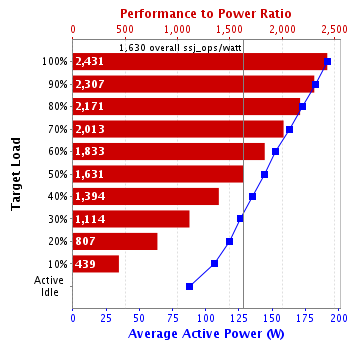

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 465,545 | 192 | 2,431 |
| 90% | 90.0% | 421,050 | 183 | 2,307 |
| 80% | 80.2% | 375,223 | 173 | 2,171 |
| 70% | 70.1% | 327,857 | 163 | 2,013 |
| 60% | 59.8% | 279,784 | 153 | 1,833 |
| 50% | 50.2% | 234,893 | 144 | 1,631 |
| 40% | 40.3% | 188,612 | 135 | 1,394 |
| 30% | 30.1% | 140,584 | 126 | 1,114 |
| 20% | 20.3% | 94,887 | 118 | 807 |
| 10% | 10.0% | 46,744 | 106 | 439 |
| Active Idle | 0 | 87.7 | 0 | |
| ∑ssj_ops / ∑power = | 1,630 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Gateway GT350 F1 |
| Form Factor: | 4U |
| CPU Name: | Intel Xeon L5530 |
| CPU Characteristics: | Quad-Core, 2.40GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2400 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8.0 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC3-10600E; slots 1A and 2A are populated on each processor |
| Power Supply Quantity and Rating (W): | 1 x 720 |
| Power Supply Details: | Supermicro PWS-721P-1R |
| Disk Drive: | 1 x Intel X25-E Extreme 64 GB SLC SSD - SSDSA2SH064G1GC |
| Disk Controller: | Intel ICH10R SATA 3.0Gbps Controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Intel 82576 Gigabit Ethernet |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Windows Server 2008 x64, Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms1600m -Xmx1600m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k |
| JVM Affinity: | start /affinity [0xF, 0xF0, 0xF00, 0xF000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | D11 03/08/2010 |
| Management Firmware Version: | 1.00 03/15/2010 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | SUT |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Gateway GR160 F1 |
| CPU Description: | Intel Xeon E5504 |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2008 x64, Enterprise Edition SP2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H520530 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | SE-Laboratories |
| Calibration Label: | C56-0066 |
| Date of Calibration: | 22-Dec-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 192 | 21.4 |
| 90% | 183 | 21.4 |
| 80% | 173 | 21.1 |
| 70% | 163 | 21.0 |
| 60% | 153 | 21.1 |
| 50% | 144 | 21.1 |
| 40% | 135 | 21.0 |
| 30% | 126 | 21.0 |
| 20% | 118 | 20.9 |
| 10% | 106 | 20.8 |
| Active Idle | 87.7 | 20.8 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 20.8 | 26 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 465,596 | ||
| Calibration 2 | 466,267 | ||
| Calibration 3 | 469,358 | ||
| ssj_ops@calibrated=467,812 | |||
| 100% | 99.5% | 467,812 | 465,545 |
| 90% | 90.0% | 421,031 | 421,050 |
| 80% | 80.2% | 374,250 | 375,223 |
| 70% | 70.1% | 327,469 | 327,857 |
| 60% | 59.8% | 280,687 | 279,784 |
| 50% | 50.2% | 233,906 | 234,893 |
| 40% | 40.3% | 187,125 | 188,612 |
| 30% | 30.1% | 140,344 | 140,584 |
| 20% | 20.3% | 93,562 | 94,887 |
| 10% | 10.0% | 46,781 | 46,744 |
| Active Idle | 0 | 0 | |
