Acer Incorporated Gateway GT350 F1 SPECpower_ssj2008 = 1,630 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: San Jose, CA, USA Test Date: Mar 16, 2010
Hardware Availability: May-2010 Software Availability: Jun-2009 Publication: Apr 21, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 193 21.1
Calibration 2 193 20.9
Calibration 3 193 21.1
100% 192 21.4
90% 183 21.4
80% 173 21.1
70% 163 21.0
60% 153 21.1
50% 144 21.1
40% 135 21.0
30% 126 21.0
20% 118 20.9
10% 106 20.8
Active Idle 87.7 20.8

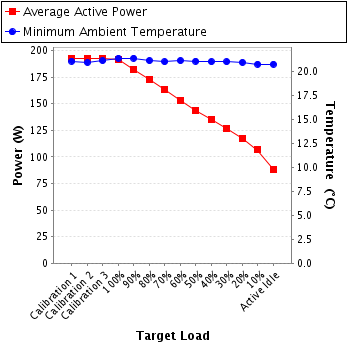

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H520530
Connectivity: RS232
Input Connection: Default
Calibration Institute: NIST
Accredited by: SE-Laboratories
Calibration Label: C56-0066
Date of Calibration: 22-Dec-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 208 300.0 0.972 2.0 0.953 193 0.5%
Calibration 2 208 300.0 0.972 2.0 0.953 193 0.5%
Calibration 3 208 300.0 0.972 2.0 0.953 193 0.5%
100% 208 300.0 0.967 2.0 0.953 192 0.5%
90% 208 300.0 0.925 2.0 0.949 183 0.5%
80% 208 300.0 0.879 2.0 0.945 173 0.5%
70% 208 300.0 0.833 2.0 0.941 163 0.5%
60% 208 300.0 0.784 2.0 0.936 153 0.6%
50% 208 300.0 0.743 2.0 0.931 144 0.6%
40% 208 300.0 0.703 2.0 0.926 135 0.6%
30% 208 300.0 0.660 2.0 0.919 126 0.7%
20% 208 300.0 0.619 2.0 0.912 118 0.7%
10% 208 300.0 0.568 2.0 0.900 106 0.8%
Active Idle 208 300.0 0.479 2.0 0.879 87.7 0.9%

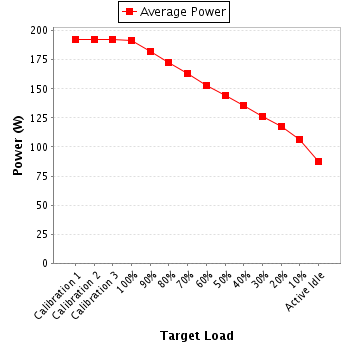

Power details for pwr1
