SPECpower_ssj2008
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3550 M3 | SPECpower_ssj2008 = 2,843 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Nangang, Taipei, Taiwan | Test Date: | Mar 9, 2010 |
| Hardware Availability: | Jun-2010 | Software Availability: | Oct-2009 | Publication: | Apr 7, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

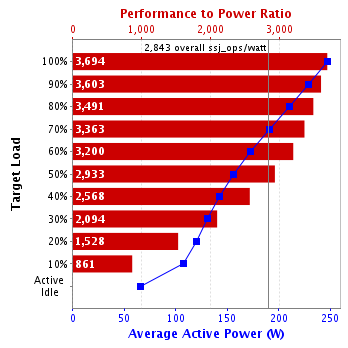

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 912,178 | 247 | 3,694 |
| 90% | 90.1% | 825,710 | 229 | 3,603 |
| 80% | 80.2% | 735,396 | 211 | 3,491 |
| 70% | 70.0% | 641,449 | 191 | 3,363 |
| 60% | 60.3% | 553,056 | 173 | 3,200 |
| 50% | 50.0% | 458,004 | 156 | 2,933 |
| 40% | 40.0% | 366,302 | 143 | 2,568 |
| 30% | 29.9% | 274,137 | 131 | 2,094 |
| 20% | 20.0% | 183,593 | 120 | 1,528 |
| 10% | 10.1% | 92,523 | 107 | 861 |
| Active Idle | 0 | 66.0 | 0 | |
| ∑ssj_ops / ∑power = | 2,843 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x3550 M3 |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon X5670 |
| CPU Characteristics: | Six-Core, 2.93GHz, 12MB L3 Cache |
| CPU Frequency (MHz): | 2933 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 12 |
| # and size of DIMM: | 6 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC3L-10600R ECC; slots 3, 6, 9, 12, 15 and 18 populated |
| Power Supply Quantity and Rating (W): | 1 x 675 |
| Power Supply Details: | IBM P/N 46M1075 |
| Disk Drive: | 1 x 50GB SATA SSD, IBM Feature code 5197 |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Integrated Broadcom NetXtreme II Gigabit NIC |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (See SUT Note) |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise Edition x64 |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build pwa6460sr5-20090529_04(SR5)) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F, F0, F00, F000, F0000, F00000] |
| JVM Instances: | 6 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | D6E145W |
| Management Firmware Version: | YUOO57G |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM NetVista |
| CPU Description: | Intel Pentium 4 2.4G |
| Memory amount (GB): | 1 |
| Software | |
|---|---|
| Operating System (OS): | Windows XP Professional SP3 |
| JVM Vendor: | IBM Corporation |
| JVM Version: | J9 VM(build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows XP x86-32) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. LTD |
| Model: | WT210 |
| Serial Number: | 91H245648 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 09-04-BAC-150-02 |
| Date of Calibration: | 13-Apr-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.9-49c8760c |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main air intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 247 | 23.6 |
| 90% | 229 | 23.6 |
| 80% | 211 | 23.6 |
| 70% | 191 | 23.7 |
| 60% | 173 | 23.8 |
| 50% | 156 | 23.9 |
| 40% | 143 | 23.6 |
| 30% | 131 | 23.4 |
| 20% | 120 | 23.3 |
| 10% | 107 | 23.2 |
| Active Idle | 66.0 | 23.1 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 23.1 | 63 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 914,823 | ||
| Calibration 2 | 915,921 | ||
| Calibration 3 | 917,120 | ||
| ssj_ops@calibrated=916,521 | |||
| 100% | 99.5% | 916,521 | 912,178 |
| 90% | 90.1% | 824,869 | 825,710 |
| 80% | 80.2% | 733,217 | 735,396 |
| 70% | 70.0% | 641,564 | 641,449 |
| 60% | 60.3% | 549,912 | 553,056 |
| 50% | 50.0% | 458,260 | 458,004 |
| 40% | 40.0% | 366,608 | 366,302 |
| 30% | 29.9% | 274,956 | 274,137 |
| 20% | 20.0% | 183,304 | 183,593 |
| 10% | 10.1% | 91,652 | 92,523 |
| Active Idle | 0 | 0 | |
