IBM Corporation IBM System x3550 M3 ssj_ops@100% = 912,178
ssj_ops@100% per JVM = 152,030
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Nangang, Taipei, Taiwan Test Date: Mar 9, 2010
Hardware Availability: Jun-2010 Software Availability: Oct-2009 Publication: Apr 7, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     914,823
Calibration 2     915,921
Calibration 3     917,120
ssj_ops@calibrated=916,521
100% 99.5% 916,521 912,178
90% 90.1% 824,869 825,710
80% 80.2% 733,217 735,396
70% 70.0% 641,564 641,449
60% 60.3% 549,912 553,056
50% 50.0% 458,260 458,004
40% 40.0% 366,608 366,302
30% 29.9% 274,956 274,137
20% 20.0% 183,304 183,593
10% 10.1% 91,652 92,523
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3550 M3
Form Factor: 1U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93GHz, 12MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600R ECC; slots 3, 6, 9, 12, 15 and 18 populated
Power Supply Quantity and Rating (W): 1 x 675
Power Supply Details: IBM P/N 46M1075
Disk Drive: 1 x 50GB SATA SSD, IBM Feature code 5197
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Broadcom NetXtreme II Gigabit NIC
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (See SUT Note)
Operating System (OS): Microsoft Windows Server 2008 Enterprise Edition x64
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build pwa6460sr5-20090529_04(SR5))
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F, F0, F00, F000, F0000, F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: D6E145W
Management Firmware Version: YUOO57G
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-K0KBNJ9AB86.001 151,988
WIN-K0KBNJ9AB86.002 146,999
WIN-K0KBNJ9AB86.003 152,101
WIN-K0KBNJ9AB86.004 153,530
WIN-K0KBNJ9AB86.005 151,889
WIN-K0KBNJ9AB86.006 155,671
ssj_ops@100% 912,178
ssj_ops@100% per JVM 152,030

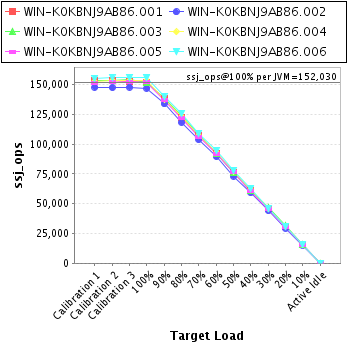

Graph of per-instance results
JVM 'WIN-K0KBNJ9AB86.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,844
Calibration 2     153,095
Calibration 3     152,591
ssj_ops@calibrated=152,843
100% 99.4% 152,843 151,988
90% 90.8% 137,559 138,719
80% 80.0% 122,275 122,245
70% 70.3% 106,990 107,441
60% 60.3% 91,706 92,236
50% 49.9% 76,422 76,337
40% 40.0% 61,137 61,195
30% 30.1% 45,853 46,054
20% 20.1% 30,569 30,769
10% 10.1% 15,284 15,509
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K0KBNJ9AB86.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     147,913
Calibration 2     147,478
Calibration 3     148,020
ssj_ops@calibrated=147,749
100% 99.5% 147,749 146,999
90% 90.6% 132,974 133,800
80% 80.1% 118,199 118,417
70% 70.2% 103,424 103,703
60% 60.7% 88,649 89,629
50% 49.6% 73,875 73,232
40% 40.0% 59,100 59,118
30% 29.8% 44,325 44,074
20% 20.0% 29,550 29,524
10% 10.1% 14,775 14,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K0KBNJ9AB86.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,462
Calibration 2     153,520
Calibration 3     154,104
ssj_ops@calibrated=153,812
100% 98.9% 153,812 152,101
90% 89.8% 138,431 138,119
80% 80.6% 123,050 123,911
70% 70.2% 107,668 107,986
60% 60.0% 92,287 92,340
50% 49.7% 76,906 76,424
40% 39.8% 61,525 61,154
30% 30.4% 46,144 46,827
20% 20.5% 30,762 31,471
10% 10.1% 15,381 15,558
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K0KBNJ9AB86.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,569
Calibration 2     153,766
Calibration 3     153,828
ssj_ops@calibrated=153,797
100% 99.8% 153,797 153,530
90% 89.7% 138,417 137,931
80% 80.4% 123,038 123,593
70% 69.6% 107,658 107,119
60% 60.2% 92,278 92,613
50% 50.4% 76,899 77,450
40% 40.2% 61,519 61,789
30% 29.7% 46,139 45,635
20% 20.0% 30,759 30,824
10% 10.0% 15,380 15,350
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K0KBNJ9AB86.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,648
Calibration 2     151,842
Calibration 3     152,315
ssj_ops@calibrated=152,078
100% 99.9% 152,078 151,889
90% 90.1% 136,871 137,021
80% 80.0% 121,663 121,617
70% 69.8% 106,455 106,148
60% 60.3% 91,247 91,760
50% 50.3% 76,039 76,424
40% 39.9% 60,831 60,676
30% 29.8% 45,624 45,284
20% 20.0% 30,416 30,416
10% 10.3% 15,208 15,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-K0KBNJ9AB86.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,388
Calibration 2     156,220
Calibration 3     156,262
ssj_ops@calibrated=156,241
100% 99.6% 156,241 155,671
90% 89.7% 140,617 140,119
80% 80.4% 124,993 125,613
70% 69.8% 109,369 109,052
60% 60.5% 93,744 94,478
50% 50.0% 78,120 78,136
40% 39.9% 62,496 62,371
30% 29.6% 46,872 46,263
20% 19.6% 31,248 30,590
10% 9.9% 15,624 15,466
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
