SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY TX100 S1 (Intel Xeon L3360) | SPECpower_ssj2008 = 1,500 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Paderborn, NRW, Germany | Test Date: | Jun 19, 2009 |
| Hardware Availability: | Aug-2009 | Software Availability: | May-2009 | Publication: | Jul 15, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

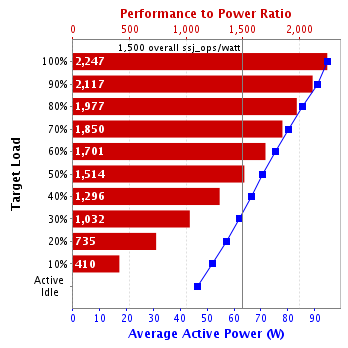

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.3% | 212,779 | 94.7 | 2,247 |
| 90% | 90.1% | 193,029 | 91.2 | 2,117 |
| 80% | 79.0% | 169,252 | 85.6 | 1,977 |
| 70% | 69.4% | 148,628 | 80.3 | 1,850 |
| 60% | 59.9% | 128,358 | 75.5 | 1,701 |
| 50% | 50.0% | 107,052 | 70.7 | 1,514 |
| 40% | 40.2% | 86,012 | 66.4 | 1,296 |
| 30% | 29.9% | 63,953 | 62.0 | 1,032 |
| 20% | 19.6% | 42,036 | 57.2 | 735 |
| 10% | 10.0% | 21,366 | 52.1 | 410 |
| Active Idle | 0 | 46.2 | 0 | |
| ∑ssj_ops / ∑power = | 1,500 | |||
| Set Identifier: | SUT |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY TX100 S1 (Intel Xeon L3360) |
| Form Factor: | Tower |
| CPU Name: | Intel Xeon L3360 |
| CPU Characteristics: | 2.83GHz, 2x6MB L2 cache, 1333MHz system bus |
| CPU Frequency (MHz): | 2833 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 4 (1 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC2-6400E ECC CL6; slots 1A, 1B populated |
| Power Supply Quantity and Rating (W): | 1 x 300 |
| Power Supply Details: | Fujitsu Technology Solutions S26113-E548-V50-01 |
| Disk Drive: | 1 x Seagate (3.5", SATA, 250GB, 7.2krpm) |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Intel 82566DM-2 Gigabit Network Connection (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled ("Balanced" power scheme) |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition + SP2 |
| OS Version: | Version 6.0.6002 Service Pack 2 Build 6002 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64) |
| JVM Command-line Options: | -Xms1625m -Xmx1625m -Xns1400m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k |
| JVM Affinity: | start /affinity [0x3,0xC] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1625 |
| JVM Maximum Heap (MB): | 1625 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 1.01 |
| Management Firmware Version: | None |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY RX100 S3 |
| CPU Description: | Pentium D 920 |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 Enterprise Edition + SP1 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | ZES Zimmer Electronic Systems GmbH |
| Model: | LMG95 |
| Serial Number: | 11780806 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Calibration Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | ZES Zimmer Electronic Systems GmbH |
| Calibration Label: | 11780806.1f |
| Date of Calibration: | 25-Jun-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | SUT PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 94.7 | 22.2 |
| 90% | 91.2 | 22.3 |
| 80% | 85.6 | 22.3 |
| 70% | 80.3 | 22.4 |
| 60% | 75.5 | 22.4 |
| 50% | 70.7 | 22.5 |
| 40% | 66.4 | 22.6 |
| 30% | 62.0 | 22.6 |
| 20% | 57.2 | 22.6 |
| 10% | 52.1 | 22.5 |
| Active Idle | 46.2 | 22.5 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 230V / 50 Hz / 1 phase / 2 wires | 22.2 | 117 |

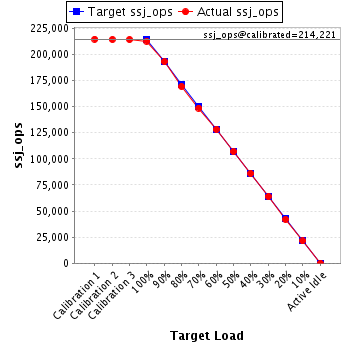

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 214,600 | ||
| Calibration 2 | 214,245 | ||
| Calibration 3 | 214,197 | ||
| ssj_ops@calibrated=214,221 | |||
| 100% | 99.3% | 214,221 | 212,779 |
| 90% | 90.1% | 192,799 | 193,029 |
| 80% | 79.0% | 171,377 | 169,252 |
| 70% | 69.4% | 149,955 | 148,628 |
| 60% | 59.9% | 128,533 | 128,358 |
| 50% | 50.0% | 107,111 | 107,052 |
| 40% | 40.2% | 85,689 | 86,012 |
| 30% | 29.9% | 64,266 | 63,953 |
| 20% | 19.6% | 42,844 | 42,036 |
| 10% | 10.0% | 21,422 | 21,366 |
| Active Idle | 0 | 0 | |
