SPECpower_ssj2008
Host 'WIN-4ZJRZD08QT7' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY TX100 S1 (Intel Xeon L3360) | ssj_ops@100% = 212,779 ssj_ops@100% per JVM = 106,389 |
||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Paderborn, NRW, Germany | Test Date: | Jun 19, 2009 |
| Hardware Availability: | Aug-2009 | Software Availability: | May-2009 | Publication: | Jul 15, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 214,600 | ||
| Calibration 2 | 214,245 | ||
| Calibration 3 | 214,197 | ||
| ssj_ops@calibrated=214,221 | |||
| 100% | 99.3% | 214,221 | 212,779 |
| 90% | 90.1% | 192,799 | 193,029 |
| 80% | 79.0% | 171,377 | 169,252 |
| 70% | 69.4% | 149,955 | 148,628 |
| 60% | 59.9% | 128,533 | 128,358 |
| 50% | 50.0% | 107,111 | 107,052 |
| 40% | 40.2% | 85,689 | 86,012 |
| 30% | 29.9% | 64,266 | 63,953 |
| 20% | 19.6% | 42,844 | 42,036 |
| 10% | 10.0% | 21,422 | 21,366 |
| Active Idle | 0 | 0 | |
| Set Identifier: | SUT |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY TX100 S1 (Intel Xeon L3360) |
| Form Factor: | Tower |
| CPU Name: | Intel Xeon L3360 |
| CPU Characteristics: | 2.83GHz, 2x6MB L2 cache, 1333MHz system bus |
| CPU Frequency (MHz): | 2833 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 4 (1 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC2-6400E ECC CL6; slots 1A, 1B populated |
| Power Supply Quantity and Rating (W): | 1 x 300 |
| Power Supply Details: | Fujitsu Technology Solutions S26113-E548-V50-01 |
| Disk Drive: | 1 x Seagate (3.5", SATA, 250GB, 7.2krpm) |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Intel 82566DM-2 Gigabit Network Connection (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled ("Balanced" power scheme) |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition + SP2 |
| OS Version: | Version 6.0.6002 Service Pack 2 Build 6002 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64) |
| JVM Command-line Options: | -Xms1625m -Xmx1625m -Xns1400m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k |
| JVM Affinity: | start /affinity [0x3,0xC] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1625 |
| JVM Maximum Heap (MB): | 1625 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 1.01 |
| Management Firmware Version: | None |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

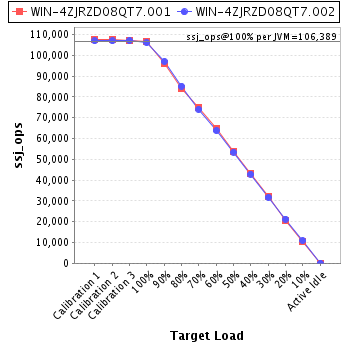

| JVM Instance | ssj_ops@100% |
|---|---|
| WIN-4ZJRZD08QT7.001 | 106,718 |
| WIN-4ZJRZD08QT7.002 | 106,061 |
| ssj_ops@100% | 212,779 |
| ssj_ops@100% per JVM | 106,389 |

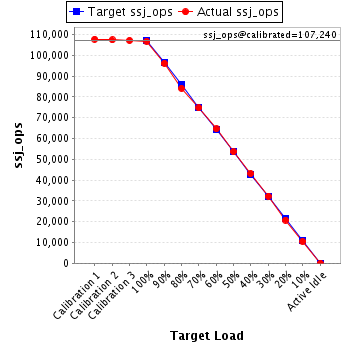

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 107,716 | ||
| Calibration 2 | 107,331 | ||
| Calibration 3 | 107,148 | ||
| ssj_ops@calibrated=107,240 | |||
| 100% | 99.5% | 107,240 | 106,718 |
| 90% | 89.6% | 96,516 | 96,064 |
| 80% | 78.4% | 85,792 | 84,108 |
| 70% | 69.6% | 75,068 | 74,679 |
| 60% | 60.3% | 64,344 | 64,618 |
| 50% | 50.0% | 53,620 | 53,576 |
| 40% | 40.2% | 42,896 | 43,159 |
| 30% | 30.1% | 32,172 | 32,258 |
| 20% | 19.4% | 21,448 | 20,775 |
| 10% | 9.8% | 10,724 | 10,491 |
| Active Idle | 0 | 0 | |

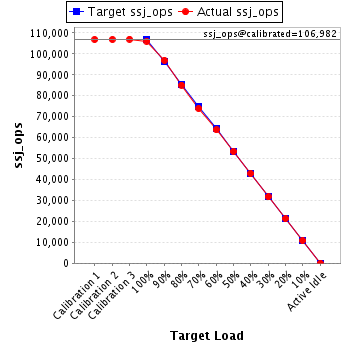

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 106,884 | ||
| Calibration 2 | 106,915 | ||
| Calibration 3 | 107,049 | ||
| ssj_ops@calibrated=106,982 | |||
| 100% | 99.1% | 106,982 | 106,061 |
| 90% | 90.6% | 96,284 | 96,964 |
| 80% | 79.6% | 85,585 | 85,145 |
| 70% | 69.1% | 74,887 | 73,949 |
| 60% | 59.6% | 64,189 | 63,740 |
| 50% | 50.0% | 53,491 | 53,476 |
| 40% | 40.1% | 42,793 | 42,853 |
| 30% | 29.6% | 32,095 | 31,695 |
| 20% | 19.9% | 21,396 | 21,261 |
| 10% | 10.2% | 10,698 | 10,874 |
| Active Idle | 0 | 0 | |
