SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL785 G5 (2.50GHz, AMD Opteron 8381 HE) | SPECpower_ssj2008 = 905 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Cupertino, CA, USA | Test Date: | Apr 15, 2009 |
| Hardware Availability: | Jun-2009 | Software Availability: | May-2009 | Publication: | Jun 3, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

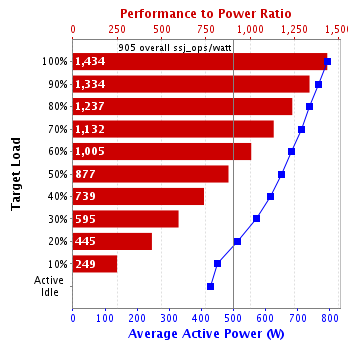

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 1,136,736 | 793 | 1,434 |
| 90% | 89.5% | 1,021,777 | 766 | 1,334 |
| 80% | 80.0% | 912,556 | 738 | 1,237 |
| 70% | 70.6% | 805,638 | 712 | 1,132 |
| 60% | 60.0% | 684,636 | 681 | 1,005 |
| 50% | 49.9% | 569,095 | 649 | 877 |
| 40% | 39.8% | 453,955 | 614 | 739 |
| 30% | 29.9% | 341,468 | 573 | 595 |
| 20% | 20.0% | 228,430 | 513 | 445 |
| 10% | 9.8% | 112,283 | 451 | 249 |
| Active Idle | 0 | 430 | 0 | |
| ∑ssj_ops / ∑power = | 905 | |||
| Set Identifier: | sut |
| Set Description: | ProLiant DL785 G5 (2.50GHz, AMD Opteron 8381 HE) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant DL785 G5 (2.50GHz, AMD Opteron 8381 HE) |
| Form Factor: | 7U |
| CPU Name: | Quad-Core AMD Opteron(r) Processor 8381 HE |
| CPU Characteristics: | Quad-Core, 2.5GHz, 6MB L3 Cache |
| CPU Frequency (MHz): | 2500 |
| CPU(s) Enabled: | 32 cores, 8 chips, 4 cores/chip |
| Hardware Threads: | 32 (1 / core) |
| CPU(s) Orderable: | 4,8 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per chip |
| Tertiary Cache: | 6 MB I+D off chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 32 |
| # and size of DIMM: | 16 x 2048 MB |
| Memory Details: | 4GB Reg PC2-5300 2x2GB LP Kit 483401-B21; slots 1 and 2 populated on each board |
| Power Supply Quantity and Rating (W): | 3 x 1200 |
| Power Supply Details: | HP P/N 437572-B21 |
| Disk Drive: | 1 x 73GB 10K RPM SAS |
| Disk Controller: | Integrated P400i SmartArray controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC373i NIC |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | None |
| Optical Drives: | Yes |
| Other Hardware: | none |
| Software | |
|---|---|
| Power Management: | HP Dynamic Power Regulator enabled |
| Operating System (OS): | Red Hat Enterprise Linux 5.3 |
| OS Version: | 2.6.18-128.el5 (64-bit) |
| Filesystem: | ext3 |
| JVM Vendor: | Oracle |
| JVM Version: | Oracle JRockit(R) (build P28.0.0-8-109238-1.6.0_05-20090130-1405-linux-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3600m -Xmx3600m -Xns3100m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k |
| JVM Affinity: | numactl --membind=N --cpunodebind=N (N from 0 to 7) |
| JVM Instances: | 16 |
| JVM Initial Heap (MB): | 3600 |
| JVM Maximum Heap (MB): | 3600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | A15 05/05/2009 |
| Management Firmware Version: | 1.70 |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | Compaq nc6220 |
| CPU Description: | Pentium M |
| Memory amount (GB): | 0.5 |
| Software | |
|---|---|
| Operating System (OS): | Ubuntu 8.10 Intrepid Ibex |
| JVM Vendor: | Sun Microsystems |
| JVM Version: | 1.6.0_u10 |
| CCS Version: | 1.1.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91FB02050 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Instrument Calibration Service |
| Calibration Label: | 67961 |
| Date of Calibration: | 02-Dec-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-62d59d34 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | OS Supplied |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 793 | 21.4 |
| 90% | 766 | 21.4 |
| 80% | 738 | 21.4 |
| 70% | 712 | 21.4 |
| 60% | 681 | 21.4 |
| 50% | 649 | 21.4 |
| 40% | 614 | 21.4 |
| 30% | 573 | 21.4 |
| 20% | 513 | 21.4 |
| 10% | 451 | 21.4 |
| Active Idle | 430 | 21.4 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 21.4 | 72 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,162,742 | ||
| Calibration 2 | 1,150,070 | ||
| Calibration 3 | 1,132,245 | ||
| ssj_ops@calibrated=1,141,157 | |||
| 100% | 99.6% | 1,141,157 | 1,136,736 |
| 90% | 89.5% | 1,027,041 | 1,021,777 |
| 80% | 80.0% | 912,926 | 912,556 |
| 70% | 70.6% | 798,810 | 805,638 |
| 60% | 60.0% | 684,694 | 684,636 |
| 50% | 49.9% | 570,579 | 569,095 |
| 40% | 39.8% | 456,463 | 453,955 |
| 30% | 29.9% | 342,347 | 341,468 |
| 20% | 20.0% | 228,231 | 228,430 |
| 10% | 9.8% | 114,116 | 112,283 |
| Active Idle | 0 | 0 | |
