Hewlett-Packard Company ProLiant DL785 G5 (2.50GHz, AMD Opteron 8381 HE) ssj_ops@100% = 1,136,736
ssj_ops@100% per JVM = 142,092
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Cupertino, CA, USA Test Date: Apr 15, 2009
Hardware Availability: Jun-2009 Software Availability: May-2009 Publication: Jun 3, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,162,742
Calibration 2     1,150,070
Calibration 3     1,132,245
ssj_ops@calibrated=1,141,157
100% 99.6% 1,141,157 1,136,736
90% 89.5% 1,027,041 1,021,777
80% 80.0% 912,926 912,556
70% 70.6% 798,810 805,638
60% 60.0% 684,694 684,636
50% 49.9% 570,579 569,095
40% 39.8% 456,463 453,955
30% 29.9% 342,347 341,468
20% 20.0% 228,231 228,430
10% 9.8% 114,116 112,283
Active Idle   0 0

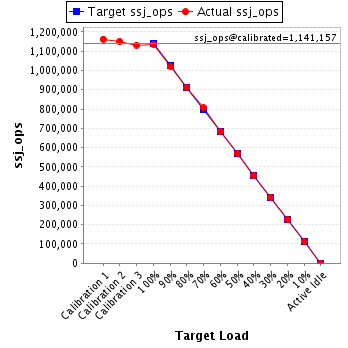

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL785 G5 (2.50GHz, AMD Opteron 8381 HE)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL785 G5 (2.50GHz, AMD Opteron 8381 HE)
Form Factor: 7U
CPU Name: Quad-Core AMD Opteron(r) Processor 8381 HE
CPU Characteristics: Quad-Core, 2.5GHz, 6MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 32 cores, 8 chips, 4 cores/chip
Hardware Threads: 32 (1 / core)
CPU(s) Orderable: 4,8 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per chip
Tertiary Cache: 6 MB I+D off chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 16 x 2048 MB
Memory Details: 4GB Reg PC2-5300 2x2GB LP Kit 483401-B21; slots 1 and 2 populated on each board
Power Supply Quantity and Rating (W): 3 x 1200
Power Supply Details: HP P/N 437572-B21
Disk Drive: 1 x 73GB 10K RPM SAS
Disk Controller: Integrated P400i SmartArray controller
# and type of Network Interface Cards (NICs) Installed: 2 x NC373i NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: None
Optical Drives: Yes
Other Hardware: none
Software
Power Management: HP Dynamic Power Regulator enabled
Operating System (OS): Red Hat Enterprise Linux 5.3
OS Version: 2.6.18-128.el5 (64-bit)
Filesystem: ext3
JVM Vendor: Oracle
JVM Version: Oracle JRockit(R) (build P28.0.0-8-109238-1.6.0_05-20090130-1405-linux-x86_64, compiled mode)
JVM Command-line Options: -Xms3600m -Xmx3600m -Xns3100m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: numactl --membind=N --cpunodebind=N (N from 0 to 7)
JVM Instances: 16
JVM Initial Heap (MB): 3600
JVM Maximum Heap (MB): 3600
JVM Address Bits: 64
Boot Firmware Version: A15 05/05/2009
Management Firmware Version: 1.70
Workload Version: SSJ 1.1.3
Director Location: Controller
Other Software: None
Boot Firmware Settings
Hardware Prefetch disabled
Management Firmware Settings
Default
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 133,381
0001.002 146,849
0001.003 137,911
0001.004 148,810
0001.005 147,616
0001.006 148,343
0001.007 136,323
0001.008 137,502
ssj_ops@100% 1,136,736
ssj_ops@100% per JVM 142,092

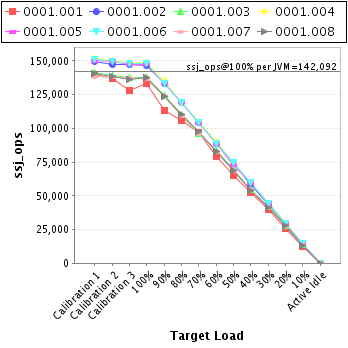

Graph of per-instance results

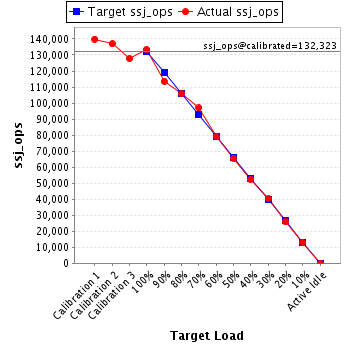

JVM '0001.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     139,877
Calibration 2     136,893
Calibration 3     127,753
ssj_ops@calibrated=132,323
100% 100.8% 132,323 133,381
90% 85.8% 119,091 113,580
80% 79.9% 105,858 105,675
70% 73.2% 92,626 96,914
60% 59.7% 79,394 79,018
50% 49.4% 66,162 65,397
40% 39.7% 52,929 52,506
30% 30.4% 39,697 40,220
20% 19.5% 26,465 25,782
10% 9.7% 13,232 12,797
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

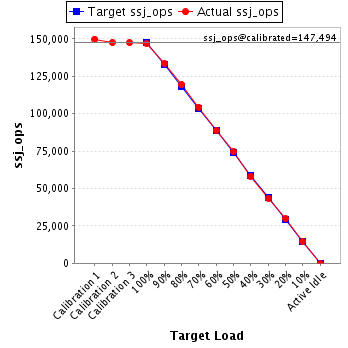

JVM '0001.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,799
Calibration 2     147,566
Calibration 3     147,423
ssj_ops@calibrated=147,494
100% 99.6% 147,494 146,849
90% 90.6% 132,745 133,594
80% 81.0% 117,995 119,457
70% 70.8% 103,246 104,382
60% 60.1% 88,497 88,702
50% 50.6% 73,747 74,684
40% 39.5% 58,998 58,307
30% 29.4% 44,248 43,435
20% 20.2% 29,499 29,836
10% 9.9% 14,749 14,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,314
Calibration 2     139,213
Calibration 3     137,867
ssj_ops@calibrated=138,540
100% 99.5% 138,540 137,911
90% 89.7% 124,686 124,296
80% 79.4% 110,832 110,004
70% 69.6% 96,978 96,382
60% 60.3% 83,124 83,551
50% 50.1% 69,270 69,362
40% 39.5% 55,416 54,777
30% 30.6% 41,562 42,347
20% 20.2% 27,708 27,951
10% 10.0% 13,854 13,807
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,061
Calibration 2     150,213
Calibration 3     149,084
ssj_ops@calibrated=149,648
100% 99.4% 149,648 148,810
90% 90.6% 134,684 135,637
80% 79.6% 119,719 119,074
70% 70.5% 104,754 105,464
60% 60.3% 89,789 90,265
50% 49.9% 74,824 74,742
40% 40.0% 59,859 59,910
30% 29.8% 44,895 44,610
20% 20.1% 29,930 30,067
10% 9.8% 14,965 14,732
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,029
Calibration 2     149,884
Calibration 3     147,556
ssj_ops@calibrated=148,720
100% 99.3% 148,720 147,616
90% 89.8% 133,848 133,618
80% 80.2% 118,976 119,239
70% 70.1% 104,104 104,228
60% 59.7% 89,232 88,731
50% 49.0% 74,360 72,827
40% 40.0% 59,488 59,530
30% 29.8% 44,616 44,370
20% 20.0% 29,744 29,768
10% 9.9% 14,872 14,707
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,836
Calibration 2     149,911
Calibration 3     148,402
ssj_ops@calibrated=149,156
100% 99.5% 149,156 148,343
90% 89.5% 134,241 133,546
80% 80.0% 119,325 119,296
70% 70.2% 104,409 104,665
60% 59.5% 89,494 88,771
50% 50.2% 74,578 74,898
40% 40.0% 59,662 59,646
30% 29.8% 44,747 44,392
20% 20.0% 29,831 29,807
10% 9.9% 14,916 14,730
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,422
Calibration 2     137,945
Calibration 3     137,596
ssj_ops@calibrated=137,770
100% 98.9% 137,770 136,323
90% 89.8% 123,993 123,760
80% 79.2% 110,216 109,177
70% 69.8% 96,439 96,177
60% 60.0% 82,662 82,657
50% 49.6% 68,885 68,337
40% 40.0% 55,108 55,061
30% 29.8% 41,331 41,096
20% 19.9% 27,554 27,436
10% 9.8% 13,777 13,538
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     140,405
Calibration 2     138,446
Calibration 3     136,564
ssj_ops@calibrated=137,505
100% 100.0% 137,505 137,502
90% 90.0% 123,755 123,747
80% 80.5% 110,004 110,633
70% 70.9% 96,254 97,426
60% 60.3% 82,503 82,941
50% 50.1% 68,753 68,847
40% 39.4% 55,002 54,219
30% 29.8% 41,252 40,998
20% 20.2% 27,501 27,782
10% 9.8% 13,751 13,426
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
