SPECpower_ssj2008
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Fujitsu Siemens Computers PRIMERGY TX300 S4 (Intel Xeon L5430) | SPECpower_ssj2008 = 827 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu Siemens Computers | SPEC License #: | 22 | Test Method: | Single Node |
| Tested By: | Fujitsu Siemens Computers | Test Location: | Paderborn, NRW, Germany | Test Date: | Aug 25, 2008 |
| Hardware Availability: | Sep-2008 | Software Availability: | Jul-2008 | Publication: | Sep 10, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

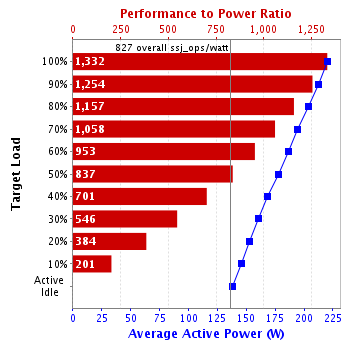

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 293,162 | 220 | 1,332 |
| 90% | 90.4% | 266,476 | 212 | 1,254 |
| 80% | 80.0% | 235,772 | 204 | 1,157 |
| 70% | 69.9% | 206,037 | 195 | 1,058 |
| 60% | 60.4% | 177,897 | 187 | 953 |
| 50% | 50.5% | 148,910 | 178 | 837 |
| 40% | 40.1% | 118,259 | 169 | 701 |
| 30% | 29.7% | 87,530 | 160 | 546 |
| 20% | 20.0% | 58,791 | 153 | 384 |
| 10% | 10.0% | 29,361 | 146 | 201 |
| Active Idle | 0 | 138 | 0 | |
| ∑ssj_ops / ∑power = | 827 | |||
| Set Identifier: | sut |
| Set Description: | PRIMERGY TX300 S4 (Intel Xeon L5430) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu Siemens Computers |
| Model: | PRIMERGY TX300 S4 (Intel Xeon L5430) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon L5430 |
| CPU Characteristics: | 2.66GHz, 2x6MB L2 cache, 1333MHz system bus |
| CPU Frequency (MHz): | 2667 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC2-5300F 2Rx8 (CAS 5-5-5) |
| Power Supply Quantity and Rating (W): | 1 x 700 |
| Power Supply Details: | HIPRO HP-W700WC3 |
| Disk Drive: | 1 x Seagate (3.5", SATA, 160GB, 7.2krpm) |
| Disk Controller: | LSI Logic integrated SAS 3000 series, 8-port with 1068E |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Broadcom BCM5708C NetXtreme II GigE (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Server Balanced Processor Power and Performance) |
| Operating System (OS): | Microsoft Windows Server 2003 R2 Enterprise x64 Edition |
| OS Version: | Version 5.2.3790 Service Pack 1 Build 3790 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) 6.0 P27.5.0 (build P27.5.0-5_o_CR371811_CR374296-100684-1.6.0_03-20080702-1651-windows-x86_64) |
| JVM Command-line Options: | -Xms1700m -Xmx1700m -Xns1500m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k -XXthroughputcompaction |
| JVM Affinity: | start /affinity [0x03,0x30,0x0C,0xC0] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1700 |
| JVM Maximum Heap (MB): | 1700 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu Siemens Computers |
| Model: | PRIMERGY RX100 S3 |
| CPU Description: | Pentium D 940 |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 Enterprise Edition + SP1 |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) R27.5.0 (build R27.5.0-110-94909-1.6.0_03-20080204-1558-windows-ia32) |
| CCS Version: | 1.1.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | ZES Zimmer Electronic Systems GmbH |
| Model: | LMG95 |
| Serial Number: | 11210208 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Calibration Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | ZES |
| Calibration Label: | 11210802.1f |
| Date of Calibration: | 13-Feb-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 220 | 21.4 |
| 90% | 212 | 21.4 |
| 80% | 204 | 21.4 |
| 70% | 195 | 21.4 |
| 60% | 187 | 21.4 |
| 50% | 178 | 21.4 |
| 40% | 169 | 21.4 |
| 30% | 160 | 21.4 |
| 20% | 153 | 21.4 |
| 10% | 146 | 21.4 |
| Active Idle | 138 | 21.4 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 230V / 50 Hz / 1 phase / 2 wires | 21.4 | 117 |

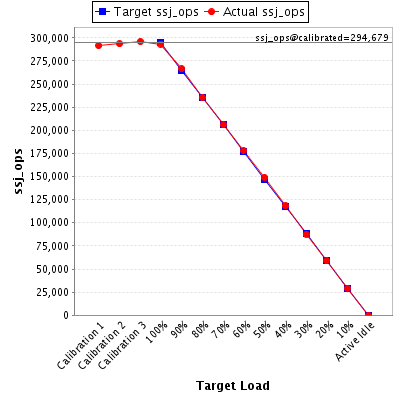

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 291,534 | ||
| Calibration 2 | 293,467 | ||
| Calibration 3 | 295,892 | ||
| ssj_ops@calibrated=294,679 | |||
| 100% | 99.5% | 294,679 | 293,162 |
| 90% | 90.4% | 265,212 | 266,476 |
| 80% | 80.0% | 235,744 | 235,772 |
| 70% | 69.9% | 206,276 | 206,037 |
| 60% | 60.4% | 176,808 | 177,897 |
| 50% | 50.5% | 147,340 | 148,910 |
| 40% | 40.1% | 117,872 | 118,259 |
| 30% | 29.7% | 88,404 | 87,530 |
| 20% | 20.0% | 58,936 | 58,791 |
| 10% | 10.0% | 29,468 | 29,361 |
| Active Idle | 0 | 0 | |
