SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Fujitsu Siemens Computers PRIMERGY TX300 S4 (Intel Xeon L5430) | SPECpower_ssj2008 = 827 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu Siemens Computers | SPEC License #: | 22 | Test Method: | Single Node |
| Tested By: | Fujitsu Siemens Computers | Test Location: | Paderborn, NRW, Germany | Test Date: | Aug 25, 2008 |
| Hardware Availability: | Sep-2008 | Software Availability: | Jul-2008 | Publication: | Sep 10, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

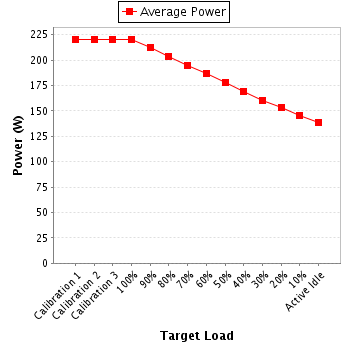

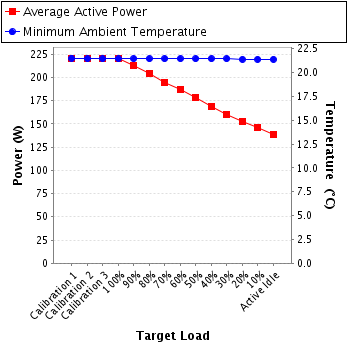

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 221 | 21.5 |
| Calibration 2 | 220 | 21.4 |
| Calibration 3 | 221 | 21.4 |
| 100% | 220 | 21.4 |
| 90% | 212 | 21.4 |
| 80% | 204 | 21.4 |
| 70% | 195 | 21.4 |
| 60% | 187 | 21.4 |
| 50% | 178 | 21.4 |
| 40% | 169 | 21.4 |
| 30% | 160 | 21.4 |
| 20% | 153 | 21.4 |
| 10% | 146 | 21.4 |
| Active Idle | 138 | 21.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | ZES Zimmer Electronic Systems GmbH |
| Model: | LMG95 |
| Serial Number: | 11210208 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Calibration Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | ZES |
| Calibration Label: | 11210802.1f |
| Date of Calibration: | 13-Feb-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 232 | 250V | 1.03 | 1.20A | 0.919 | 221 | -- |
| Calibration 2 | 228 | 250V | 1.05 | 1.20A | 0.922 | 220 | -- |
| Calibration 3 | 231 | 250V | 1.04 | 1.20A | 0.920 | 221 | -- |
| 100% | 232 | 250V | 1.03 | 1.20A | 0.919 | 220 | -- |
| 90% | 232 | 250V | 1.00 | 1.20A | 0.913 | 212 | -- |
| 80% | 232 | 250V | 0.971 | 1.20A | 0.906 | 204 | -- |
| 70% | 231 | 250V | 0.937 | 1.20A | 0.898 | 195 | -- |
| 60% | 232 | 250V | 0.906 | 1.20A | 0.889 | 187 | -- |
| 50% | 232 | 250V | 0.873 | 1.20A | 0.879 | 178 | -- |
| 40% | 232 | 250V | 0.838 | 1.20A | 0.869 | 169 | -- |
| 30% | 232 | 250V | 0.806 | 1.20A | 0.858 | 160 | -- |
| 20% | 231 | 250V | 0.778 | 1.20A | 0.850 | 153 | -- |
| 10% | 231 | 250V | 0.749 | 1.20A | 0.841 | 146 | -- |
| Active Idle | 232 | 250V | 0.719 | 1.20A | 0.831 | 138 | -- |
