SPECpower_ssj2008
Copyright © 2007 Standard Performance Evaluation Corporation
| Fujitsu Siemens Computers PRIMERGY TX150 S5 (Intel Xeon 3070) | SPECpower_ssj2008 = 356 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu Siemens Computers | SPEC License #: | 22 | Test Method: | Single Node |
| Tested By: | Fujitsu Siemens Computers | Test Location: | Paderborn, Germany | Test Date: | Nov 26, 2007 |
| Hardware Availability: | May-2007 | Software Availability: | Nov-2007 | Publication: | Dec 11, 2007 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

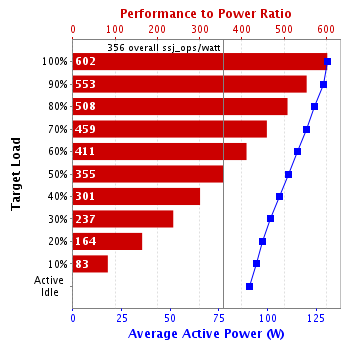

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 78,685 | 131 | 602 |
| 90% | 89.9% | 71,100 | 129 | 553 |
| 80% | 79.9% | 63,174 | 124 | 508 |
| 70% | 69.5% | 54,995 | 120 | 459 |
| 60% | 60.0% | 47,481 | 116 | 411 |
| 50% | 49.7% | 39,291 | 111 | 355 |
| 40% | 40.3% | 31,899 | 106 | 301 |
| 30% | 30.5% | 24,106 | 102 | 237 |
| 20% | 20.2% | 15,991 | 97.6 | 164 |
| 10% | 9.8% | 7,771 | 94.2 | 82.5 |
| Active Idle | 0 | 90.8 | 0 | |
| ∑ssj_ops / ∑power = | 356 | |||
| Set Identifier: | sut |
| Set Description: | PRIMERGY TX150 S5 (Intel Xeon 3070) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu Siemens Computers |
| Model: | PRIMERGY TX150 S5 (Intel Xeon 3070) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon 3070 |
| CPU Characteristics: | 2.66GHz, 4MB L2C shared, 1066MHz system bus |
| CPU Frequency (MHz): | 2666 |
| CPU(s) Enabled: | 2 cores, 1 chip, 2 cores/chip |
| Hardware Threads: | 2 (1 / core) |
| CPU(s) Orderable: | 1 |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 4 |
| # and size of DIMM: | 2x2048MB |
| Memory Details: | PC2-4200E CAS 4-4-4 2Rx8 |
| Power Supply Quantity and Rating (W): | 1 x 410 |
| Power Supply Details: | Newton Power NPS 400AB |
| Disk Drive: | 1 x 160GB 7.2K RPM SATA |
| Disk Controller: | LSI Logic integrated SAS 3000 series |
| # and type of Network Interface Cards (NICs) Installed: | Broadcom 5721 NetXtreme Gigabit Ethernet (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | Yes |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Server Balanced Power and Performance) |
| Operating System (OS): | Microsoft(R) Windows(R) Server 2003 Enterprise x64 Edition |
| OS Version: | 5.2.3790 Service Pack 1 Build 3790 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build R27.4.0-90-89592-1.6.0_02-20070928-1715-windows-x86_64) |
| JVM Command-line Options: | -Xms3400m -Xns3000m -Xmx3400m -Xlargepages -XXaggressive -XXthroughputcompaction -XXlazyunlocking -XXcallprofiling -Xgc:genpar -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k |
| JVM Affinity: | None |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 3400 |
| JVM Maximum Heap (MB): | 3400 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 0.23 |
| Director Location: | SUT |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu Siemens Computers |
| Model: | PRIMERGY RX100 S3 |
| CPU Description: | Pentium D 920 |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft(R) Windows(R) Server 2003 Enterprise Edition SP1 |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build R27.3.1-1-85830-1.6.0_01-20070716-1248-windows-ia32) |
| CCS Version: | 0.21 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Christ-Elektronik GmbH |
| Model: | CLM3000 |
| Serial Number: | 200707-0044 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | PTB (Physikalisch-Technische Bundesanstalt) |
| Accredited by: | DKD (Deutscher Kalibrierdienst) |
| Calibration Label: | 00715-07 DKD-K-23801 07-02 |
| Date of Calibration: | Feb-13-07 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 0.21-2f7044de |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 131 | 21.9 |
| 90% | 129 | 21.9 |
| 80% | 124 | 21.9 |
| 70% | 120 | 21.9 |
| 60% | 116 | 21.9 |
| 50% | 111 | 21.9 |
| 40% | 106 | 21.9 |
| 30% | 102 | 21.9 |
| 20% | 97.6 | 21.9 |
| 10% | 94.2 | 21.9 |
| Active Idle | 90.8 | 21.9 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 230V / 50 Hz / 1 phase / 2 wires | 21.9 | 117 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 78,154 | ||
| Calibration 2 | 79,194 | ||
| Calibration 3 | 79,024 | ||
| ssj_ops@calibrated=79,109 | |||
| 100% | 99.5% | 79,109 | 78,685 |
| 90% | 89.9% | 71,198 | 71,100 |
| 80% | 79.9% | 63,287 | 63,174 |
| 70% | 69.5% | 55,376 | 54,995 |
| 60% | 60.0% | 47,465 | 47,481 |
| 50% | 49.7% | 39,555 | 39,291 |
| 40% | 40.3% | 31,644 | 31,899 |
| 30% | 30.5% | 23,733 | 24,106 |
| 20% | 20.2% | 15,822 | 15,991 |
| 10% | 9.8% | 7,911 | 7,771 |
| Active Idle | 0 | 0 | |
