SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007 Standard Performance Evaluation Corporation
| Fujitsu Siemens Computers PRIMERGY TX150 S5 (Intel Xeon 3070) | SPECpower_ssj2008 = 356 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu Siemens Computers | SPEC License #: | 22 | Test Method: | Single Node |
| Tested By: | Fujitsu Siemens Computers | Test Location: | Paderborn, Germany | Test Date: | Nov 26, 2007 |
| Hardware Availability: | May-2007 | Software Availability: | Nov-2007 | Publication: | Dec 11, 2007 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

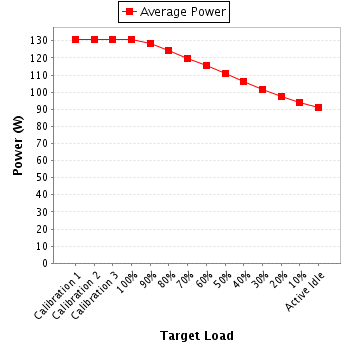

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 131 | 22.0 |
| Calibration 2 | 131 | 21.9 |
| Calibration 3 | 131 | 21.9 |
| 100% | 131 | 21.9 |
| 90% | 129 | 21.9 |
| 80% | 124 | 21.9 |
| 70% | 120 | 21.9 |
| 60% | 116 | 21.9 |
| 50% | 111 | 21.9 |
| 40% | 106 | 21.9 |
| 30% | 102 | 21.9 |
| 20% | 97.6 | 21.9 |
| 10% | 94.2 | 21.9 |
| Active Idle | 90.8 | 21.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Christ-Elektronik GmbH |
| Model: | CLM3000 |
| Serial Number: | 200707-0044 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | PTB (Physikalisch-Technische Bundesanstalt) |
| Accredited by: | DKD (Deutscher Kalibrierdienst) |
| Calibration Label: | 00715-07 DKD-K-23801 07-02 |
| Date of Calibration: | Feb-13-07 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 0.21-2f7044de |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 229 | -- | 0.637 | -- | 0.895 | 131 | -- |
| Calibration 2 | 229 | -- | 0.638 | -- | 0.896 | 131 | -- |
| Calibration 3 | 229 | -- | 0.637 | -- | 0.896 | 131 | -- |
| 100% | 230 | -- | 0.636 | -- | 0.895 | 131 | -- |
| 90% | 230 | -- | 0.627 | -- | 0.892 | 129 | -- |
| 80% | 230 | -- | 0.611 | -- | 0.886 | 124 | -- |
| 70% | 230 | -- | 0.593 | -- | 0.880 | 120 | -- |
| 60% | 230 | -- | 0.576 | -- | 0.873 | 116 | -- |
| 50% | 230 | -- | 0.556 | -- | 0.865 | 111 | -- |
| 40% | 230 | -- | 0.538 | -- | 0.858 | 106 | -- |
| 30% | 230 | -- | 0.519 | -- | 0.850 | 102 | -- |
| 20% | 230 | -- | 0.503 | -- | 0.844 | 97.6 | -- |
| 10% | 230 | -- | 0.489 | -- | 0.837 | 94.2 | -- |
| Active Idle | 230 | -- | 0.476 | -- | 0.830 | 90.8 | -- |
