Siemens NX (snx-02)

The snx-02 viewset was created from traces of the graphics workload generated by the NX 8.0 application from Siemens PLM. Model sizes range from 7.15 to 8.45 million vertices.

The viewset includes numerous rendering modes supported by the application, including wireframe, anti-aliasing, shaded, shaded with edges, and studio mode.

Viewset tests

The following tests are included within the viewset:

• Powertrain in advanced studio mode

• Powertrain in shaded mode

• Powertrain in shaded-with-edges mode

• Powertrain in studio mode

• Powertrain in wireframe mode

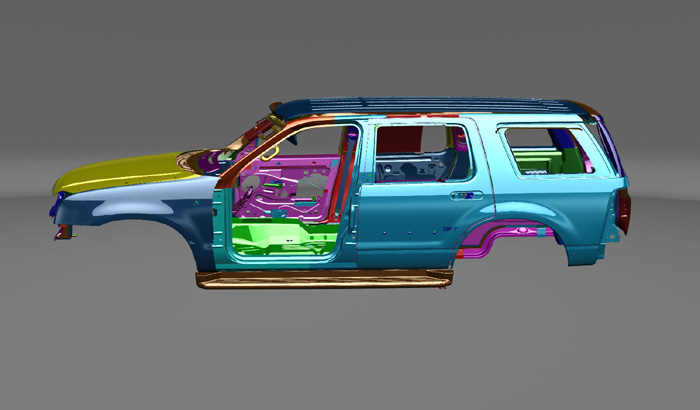

• SUV in advanced studio mode

• SUV in shaded mode

• SUV in shaded-with-edges mode

• SUV in studio mode

• SUV in wireframe mode



Powertrain and SUV models provided courtesy of Siemens PLM.
