| CPU2006 license: | 9017 | Test date: | Nov-2014 |
|---|---|---|---|
| Test sponsor: | Lenovo Group Limited | Hardware Availability: | Nov-2013 |
| Tested by: | IBM Corporation | Software Availability: | Sep-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2603 v2 |
| CPU Characteristics: | |
| CPU MHz: | 1800 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 10 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (8 x 16 GB 2Rx4 PC3-14900R-13, ECC, running at 1333 MHz) |
| Disk Subsystem: | 2 x 250 GB SATA, 7200 RPM, RAID 0 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.4 (Santiago) 2.6.32-358.el6.x86_64 |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

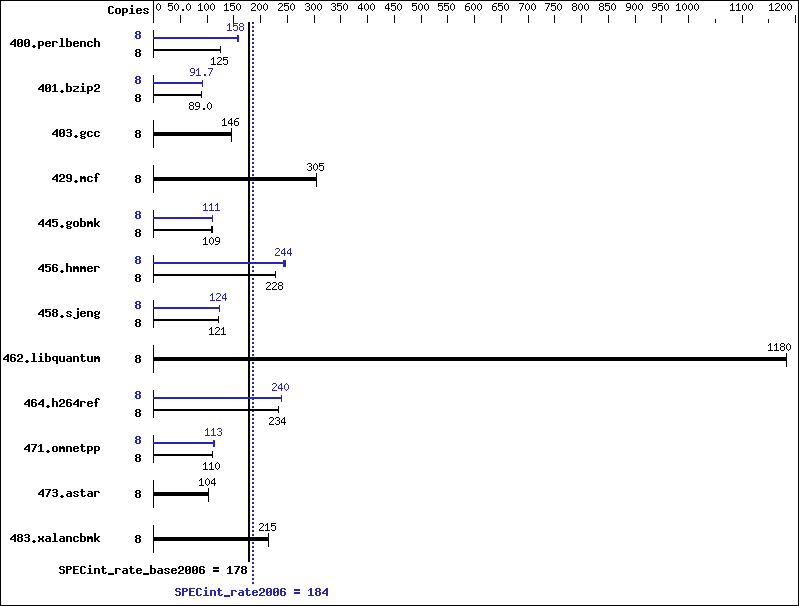

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 625 | 125 | 624 | 125 | 624 | 125 | 8 | 495 | 158 | 496 | 158 | 496 | 158 |
| 401.bzip2 | 8 | 869 | 88.8 | 865 | 89.3 | 867 | 89.0 | 8 | 840 | 92.0 | 842 | 91.7 | 842 | 91.7 |
| 403.gcc | 8 | 443 | 145 | 442 | 146 | 442 | 146 | 8 | 443 | 145 | 442 | 146 | 442 | 146 |
| 429.mcf | 8 | 239 | 305 | 239 | 305 | 239 | 305 | 8 | 239 | 305 | 239 | 305 | 239 | 305 |
| 445.gobmk | 8 | 768 | 109 | 768 | 109 | 768 | 109 | 8 | 757 | 111 | 757 | 111 | 757 | 111 |
| 456.hmmer | 8 | 327 | 228 | 327 | 228 | 327 | 228 | 8 | 307 | 243 | 303 | 246 | 306 | 244 |
| 458.sjeng | 8 | 803 | 121 | 803 | 121 | 803 | 121 | 8 | 781 | 124 | 781 | 124 | 780 | 124 |
| 462.libquantum | 8 | 140 | 1180 | 140 | 1180 | 140 | 1180 | 8 | 140 | 1180 | 140 | 1180 | 140 | 1180 |
| 464.h264ref | 8 | 757 | 234 | 758 | 233 | 757 | 234 | 8 | 739 | 240 | 739 | 240 | 739 | 240 |
| 471.omnetpp | 8 | 456 | 110 | 456 | 110 | 454 | 110 | 8 | 437 | 114 | 445 | 112 | 442 | 113 |
| 473.astar | 8 | 544 | 103 | 542 | 104 | 542 | 104 | 8 | 544 | 103 | 542 | 104 | 542 | 104 |
| 483.xalancbmk | 8 | 257 | 215 | 258 | 214 | 257 | 215 | 8 | 257 | 215 | 258 | 214 | 257 | 215 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Zone reclaim mode enabled with: echo 1 > /proc/sys/vm/zone_reclaim_mode Intel Idle Driver disabled with the following Linux kernel parameter in /etc/grub.conf: intel_idle.max_cstate=0
Platform Notes
BIOS setting: Operating Mode set to Maximum Performance Sysinfo program /home/SPECcpu-20140116-ic14.0/config/sysinfo.rev6874 $Rev: 6874 $ $Date:: 2013-11-20 #$ 654bd3fcf53b06faef0efe54ed011998 running on nx360M4 Wed Nov 19 06:06:01 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2603 v2 @ 1.80GHz 2 "physical id"s (chips) 8 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 4 siblings : 4 physical 0: cores 0 1 2 3 physical 1: cores 0 1 2 3 cache size : 10240 KB From /proc/meminfo MemTotal: 132091124 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.4 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.4 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux nx360M4 2.6.32-358.el6.x86_64 #1 SMP Tue Jan 29 11:47:41 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Nov 17 15:44 SPEC is set to: /home/SPECcpu-20140116-ic14.0 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_nx360m4-lv_home ext4 403G 14G 370G 4% /home Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS IBM -[FHE107NUS-1.20]- 06/03/2014 Memory: 8x Samsung M393B2G70QH0-CMA 16 GB 2 rank 1866 MHz, configured at 1333 MHz (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/SPECcpu-20140116-ic14.0/libs/32:/home/SPECcpu-20140116-ic14.0/libs/64:/home/SPECcpu-20140116-ic14.0/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
