SPECweb2009 Result: IBM Corporation: IBM System x3650 M3

SPECweb2009_PHP Result
Copyright © 2009 Standard Performance Evaluation Corporation

IBM Corporation: IBM System x3650 M3
The Apache Software Foundation: Apache HTTP Server 2.2.15
The PHP Group: PHP 5.3.3

SPECweb2009_PHP_Peak = 27,380 sus @ 415 W

SPECweb2009_PHP_Banking = 25,536 sus @ 419 W

SPECweb2009_PHP_Ecommerce = 28,544 sus @ 416 W

SPECweb2009_PHP_Support = 28,160 sus @ 411 W

SPECweb2009_PHP_Power = 50.1 asus/watt

Tested By: IBM

SPEC License #: 11

Test Date: Jan-2012

Performance and Configuration Section
Performance Section
Configuration Section
Common Workload Notes
Measurement Devices Notes

Details Section
Banking Details
Ecommerce Details
Support Details
Power and Temperature Details

Notes Section
Banking Notes
Ecommerce Notes
Support Notes

Errors Section
Banking Errors
Ecommerce Errors
Support Errors

Performance

Banking
Simultaneous User Sessions	Test Iteration	Minimum QOS Compliance			Validation Errors	Average Active Power (W)			SUS/Watt
Simultaneous User Sessions	Test Iteration	Good	Tolerable	Fail	Validation Errors	Server	Storage	Sum	SUS/Watt
25536	1	99.7	100.0	0.005	0	419	0.000	419	61.0
	2	99.2	99.9	0.139	1	419	0.000	419	61.0
	3	99.1	99.9	0.072	0	419	0.000	419	61.0
Average						419	0.000	419	61.0
Alterable / Modifiable Configuration	Used Components					Unused Components
Alterable / Modifiable Configuration	All					None

Ecommerce
Simultaneous User Sessions	Test Iteration	Minimum QOS Compliance			Validation Errors	Average Active Power (W)			SUS/Watt
Simultaneous User Sessions	Test Iteration	Good	Tolerable	Fail	Validation Errors	Server	Storage	Sum	SUS/Watt
28544	1	100.0	100.0	0.001	0	415	0.000	415	68.8
	2	98.8	99.9	0.086	0	417	0.000	417	68.4
	3	95.5	99.7	0.346	2	418	0.000	418	68.4
Average						416	0.000	416	68.5
Alterable / Modifiable Configuration	Used Components					Unused Components
Alterable / Modifiable Configuration	All					None

Support
Simultaneous User Sessions	Test Iteration	Minimum QOS Compliance			Validation Errors	Average Active Power (W)			SUS/Watt
Simultaneous User Sessions	Test Iteration	Good	Tolerable	Fail	Validation Errors	Server	Storage	Sum	SUS/Watt
28160	1	97.8	99.7	0.329	0	411	0.000	411	68.5
	2	97.5	99.7	0.342	0	411	0.000	411	68.5
	3	97.0	99.7	0.347	0	412	0.000	412	68.4
Average						411	0.000	411	68.5
Alterable / Modifiable Configuration	Used Components					Unused Components
Alterable / Modifiable Configuration	All					None

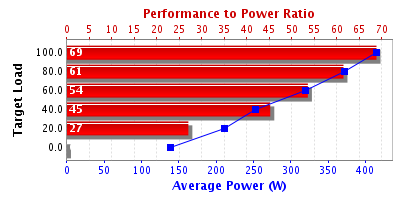

Power/Performance
Iteration	Performance		Average Active Power			Performance to Power Ratios
Iteration	Target Load	Simulated User Sessions	Server	Storage	Sum	Performance to Power Ratios
0	100%	28540	415	0.000	415	68.8
	80%	22832	372	0.000	372	61.4
	60%	17124	320	0.000	320	53.5
	40%	11416	253	0.000	253	45.2
	20%	5708	212	0.000	212	27.0
	0%	0	139	0.000	139	0.000
	Total Sessions/Total Power =					50.1

Configuration

Availability Dates
SUT Hardware	Jun-2010
Backend Simulator	Oct-2005
Web Server Software	Dec-2011 Dec-2011
Operating System	Dec-2011
Other Components	N/A

System Under Test (SUT)

# of SUTs 1

Vendor IBM Corporation

Model IBM System x3650 M3

Processor Intel Xeon X5680

Processor Speed (MHz) 3330

# Processors 12 cores, 2 chips, 6 cores/chip, 24 threads

Primary Cache 32 KB I + 32 KB D on chip per core

Secondary Cache 256 KB I+D on chip per core

Other Cache 12 MB I+D on chip per chip

Memory 96 GB (12x8 GB PC3L-10600 DDR3 1333MHz in slots 2, 3, 5, 6, 8, 9, 11, 12, 14, 15, 17, 18)

Disk Subsystem 8 x 200GB SFF SAS SSD

Disk Controllers ServeRAID-BR10i SAS/SATA Controller

Operating System Red Hat Enterprise Linux 6.2

File System ext2

Other Hardware 4 x QLogic 10Gb SFP+ SR Optical Transceivers
2 x BNT BLADE RackSwitch G8000 Rackable 1/10G Aggregation Switch
4 x BNT 10Gb Ethernet SFP+ SR 10GBASE-SR Transceivers

Other Software N/A

SUT Network

# of Controllers 3

Network Controllers 1 x Intel PRO/1000 Quad Port Server Adapter
2 x QLogic 10Gb Dual Port CNA for IBM System x

# of Networks 6

Network Type 1 Gigabit Ethernet
10 Gigabit Ethernet

Network Speed 10 Gb/s

MSL (sec) 30 (Non RFC1122)

Time-Wait (sec) 60 (Non RFC1122)

MTU Size 1500

HTTP Software
Vendor	The Apache Software Foundation
Name/Version	Apache HTTP Server 2.2.15
Dynamic Scripts	N/A
Server Cache	N/A
Log Mode	Common Log Format

Script Engine

Vendor The PHP Group

Name/Version PHP 5.3.3

Dynamic Scripts PHP

Server Cache APC 3.1.3p1

Log Mode Common Log Format

Clients

# of Clients 33

Model IBM xSeries 336

Processor Intel Xeon

Processor Speed (MHz) 2800

# Processors 2 cores, 2 chips, 1 core/chip, 4 threads

Memory 3 GB

Network Controller IBM NetXtreme BCM5721 Gigabit Ethernet PCI Express (onboard dual port)

Operating System SUSE Linux Enterprise Server 10 Service Pack 2

JVM Version Java(TM) SE Runtime Environment (build pxi3260sr8-20100409_01(SR8))

JIT Version IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Linux x86-32 jvmxi3260sr8-20100401_55940 (JIT enabled, AOT enabled)

Other Hardware 2 x NetGear ProSafe 48 Port Gigabit Stackable Smart Switches GS748TS for client management

Other Software N/A

Backend Simulator (BESIM)

# of Simulators 2

Model IBM System p5 550

Processor POWER5+

Processor Speed (MHz) 1896

# of Processors 4 cores, 2 chips, 2 cores/chip, 8 threads

Memory 4 GB

Network Controller Intel(R) Pro/1000 onboard dual port gigabit ethernet

Operating System SUSE Linux Enterprise 10 Service Pack 2

File System ext2

Web Server Apache HTTP Server 2.2.14

Server Scripts FCGI

Other Hardware N/A

Other Software N/A

Common Workload Notes

SUT Notes

1 prime client/clients/BeSims/SUT management subnet connected via 2 stacked NetGear ProSafe switches
4 client/SUT subnets connected through 2 BNT RackSwitch G8000 1/10G Switches, 2 subnets per switch
Intel(R) PRO/1000 Network Driver e1000e version 1.4.4-k (OS version) 1GbE, eth8, eth9, eth10 (1 port unused)
eth8 connected to management subnet
eth9 and eth10 connected directly to BeSim systems
QLogic 10 Gigabit PCI-E Ethernet Driver qlge version v1.00.00.29.00.00-01 (OS version) 10GbE, eth4, eth5, eth6, eth7
added 1 same subnet IP alias address per 10GbE port
i.e. eth4 has ip address 10.0.1.100, 'ifconfig eth4:0 10.0.1.101 netmask255.255.255.0 up' to alias address 10.0.1.101 to eth4
e1000e options: InterruptThrottleRate=3000,3000,3000,3000
1 x 200GB SFF SAS SSD used for OS
1 x 200GB SFF SAS SSD used for PHP session files
PHP session file device formatted ext2, mounted with -o rw,noatime,nodiratime,nocheck
6 x 200GB SFF SAS SSD used for wafgen dataset storage.
1200 GB wafgen dataset logical volume created from 6 physical volumes (each PV comprised of 1 SSD), striped
wafgen device formatted ext2, mounted with -o rw,noatime,nodiratime,nocheck
wafgen datasets for all workloads were stored concurrently
Unified Extensible Firmware Interface (uEFI) modifications from default:
uEFI.TurboModeEnable=Enable, default Disable
uEFI.TurboBoost=Traditional, default Power Optimized
uEFI.ProcessorCcxEnable=Enable, default Disable

Operating System Notes

ulimit -n 1000000 :sets number of open files, default 1024
ulimit -u 1000000 :sets number of max user processes, default 802816
net.ipv4.conf.all.rp_filter=1 :enables source route verification, default 0
net.ipv4.conf.all.arp_filter=1 :instructs kernel to bind IP address to a specific ARP address, default 0
net.ipv4.tcp_timestamps=0 :turns off the tcp_timestamps, default 1
net.ipv4.tcp_max_tw_buckets=2000000 :sets TCP time-wait buckets pool size, default 180000
net.ipv4.tcp_dsack=0 :disables sending duplicate SACKs, default 1
net.ipv4.tcp_sack=0 :turn off SACK option in the TCP option field in the TCP header when it sends out a SYN packet, default 1
net.ipv4.tcp_wmem=33554432 33554432 33554432 :maximum TCP write-buffer space allocatable, default 4096 16384 131072
net.ipv4.tcp_rmem=33554432 33554432 33554432 :maximum TCP read-buffer space allocatable, default 4096 87380 174760
net.ipv4.tcp_window_scaling=0 :turns TCP window scaling off, default on
net.ipv4.tcp_mem=33554432 33554432 33554432 :maximum TCP buffer space allocatable, default 196608 262144 393216
net.core.wmem_max=67108864 :maximum send socket buffer size, default 131071
net.core.rmem_max=67108864 :maximum receive socket buffer size, default 131071
net.core.wmem_default=67108864 :default send socket buffer size, default 126976
net.core.rmem_default=67108864 :default receive socket buffer size, default 126976
net.core.optmem_max=67108864 :maximum amount of option memory buffers, default 20480
net.core.somaxconn=640000 :size of listen queue for accepting new TCP connections, default 128
net.core.netdev_max_backlog=1048576 :number of unprocessed input packets before kernel starts dropping them, default 1000
net.ipv4.tcp_max_syn_backlog=200000 :maximum number of remembered connection requests, default 1024
irqbalance turned off, default on
txqueuelen set to 20000 for all 10GbE interfaces, default 1000
txqueuelen set to 60000 for both 1GbE interfaces, default 1000
tx-usecs set to 128 for all 10GbE interfaces, default 100
rx-usecs set to 128 for all 10GbE interfaces, default 100
eth4-rx-0, eth4-rx-1 IRQs bound to CPU0
eth4-rx-2, eth4-rx-3 IRQs bound to CPU1
eth4-rx-4 IRQ bound to CPU2
eth4-tx-5 IRQ bound to CPU12
eth4-rx-6 IRQ bound to CPU13
eth4-rx-7 IRQ bound to CPU14
eth5-rx-0, eth5-rx-1 IRQs bound to CPU3
eth5-rx-2, eth5-rx-3 IRQs bound to CPU4
eth5-rx-4 IRQ bound to CPU5
eth5-tx-5 IRQ bound to CPU15
eth5-rx-6 IRQ bound to CPU16
eth5-rx-7 IRQ bound to CPU17
eth6-rx-0, eth6-rx-1 IRQs bound to CPU6
eth6-rx-2, eth6-rx-3 IRQs bound to CPU7
eth6-rx-4 IRQ bound to CPU8
eth6-tx-5 IRQ bound to CPU18
eth6-rx-6 IRQ bound to CPU19
eth6-rx-7 IRQ bound to CPU20
eth7-rx-0, eth7-rx-1 IRQs bound to CPU9
eth7-rx-2, eth7-rx-3 IRQs bound to CPU10
eth7-rx-4 IRQ bound to CPU11
eth7-tx-5 IRQ bound to CPU21
eth7-rx-6 IRQ bound to CPU22
eth7-rx-7 IRQ bound to CPU23

HTTP Software Notes

started 8 Apache instances
created the following config files in /etc/httpd/conf/ using default httpd.conf as a template:
httpd.1.conf, httpd.1.1.conf, httpd.2.conf, httpd.2.1.conf, httpd.3.conf, httpd.3.1.conf, httpd.4.conf, httpd.4.1.conf
changes from default common to all httpd config files:
Timeout 300, the number of seconds before receives and sends time out; default 60
KeepAlive On, allow persistent connections; default Off
MaxKeepAliveRequests 0, unlimit number of requests; default 100
KeepAliveTimeout 1, number of seconds wait for next request; default 15
-IfModule prefork.c-
StartServers 256; default 8
MinSpareServers 256; default 5
MaxSpareServers 256; default 20
ServerLimit 2400; default 256
MaxClients 2400; default 256
MaxRequestsPerChild 0; default 4000
-/IfModule-
Include conf.d/php.conf
replace xxx with 1, 1.1, 2, 2.1, 3, 3.1, 4, 4.1 for each corresponding httpd.xxx.conf config file:
PidFile /var/run/httpd/httpd.xxx.pid
Include conf.d/ssl.xxx.conf
ErrorLog logs/error.xxx_log
CustomLog logs/access.xxx_log combined
httpd.1.conf only:
Listen 10.0.1.100:80; default Listen 80
httpd.1.1.conf only:
Listen 10.0.1.101:80; default Listen 80
httpd.2.conf only:
Listen 10.0.2.100:80; default Listen 80
httpd.2.1.conf only:
Listen 10.0.2.101:80; default Listen 80
httpd.3.conf only:
Listen 10.0.3.100:80; default Listen 80
httpd.3.1.conf only:
Listen 10.0.3.101:80; default Listen 80
httpd.4.conf only:
Listen 10.0.4.100:80; default Listen 80
httpd.4.1.conf only:
Listen 10.0.4.101:80; default Listen 80
created the following config files in /etc/httpd/conf.d/ using default ssl.conf as a template:
ssl.1.conf, ssl.1.1.conf, ssl.2.conf, ssl.2.1.conf, ssl.3.conf, ssl.3.1.conf, ssl.4.conf, ssl.4.1.conf
replace xxx with 1, 1.1, 2, 2.1, 3, 3.1, 4, 4.1 for each corresponding ssl.xxx.conf config file:
SSLSessionCache shmcb:/var/cache/mod_ssl/scache.xxx(512000)
ErrorLog logs/ssl_error.xxx_log
TransferLog logs/ssl_access.xxx_log
CustomLog logs/ssl_request.xxx_log
ssl.1.conf only:
Listen 10.0.1.100:443; default Listen 443
ssl.1.1.conf only:
Listen 10.0.1.101:443; default Listen 443
ssl.2.conf only:
Listen 10.0.2.100:443; default Listen 443
ssl.2.1.conf only:
Listen 10.0.2.101:443; default Listen 443
ssl.3.conf only:
Listen 10.0.3.100:443; default Listen 443
ssl.3.1.conf only:
Listen 10.0.3.101:443; default Listen 443
ssl.4.conf only:
Listen 10.0.4.100:443; default Listen 443
ssl.4.1.conf only:
Listen 10.0.4.101:443; default Listen 443
http server instances were started with the taskset command.
i.e. taskset --cpu-list 0,1,2,12,13,14 apachectl -k start -f /etc/httpd/conf/httpd.1.conf
server instances in config files httpd.1 and httpd.1.1 bound to CPUS 0-2, 12-14
server instances in config files httpd.2 and httpd.2.1 bound to CPUS 3-5, 15-17
server instances in config files httpd.3 and httpd.3.1 bound to CPUS 6-8, 18-20
server instances in config files httpd.4 and httpd.4.1 bound to CPUS 9-11, 21-23

Script Engine Notes

Alternative PHP Cache (pecl-APC) selected during OS install
PHP, APC versions included with the OS were used unmodified.
PHP session files are saved in default /var/lib/php/session/ subdirectories.
php.ini modified to make the subdirectories 2 deep as follows:
session.save_path = 2;/var/lib/php/session

HTTP Script Notes

SPEC-provided PHP scripts used without modification
Smarty v2.6.22 used
Apache version included with the OS was used unmodified.

Client Notes

32 load generating clients and 1 prime client
ulimit -n 1000000 :sets number of open files, default 1024
ulimit -u 1000000 :sets number of max user processes, default 20478
ulimit -s 524288 :sets stack size, default 8192
net.ipv4.tcp_timestamps=0 :turns off the tcp_timestamps, default 1
net.ipv4.tcp_max_tw_buckets=400000 :sets TCP time-wait buckets pool size, default 180000
net.ipv4.conf.default.rp_filter=1 :controls source route verification, default 0
net.ipv4.conf.all.arp_filter=1 :instructs kernel to bind IP address to a specific ARP address, default 0
client java options: -Xms512m -Xmx512m -Xdisableexplicitgc
per client: 1 subnet to SUT via BNT BLADE RackSwitch, 1 subnet to prime client via NetGear ProSafe Switch
2 client processes per client system using ports 1099, 1199

BESIM Notes

2 BeSim systems are network connected to the prime client via a NetGear ProSafe 1GbE switch.
BeSim OS settings:
ulimit -n 1000000 :sets number of open files, default 1024
ulimit -u 1000000 :sets number of max user processes, default 15744
ulimit -s 524288 :sets stack size, default 8192
net.ipv4.ip_forward=0 :turns IP forwarding across subnets off, default on
net.ipv4.tcp_timestamps=0 :turns off the tcp_timestamps, default 1
net.ipv4.tcp_max_tw_buckets=3000000 :sets TCP time-wait buckets pool size, default 180000
net.ipv4.conf.default.rp_filter=1 :controls source route verification, default 0
net.ipv4.icmp_echo_ignore_broadcasts=1 :enables protection from ICMP ECHO requests, default 1
net.ipv4.conf.all.arp_filter=1 :instructs kernel to bind IP address to a specific ARP address, default 0
net.core.rmem_default=33554432 :default receive socket buffer size, default 126976
net.core.rmem_max=33554432 :maximum receive socket buffer size, default 131071
net.core.wmem_default=33554432 :default send socket buffer size, default 126976
net.core.wmem_max=33554432 :maximum send socket buffer size, default 131071
net.core.optmem_max=33554432 :maximum amount of option memory buffers, default 20480
net.ipv4.tcp_rmem=33554432 33554432 33554432 :maximum TCP read-buffer space allocatable, default 4096 87380 174760
net.ipv4.tcp_wmem=33554432 33554432 33554432 :maximum TCP write-buffer space allocatable, default 4096 16384 131072
net.ipv4.tcp_mem=33554432 33554432 33554432 :maximum TCP buffer space allocatable, default 196608 262144 393216
net.ipv4.tcp_window_scaling=0 :turns TCP window scaling off, default on
net.core.netdev_max_backlog=300000 :number of unprocessed input packets before kernel starts dropping them, default 1000
net.ipv4.tcp_max_syn_backlog=400000 :maximum number of remembered connection requests, default 1024
net.core.somaxconn=40960 :size of listen queue for accepting new TCP connections, default 128
txqueuelen set to 60000 for 1GbE interfaces, default 1000
started 4 Apache instances on each system
created the following config files in /etc/httpd/conf/ using default httpd.conf as a template:
besim81.conf, besim82.conf, besim83.conf, besim84.conf
replace xx with 81, 82, 83, 84 for each corresponding besimxx.conf config file:
each Apache instance defined by besimxx.conf file listens on port xx
ErrorLog logs/error_log_xx
CustomLog logs/access_log_xx
PidFile /autobench/var/tmp/httpd_xx.pid
added the following to each besimxx.conf:
LoadModule fastcgi_module modules/mod_fastcgi.so
ScriptAlias /fcgi-bin/ /etc/httpd/fcgi-bin/
FastCgiIpcDir /etc/htpd/fastcgi
FastCgiConfig -initial-env LD_LIBRARY_PATH=/etc/httpd/lib
-Directory '/etc/httpd/fcgi-bin/'-
AllowOverride None
Options +ExecCGI -Includes
SetHandler fastcgi-script
Order allow,deny
Allow from all
-/Directory-
AddHandler fcgi-script .fcgi
-IfModule mpm_prefork_module-
ServerLimit 1500
StartServers 1500
MinSpareServers 1500
MaxSpareServers 1500
MaxClients 1500
MaxRequestsPerChild 0
-/IfModule-

Banking Run Details

Test results for each iteration

Iteration

Request Type

Total Reqs

QOS

Good	Tolerable	Fail

Weighted
ABR

Avg Resp
Time (sec)

Average
Bytes/Req

1487212

1486493

712

15,735.7

0.671

35085

account_summary

1047825

1047689

135

8,955.0

0.413

28339

check_detail_html

587155

587065

4,458.3

0.389

25178

bill_pay

954090

953982

107

7,614.4

0.389

26464

add_payee

76389

76384

627.8

0.395

27250

payee_info

54758

54752

741.3

0.576

44892

quick_pay

458162

456982

1158

4,748.8

0.531

34369

billpay_status

152060

152041

1,560.2

0.463

34022

chg_profile

83949

83935

1,117.7

0.565

44150

post_profile

60569

60562

684.5

0.497

37475

req_checks

83895

83837

2,261.5

1.103

89385

post_chk_order

60393

60378

619.8

0.466

34033

req_xfer_form

118779

118769

825.8

0.355

23054

post_fund_xfer

85401

85387

654.2

0.384

25402

logout

424747

424619

128

9,692.2

1.079

75665

check_image

1174510

1174474

3,787.7

0.149

10693

Total

6909894

6907349	2513	32

64,085.1

0.479

30,753

1467387

1462886

3488

1013

13,426.6

0.755

35089

account_summary

1034660

1031846

1752

1061

7,647.2

0.511

28344

check_detail_html

579319

577758

934

627

3,803.5

0.491

25177

bill_pay

941565

939179

1492

894

6,497.5

0.489

26463

add_payee

75487

75302

113

536.5

0.493

27253

payee_info

54081

53921

633.1

0.673

44892

quick_pay

451999

448507

2919

573

4,051.0

0.647

34369

billpay_status

149895

149507

245

143

1,329.8

0.561

34021

chg_profile

83092

82855

146

956.6

0.662

44150

post_profile

59936

59760

112

585.7

0.596

37475

req_checks

82813

82329

369

115

1,930.2

1.197

89385

post_chk_order

59599

59435

104

528.9

0.566

34032

req_xfer_form

117182

116876

189

117

704.5

0.456

23054

post_fund_xfer

84375

84155

135

558.8

0.484

25400

logout

418691

416400

1843

448

8,262.7

1.166

75680

check_image

1158770

1158535

180

3,231.0

0.167

10692

Total

6818851

6799251	14109	5490

54,683.4

0.562

30,753

1456838

1453043

3515

280

12,355.6

0.804

35085

account_summary

1027209

1025821

905

483

7,038.1

0.570

28344

check_detail_html

575361

574556

534

271

3,501.7

0.551

25177

bill_pay

934527

933341

760

426

5,978.3

0.549

26464

add_payee

74905

74826

493.4

0.552

27250

payee_info

53678

53583

582.5

0.730

44893

quick_pay

448666

444807

3537

322

3,727.6

0.713

34370

billpay_status

148884

148688

125

1,224.6

0.621

34027

chg_profile

82382

82246

879.2

0.719

44149

post_profile

59384

59299

538.0

0.654

37476

req_checks

82293

81802

439

1,778.2

1.251

89389

post_chk_order

59183

59074

486.9

0.626

34031

req_xfer_form

116360

116244

648.5

0.514

23056

post_fund_xfer

83723

83561

115

514.1

0.547

25403

logout

415777

412337

3240

200

7,604.8

1.217

75666

check_image

1150816

1150558

242

2,975.6

0.177

10696

Total

6769986

6753786	13829	2371

50,326.9

0.611

30,752

Power and Temperature Data for Banking workload

Iteration Average Active Power Iteration Minimum Ambient Temperature

Server Storage Sum

1 419 0.000 419 1 21.9

2 419 0.000 419 2 22.0

3 419 0.000 419 3 22.1

Average 419 0.000 419 Minimum 21.9

Notes for Banking Workload

Other Notes

CHECK_IMAGE_SUBDIRS=256, default 0
LG_BUF_SIZE=102400, default 20480

Errors for Banking Workload

Configuration Errors

No Configuration Errors Found

Quality of Service Errors

No QOS Errors Found

Validation Errors

1 Validation Errors for Iteration 2 : webcli26:1099 - account_summary

Request Distribution Errors

No Request Distribution Errors Found

Ecommerce Run Details

Test results for each iteration

Iteration

Request Type

Total Reqs

QOS

Good	Tolerable	Fail

Weighted
ABR

Avg Resp
Time (sec)

Average
Bytes/Req

index

625997

625994

12,088.4

1.527

139709

314102

314098

8,720.4

2.032

200859

browse

561436

561431

12,486.5

1.715

160904

browse_productline

479068

479019

15,733.9

2.443

237611

productdetail

383437

383433

2,876.2

1.033

54269

customize1

808560

808554

18,557.3

1.687

166047

customize2

429018

429013

9,795.9

1.678

165195

customize3

294513

294509

7,297.3

1.843

179262

cart

253305

253302

2,643.6

0.805

75507

180517

180514

1,230.0

0.532

49298

shipping

169882

169877

1,006.6

0.450

42868

billing

161537

161534

768.5

0.380

34421

confirm

120980

120979

555.7

0.364

33234

Total

4782352

4782257	91	4

93,760.5

1.512

141,842

index

624935

624498

369

11,947.0

1.544

139698

313989

313666

292

8,630.5

2.046

200858

browse

560351

559901

387

12,340.2

1.730

160927

browse_productline

478061

472489

5162

410

15,545.6

2.473

237624

productdetail

382285

382019

219

2,837.6

1.049

54240

customize1

806323

805489

807

18,321.9

1.700

166046

customize2

428001

427524

460

9,675.4

1.692

165193

customize3

294017

293519

340

158

7,212.8

1.879

179265

cart

253051

253020

2,610.7

0.829

75391

180286

180107

158

1,220.6

0.557

49473

shipping

169643

169638

995.2

0.459

42868

billing

161271

161268

759.7

0.396

34421

confirm

120638

120567

548.7

0.378

33234

Total

4772851

4763705	8302	844

92,645.9

1.531

141,844

index

622720

621005

1200

515

11,658.2

1.576

139699

312560

310942

997

621

8,413.3

2.080

200858

browse

558220

556277

1316

627

12,038.5

1.760

160925

browse_productline

476197

454846

19703

1648

15,164.6

2.545

237629

productdetail

380944

379679

732

533

2,770.4

1.091

54267

customize1

803764

800590

2003

1171

17,885.5

1.735

166045

customize2

426867

425090

1098

679

9,450.0

1.728

165194

customize3

293263

291241

1390

631

7,045.2

1.940

179263

cart

252397

251926

347

124

2,549.8

0.864

75382

179787

179463

264

1,194.0

0.580

49557

shipping

169182

169001

144

971.9

0.475

42868

billing

160775

160588

159

741.6

0.418

34420

confirm

120320

120196

121

535.9

0.393

33234

Total

4756996

4720844	29474	6676

90,418.9

1.568

141,834

Power and Temperature Data for Ecommerce workload

Iteration Average Active Power Iteration Minimum Ambient Temperature

Server Storage Sum

1 415 0.000 415 1 22.1

2 417 0.000 417 2 21.9

3 418 0.000 418 3 21.8

Average 416 0.000 416 Minimum 21.8

Notes for Ecommerce Workload

Other Notes

PRODUCT_IMAGE_SUBDIRS=256, default 0
LG_BUF_SIZE=102400, default 22528

Errors for Ecommerce Workload

Configuration Errors

No Configuration Errors Found

Quality of Service Errors

No QOS Errors Found

Validation Errors

1 Validation Errors for Iteration 3 : webcli06:1199 - customize3

1 Validation Errors for Iteration 3 : webcli06:1199 - billing

Request Distribution Errors

No Request Distribution Errors Found

Support Run Details

Test results for each iteration

Iteration

Request Type

Total Reqs

QOS

Good	Tolerable	Fail

Weighted
ABR

Avg Resp
Time (sec)

Average
Bytes/Req

home

402854

396391

6278

185

888.3

0.717

60552

627812

617680

9831

301

615.0

0.385

26897

catalog

581352

572440

8664

248

728.5

0.459

34407

product

1230368

1209676

20033

659

3,010.0

0.921

67178

fileCatalog

1118920

1100932

17456

532

4,384.4

1.249

107598

file

671804

657212

14160

432

3,039.8

1.425

124248

download

335681

334188

388

1105

84,367.5

69.029

6901491

Total

4968791

4888519	76810	3462

97,033.5

5.526

536,247

home

399793

392960

6594

239

877.1

0.766

60551

622741

611965

10421

355

606.9

0.444

26899

catalog

577269

567549

9410

310

719.7

0.520

34408

product

1221156

1192070

27413

1673

2,972.3

1.058

67179

fileCatalog

1110585

1088609

21084

892

4,329.5

1.326

107598

file

666700

650028

16035

637

3,001.2

1.499

124248

download

333049

331503

408

1138

83,135.8

68.912

6889744

Total

4931293

4834684	91365	5244

95,642.4

5.597

535,318

home

397877

391000

6638

239

870.4

0.798

60551

620023

609426

10233

364

602.5

0.481

26899

catalog

574619

564640

9635

344

714.3

0.558

34408

product

1215857

1179149

34244

2464

2,950.8

1.134

67179

fileCatalog

1105835

1079950

24776

1109

4,298.5

1.373

107596

file

663946

644909

18259

778

2,980.2

1.542

124248

download

331422

329781

490

1151

82,423.3

68.856

6883998

Total

4909579

4798855	104275	6449

94,840.1

5.637

534,711

Power and Temperature Data for Support workload

Iteration Average Active Power Iteration Minimum Ambient Temperature

Server Storage Sum

1 411 0.000 411 1 21.8

2 411 0.000 411 2 22.1

3 412 0.000 412 3 21.9

Average 411 0.000 411 Minimum 21.8

Notes for Support Workload

Other Notes

Linux I/O scheduler deadline, default cfq

Errors for Support Workload

Configuration Errors

No Configuration Errors Found

Quality of Service Errors

No QOS Errors Found

Validation Errors

No Validation Errors Found

Request Distribution Errors

No Request Distribution Errors Found

Power Workload Run Details

Test results for each iteration

Iteration

Target Load

Request Type

Total Reqs

QOS

Good	Tolerable	Fail

Weighted
ABR

Avg Resp
Time (sec)

Average
Bytes/Req

100%

index

208358

208357

12,078.7

1.527

139670

104205

104202

8,688.3

2.032

200882

browse

186517

12,443.8

1.714

160742

browse_productline

159269

159229

15,712.7

2.444

237691

productdetail

127386

2,872.3

1.033

54326

customize1

270223

270219

18,620.6

1.686

166022

customize2

143377

143375

9,828.9

1.678

165166

customize3

98163

98160

7,302.6

1.843

179236

cart

84522

84521

2,644.3

0.804

75377

60169

1,239.8

0.536

49646

shipping

56605

1,007.2

0.450

42868

billing

53745

767.8

0.380

34421

confirm

40234

40233

555.0

0.364

33234

Total

1592773

1592718	55	0

93,762.1

1.512

141,829

80%

index

167071

167069

12,149.2

1.523

139722

83788

8,760.1

2.032

200884

browse

149877

149876

12,541.5

1.713

160780

browse_productline

127854

127852

15,813.8

2.441

237651

productdetail

102002

2,878.8

1.028

54228

customize1

214966

214964

18,573.7

1.685

166014

customize2

114058

114057

9,804.5

1.676

165164

customize3

78425

7,318.5

1.825

179301

cart

67636

2,637.1

0.783

74915

48342

1,248.1

0.520

49605

shipping

45506

1,015.3

0.446

42868

billing

43273

775.2

0.369

34421

confirm

32304

558.8

0.356

33234

Total

2867875

2867812	63	0

187,836.8

1.509

141,797

60%

index

124730

12,089.6

1.523

139685

63352

8,830.6

2.031

200880

browse

112045

12,498.5

1.712

160759

browse_productline

95255

15,708.7

2.441

237663

productdetail

76345

2,876.3

1.027

54294

customize1

162232

18,689.0

1.684

166020

customize2

85986

9,854.6

1.676

165166

customize3

59204

7,360.9

1.821

179181

cart

50789

2,660.5

0.787

75493

36118

1,238.0

0.516

49397

shipping

33874

1,007.6

0.446

42868

billing

32199

769.1

0.367

34421

confirm

24222

558.6

0.354

33234

Total

3824226

3824163	63	0

281,978.8

1.509

141,814

40%

index

83212

12,118.3

1.523

139744

42025

8,798.0

2.031

200888

browse

74794

12,525.4

1.710

160696

browse_productline

64037

15,864.1

2.441

237719

productdetail

51244

2,895.5

1.025

54219

customize1

107810

18,652.6

1.684

166020

customize2

56786

9,774.5

1.675

165170

customize3

38995

7,288.8

1.822

179360

cart

33924

2,654.6

0.782

75088

24084

1,253.3

0.521

49933

shipping

22701

1,014.2

0.445

42868

billing

21595

774.6

0.367

34421

confirm

16171

560.1

0.353

33234

Total

4461604

4461541	63	0

376,152.5

1.508

141,809

20%

index

41588

12,155.9

1.522

139779

20779

8,728.4

2.031

200879

browse

37314

12,541.4

1.709

160730

browse_productline

31753

15,779.1

2.440

237641

productdetail

25391

2,874.3

1.023

54134

customize1

53800

18,677.4

1.683

166019

customize2

28560

9,863.8

1.674

165162

customize3

19641

7,362.4

1.820

179258

cart

16898

2,668.6

0.785

75521

12019

1,226.7

0.508

48808

shipping

11332

1,015.8

0.445

42868

billing

10798

777.2

0.366

34421

confirm

8101

563.0

0.352

33234

Total

4779578

4779515	63	0

470,386.6

1.508

141,803

index

0.000

browse

0.000

browse_productline

0.000

productdetail

0.000

customize1

0.000

customize2

0.000

customize3

0.000

cart

0.000

shipping

0.000

billing

0.000

confirm

0.000

Total

4779578

4779515	63	0

470,386.6

1.508

141,803

Errors for Power Workload

Configuration Errors

No Configuration Errors Found

Quality of Service Errors

No QOS Errors Found

Validation Errors

No Validation Errors Found

Request Distribution Errors

No Request Distribution Errors Found

Controller Systems

Controller1
HW vendor	IBM Corporation
Model	IBM xSeries 336
CPU Description	Intel Xeon 2800 MHz
Memory Amount (GB)	3 GB
Operating System	SUSE Linux Enterprise 10 Service Pack 2
JVM Vendor	IBM Corporation
JVM Version	Java(TM) SE Runtime Environment (build pxi3260sr8-20100409_01(SR8))

Measurement Devices

Power Analyzer pwr1
HW vendor	Yokogawa Electric International Pte. Ltd.
Model	WT210
Serial Number	91J919399
Connectivity	RS-232
Input Connection	Default
Calibration Institute	NIST
Accredited By	Yokogawa Corporation of America
Calibration Label	Cert# 083111-91J919399
Date of Calibration	31-Aug-2011
PTDaemon Host System	See Controller1
PTDaemon Host OS	See Controller1
PTDaemon Version	1.4.0-35d280e9
Setup Description	Server Power Supply 1

Temperature Sensor
Hardware Vendor	Digi International
Model	Watchport/H
Driver Version	4.20.0.0
Connectivity	USB
PTDaemon Host System	See Controller1
PTDaemon Host OS	See Controller1

Power and Temperature Summary

Iteration	Target Load	Average Active Power(W)	Minimum Ambient Temperature
0	100%	415	22.1
	80%	372	22.1
	60%	320	22.1
	40%	253	22.0
	20%	212	22.0
	Active Idle	139	22.1
	Averages	285	22.0
Line Standard		Elevation(m)	Minimum Temperature
230V / 50 Hz / 1 phase / 2 wires		149 m	22.0

Power Details for Device pwr0

Iterations	Target Load	Average Voltage(V)	Voltage Range(V)	Average Current(A)	Current Range(A)	Average Power Factor	Average Active Power(W)	Power Measurement Uncertainty(%)
0	100%	203	300	2.13	2.00	0.959	415	0.3
	80%	203	300	1.92	2.00	0.952	372	0.3
	60%	203	300	1.67	2.00	0.943	320	0.3
	40%	203	300	1.34	2.00	0.929	253	0.4
	20%	203	300	1.13	2.00	0.919	212	0.4
	Active Idle	204	300	0.779	2.00	0.876	139	0.6
Averages		203		1.50		0.930	285

For questions about this result, please contact the submitter: IBM

First published at SPEC.org on 26-Jan-2012
