SPECstorage™ Solution 2020_genomics Result

Copyright © 2016-2024 Standard Performance Evaluation Corporation

New H3C Technologies Co., Ltd. SPECstorage Solution 2020_genomics = 200 Jobs
H3C UniServer R4900G6 Ultra Overall Response Time = 0.10 msec


Performance

Business
Metric
(Jobs)
Average
Latency
(msec)
Jobs
Ops/Sec
Jobs
MB/Sec
100.07510000848
200.079200001700
300.079300002547
400.083400013397
500.085500014251
600.087600015092
700.089700015947
800.091800026795
900.093900027641
1000.0961000028491
1100.0981100029345
1200.10112000210191
1300.10313000311045
1400.10714000311891
1500.11015000312739
1600.11216000413585
1700.11517000314441
1800.12018000415289
1900.12319000416140
2000.12720000516983

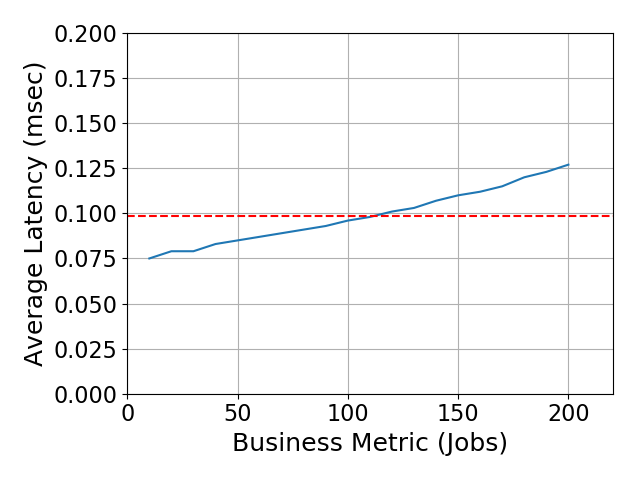

Performance Graph


Product and Test Information

H3C UniServer R4900G6 Ultra
Tested byNew H3C Technologies Co., Ltd.
Hardware Available3/2024
Software Available3/2024
Date Tested3/2024
License Number9066
Licensee LocationsHangzhou,China

The H3C UniServer R4900G6 Ultra is 2U rackmount server powered by dual Intel Xeon Platinum 8592+ processor with 128 cores (2x 64cores). The server provides more processing power with Hyper-Threading enabled by default in BIOS to enable 256 threads. The server supports high memory bandwidth memory technology with 32 DIMMs of 5600 MT/s DDR5 memory. Local storage supports up to 18 standard PCIe slots and up to 45 hard disk slots, of which only 24 slots are supported by NVMe SSD. 96% power supply energy efficiency and a standard operating temperature design of 5 ℃ to 45 ℃ can provide users with higher energy efficiency returns.

Solution Under Test Bill of Materials

Item NoQtyTypeVendorModel/NameDescription
112U Rackmount serverNew H3C Technologies Co., Ltd.H3C UniServer R4900G6 UltraThe H3C UniServer R4900G6 Ultra is 2U rackmount server powered by dual Intel Xeon Platinum 8592+ processor with 128 cores (2x 64cores). This system supports 24x 2.5" hot-swap NVMe drive bays and only 4 slots are used for this storage testing. The system has 16 DIMMs of DDR5 with speed up to 5600 MT/s.

Configuration Diagrams

  1. H3C UniServer R4900G6 Ultra

Component Software

Item NoComponentTypeName and VersionDescription
1SUTLinuxRHEL9.0Operating system for load generation and benchmark execution.

Hardware Configuration and Tuning - Physical

Component Name
Parameter NameValueDescription
N/AN/AN/A

Hardware Configuration and Tuning Notes

None

Software Configuration and Tuning - Physical

Component Name
Parameter NameValueDescription
N/AN/AN/A

Software Configuration and Tuning Notes

None

Service SLA Notes

None

Storage and Filesystems

Item NoDescriptionData ProtectionStable StorageQty
1MEMBLAZE PBlaze7 7946,NVME,Gen5,3.2TB DisksRAID-0 volumeStable Storage4
Number of Filesystems1
Total Capacity11.64 TiB
Filesystem Typexfs

Filesystem Creation Notes

Software RAID-0 was created by running mdadm command on the 4 NVME disks. Filesystem was created using mkfs.xfs command on the RAID-0 for benchmarking.

Storage and Filesystem Notes

The XFS filesystem was mounted with noatime, defaults options.

Transport Configuration - Physical

Item NoTransport TypeNumber of Ports UsedNotes
1N/AN/AN/A

Transport Configuration Notes

None

Switches - Physical

Item NoSwitch NameSwitch TypeTotal Port CountUsed Port CountNotes
1N/AN/AN/AN/AN/A

Processing Elements - Physical

Item NoQtyTypeLocationDescriptionProcessing Function
12CPUSUTIntel Xeon Platinum 8592+ @1.9 GHzRAID-0, Storage functions

Processing Element Notes

None

Memory - Physical

DescriptionSize in GiBNumber of InstancesNonvolatileTotal GiB
System memory in storage node6416V1024
Grand Total Memory Gibibytes1024

Memory Notes

The system has 32 DIMM slots for DDR5 supports up to 5600 MT/s.

Stable Storage

The XFS file system provides journaling support for filesystem protection.

Solution Under Test Configuration Notes

The benchmark was run on a single H3C UniServer R4900G6 Ultra server with local NVMe storage disks. RAID-0 config was created using the drives and XFS filesystem was set up on the RAID-0. RHEL-9.0 OS was installed on a SATA SSD. There were no additional external clients or storage devices or network devices were connected to this setup. The system has dual Intel Xeon Platinum 8592+ processor with 128 cores (2x 64cores), and 4x MEMBLAZE PBlaze7 7946 NVMe SSD were connected to run this benchmark. The testing was done with Hyper-Threading enabled in BIOS to enable 256 threads for more processing power.

Other Solution Notes

None

Dataflow

This single server setup has a RAID-0 partition created on the local storage drives and XFS file system was created on the RAID. Data gets written directly on to the XFS filesystem and on to the NVMe storage devices. No other external storage device was used.

Other Notes

The benchmark was run on a single H3C UniServer R4900G6 Ultra server using its local NVMe drives. No other client systems, or external storage devices or networking devices were connected to this test system. Benchmarking was done on Red Hat Enterprise Linux release 9.0 (Plow) using the default kernel 5.14.0-70.22.1.el9_0.x86_64.

The Spectre or Meltdown (CVE-2017-5754, CVE-2017-5753, CVE-2017-5715) fix were applied to CPU and OS by vendors.

Other Report Notes

None


Generated on Sun Mar 3 21:57:38 2024 by SpecReport
