SPECsfs97_R1.v3 Result

EMC Corp. :	Celerra NS700 Failover Cluster (one secondary)
SPECsfs97_R1.v3 =	36335 Ops/Sec (Overall Response Time = 2.23 msec)

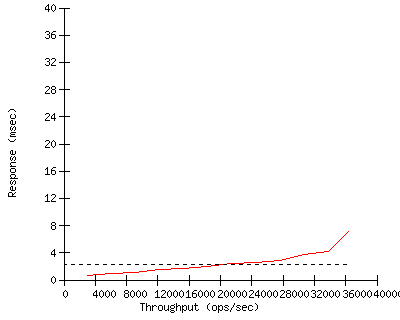

Performance

Throughput (ops/sec)	Response (msec)
3018	0.7
6128	0.9
9123	1.1
12235	1.5
15284	1.7
18354	2.0
21456	2.5
24555	2.6
27618	2.9
30686	3.7
33830	4.2
36335	7.1

Configuration

Server Configuration and Availability
Vendor	EMC Corp.
Hardware Available	February 2004
Software Available	February 2004
Date Tested	February 2004
SFS License Number	47
Licensee Locations	Hopkinton, MA

CPU, Memory and Power

Model Name Celerra NS700 Failover Cluster (one secondary)

Processor 3.06GHz Intel Xeon P4

# of Processors 2

Primary Cache Execution Trace Cache 12K uOPs + Data Cache 8KB

Secondary Cache 512KB (unified)

Other Cache N/A

UPS N/A

Other Hardware N/A

Memory Size 4 GB

NVRAM Size N/A

NVRAM Type N/A

NVRAM Description N/A

Server Software

OS Name and Version Dart 5.2

Other Software Redhat Linux 7.2 on Control Station

File System UxFS

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 4

Fileset Size 350.4 GB

Network Subsystem
Network Type	Jumbo Gigabit Ethernet
Network Controller Desc.	Gigabit Ethernet Controller
Number Networks	1
Number Network Controllers	2
Protocol Type	TCP

Switch Type Cisco 6509 Gbit Switch (Jumbo)

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 4 [2 per Storage Processor (SP), 2 SPs]

Number of Disks 131

Number of Filesystems 1

File System Creation Ops N/A

File System Config striped (8KB element size), across 126 disk (42 LUNs)

Disk Controller Integrated 2Gb Fibre Channel

# of Controller Type 4 [2 per SP]

Number of Disks 131 (dual ported)

Disk Type Seagate Fibre Channel 146GB 10k-rpm

File Systems on Disks OS and UxFS Log (5), Filesystem fs1 (126)

Special Config Notes 4GB cache per SP on storage array. 3072 MB mirrored write cache per SP. See notes below.

Load Generator (LG) Configuration
Number of Load Generators	7
Number of Processes per LG	32
Biod Max Read Setting	5
Biod Max Write Setting	5

LG Type LG1

LG Model Dell 2450

Number and Type Processors 2x 1G PIII

Memory Size 1 GB

Operating System Linux 2.4.20-24.7 smp

Compiler GCC 2.96

Compiler Options None

Network Type Intel 82543GC GbE

LG Type LG2

LG Model Dell 2450

Number and Type Processors 2x 1G PIII

Memory Size 2 GB

Operating System Linux 2.4.20-24.7 smp

Compiler GCC 2.96

Compiler Options None

Network Type Intel 82543GC GbE

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1..6 LG1 1 /fs1../fs1 N/A

7 LG2 1 /fs1../fs1 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1..6	LG1	1	/fs1../fs1	N/A
7	LG2	1	/fs1../fs1	N/A

Other Notes

Failover is supported by an additional Celerra NS700 Data Mover that operates in
standby mode. In the event of a Data Mover failure, this unit takes over the
function of the failed unit. The standby Data Mover does not contribute to
the performance of the system and is not included in the processor, memory,
or other components listed above.
Server tuning:
param ufs inoBlkHashSize=170669 (inode block hash size)
param ufs inoHashTableSize=1218761 (inode hash table size)
param ufs updateAccTime=0 (disable access-time updates)
param nfs withoutCollector=1 (enable NFS-to-CPU thread affinity)
param file prefetch=0 (disable Dart read prefetch)
param mkfsArgs dirType=DIR_COMPAT (Compatability mode directory style)
param kernel maxStrToBeProc=16 (no. of network streams to process at once)
param kernel outerLoop=8 (8 consecutive iterations of network packets processing)
param kernel heapReserve=90000 (Reserve memory frames for the heap)
file initialize nodes=1000000 dnlc=1656000 (no. of inodes, no. of dirctory name lookup cache entries)
nfs start openfiles=980462 nfsd=4 (no. of open files and 4 NFS daemons)
param ufs nFlushCyl=32 (no. of UxFS cylinder group blocks flush threads)
param ufs nFlushDir=32 (no. of UxFS directory and indirect blocks flush threads)
param ufs nFlushIno=32 (no. of UxFS inode blocks flush threads)
camconfig nexus depth=8 order=0xa1 limit=10 (increase the I/O queue depth to 8)
Storage array notes:
The storage array was configured into 42 RAID-0 groups of 3 spindles each (126 total disk spindles)
The stripe size for all 42 RAID-0 LUNs was 8KB and each LUN was 30GB.
The filesystem is built on a volume made by striping across all 42 LUNs
on the CX700 storage array with an 8KB stripe size.
The default UFS log of 64MB was used. The UFS log and OS shared the same 4+1 RAID-5 group.
The storage array has dual storage processor units that work as
an active-active failover pair. The mirrored write cache is backed up
with a battery unit capable of saving the write cache to disk in the event of
a power failure. In the event of a storage array failure, the second
storage processor unit is capable of saving all state that was managed
by the first (and vise-versa), even with a simultaneous power failure.
When one of the storage processors or battery units are off-line, the
system turns off the write cache and writes directly to disk before
acknowledging any write operations.
The length of time the battery can support the retention of data is 2
minutes - that is sufficient to write all necessary data twice.
Storage processor A could have written 99% of its memory to disk and
then fail. In that case storage processor B has enough battery to
store its copy of A's data as well as its own.

LG Type	LG1
LG Model	Dell 2450
Number and Type Processors	2x 1G PIII
Memory Size	1 GB
Operating System	Linux 2.4.20-24.7 smp
Compiler	GCC 2.96
Compiler Options	None
Network Type	Intel 82543GC GbE
