SPECsfs97.v3 Result

Network Appliance, Inc. :	NetApp F630 (TCP, 28x9GB FCAL, FDDI)
SPECsfs97.v3 =	3279 Ops/Sec (Overall Response Time = 3.59 msec)

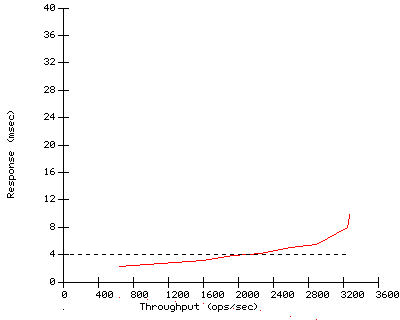

Performance

Throughput (ops/sec)	Response (msec)
326	1.9
650	2.2
963	2.5
1286	2.9
1604	3.2
1953	3.8
2257	4.2
2600	5.0
2902	5.5
3247	8.0
3275	9.6
3279	9.8

Configuration

Server Configuration and Availability
Vendor	Network Appliance, Inc.
Hardware Available	March 1998
Software Available	March 1998
Date Tested	January 1998
SFS License Number	33
Licensee Locations	Santa Clara, CA

CPU, Memory and Power

Model Name NetApp F630 (TCP, 28x9GB FCAL, FDDI)

Processor 500MHz Alpha 21164A

# of Processors 1

Primary Cache 8KBI+8KBD on chip

Secondary Cache 96KB(I+D) on chip

Other Cache 2MB(I+D) off chip

UPS N/A

Other Hardware N/A

Memory Size 512MB

NVRAM Size 32MB

NVRAM Type NVRAM SIMMs on PCI card

NVRAM Description 6-month battery-backed shelf-life

Server Software

OS Name and Version NetApp OS version 5.0 beta2

Other Software N/A

File System WAFL

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes see notes

Fileset Size 32.0 GB

Network Subsystem
Network Type	FDDI
Network Controller Desc.	x1102 (SA TP) MLT3 FDDI Adaptor
Number Networks	2 (N1-N2)
Number Network Controllers	2
Protocol Type	TCP

Switch Type N/A

Bridge Type N/A

Hub Type N/A

Other Network Hardware DEC Concentrator

Disk Subsystem and Filesystems

Number Disk Controllers 1

Number of Disks 28

Number of Filesystems 1

File System Creation Ops default

File System Config two RAID groups of 14 disks each

Disk Controller

# of Controller Type

Number of Disks

Disk Type

File Systems on Disks

Special Config Notes

Disk Controller FibreChannel Card, QLA 2100

# of Controller Type 1

Number of Disks 28 (4x7-disk JBOD shelves)

Disk Type 9GB Seagate Barracuda (ST19171FC)

File Systems on Disks F1

Special Config Notes none

Load Generator (LG) Configuration
Number of Load Generators	6
Number of Processes per LG	5
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Sun Microsystems Ultra 1/170

Number and Type Processors 1 167-MHz UltraSPARC

Memory Size 256MB

Operating System Solaris 2 version 2.5.1

Compiler gcc 2.6.3

Compiler Options see SPEC-supplied wrapper & makefile

Network Type FDDI

LG Type LG2

LG Model Sun Microsystems Ultra 2

Number and Type Processors 1 168-MHz UltraSPARC-II

Memory Size 256MB

Operating System Solaris 2 version 2.5.1

Compiler gcc 2.6.3

Compiler Options see SPEC-supplied wrapper & makefile

Network Type FDDI

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1 LG1 N1 F1 N/A

2 LG2 N1 F1 N/A

3 LG1 N2 F1 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1	LG1	N1	F1	N/A
2	LG2	N1	F1	N/A
3	LG1	N2	F1	N/A

Other Notes

The NetApp F630 filer uses RAID to combine sets of disks
into one or more RAID groups used by one or more file systems.
As configured for this benchmark, two RAID groups of 14 disks
were created and assigned to the same single large file system.
The NetApp F630 uses a real-time embedded kernel that processes
NFS requests right from the network layer without any NFS daemons.
It uses NVRAM (non-volatile memory) to improve performance.
To run the SFS benchmark, configure the F630 by adding:
options minra 1 nosnap 1 nosnapdir 1 nfs.tcp.enable 1
to /etc/rc.
These option settings are for reproducibility and do not impact
performance except for minra, which minimizes file read-ahead, and
nfs.tcp.enable, which enables NFS over TCP.

Tue Jul 7 16:24:52 1998

First published at SPEC.org on 16-Jun-1998
