SPECsfs2008_nfs.v3 Result

Avere Systems, Inc. : FXT 3800 (32 Node Cluster, Cloud Storage Config)
SPECsfs2008_nfs.v3 = 1592334 Ops/Sec (Overall Response Time = 1.24 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
165131 0.3
330450 0.4
495831 0.5
661422 0.7
828151 0.8
993323 1.1
1160562 1.3
1328345 2.0
1476954 3.6
1592334 5.8

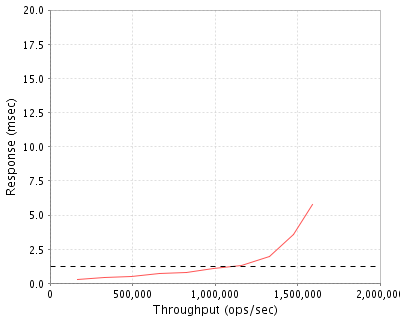

Performance Graph


Product and Test Information

Tested By Avere Systems, Inc.
Product Name FXT 3800 (32 Node Cluster, Cloud Storage Config)
Hardware Available July 2013
Software Available July 2013
Date Tested March 18 2013
SFS License Number 9020
Licensee Locations Pittsburgh, PA
USA

The Avere Systems FXT 3800 Edge filer appliance provides Hybrid NAS storage that allows performance to scale independently of capacity. The FXT 3800 is built on a 64-bit architecture that is managed by Avere OS software. FXT Edge filer clusters scale to as many as 50 nodes, support millions of IO operations per second, and deliver over 100 GB/s of bandwidth. The Avere OS Hybrid NAS software dynamically organizes data into RAM, SSD and SAS tiers. Active data is placed on the FXT Edge filer while inactive data is placed on the Core filer that is optimized for capacity. The FXT 3800 accelerates performance of all read, write, and directory/metadata operations, and supports both NFSv3 and CIFS protocols. The AvereOS Local Directories feature enables the Avere Edge filer cluster to immediately acknowledge all filesystem updates and later flush the directory data and user data to the Core filer. The tested configuration consisted of (32) FXT 3800 Edge filer nodes. The system also included (1) OpenSolaris ZFS server in the role of a single Core filer mass storage system exporting a single filesystem. A WAN simulation kernel module was configured into AvereOS to introduce 150 milliseconds of WAN latency (75 milliseconds in each direction) for all communications with the Core filer, thus simulating a cloud storage infrastructure. In this configuration, Avere's AOS presents a single filesystem to all clients and provides instantaneous responses to client operations, despite the 150 millisecond network roundtrip times present with all communications to the Core filer.

Configuration Bill of Materials

Item No Qty Type Vendor Model/Name Description
1 32 Storage Appliance Avere Systems, Inc. FXT 3800 Avere Systems Hybrid NAS Edge filer appliance running Avere OS V3.0 software. Includes (13) 600 GB SAS Disks and (2) 400GB SSD Drives.
2 1 Server Chassis Genstor CSRM-4USM24ASRA 4U 24-Drive Chassis for OpenSolaris Core filer storage NFS Server.
3 1 Server Motherboard Genstor MOBO-SX8DTEF Supermicro X8DTE Motherboard for OpenSolaris Core filer storage NFS Server.
4 2 CPU Genstor CPUI-X5620E Intel Westmere Quad Core 2.4 GHz 12MB L3 CPU for OpenSolaris Core filer storage NFS Server.
5 2 CPU Heat Sink Genstor CPUI-2USMP0038P SM 2U 3U P0038P Heat Sink for OpenSolaris Core filer storage NFS Server.
6 12 Memory Arrow MT36JSZF1G72PZ-1GD1 Micron DRAM Module DDR3 SDRAM 8GByte 240 RDIMM for OpenSolaris Core filer storage NFS Server.
7 1 Disk Drive Seagate ST500NM0011 Seagate 500GB Constellation ES.3 SATA2 System Disk for OpenSolaris Core filer storage NFS Server.
8 69 Disk Drive Seagate ST4000NM0033 Seagate 4TB Constellation ES.3 SATA2 Disks for OpenSolaris Core filer storage NFS Server.
9 1 RAID Controller LSI LSI00209 LSI 4 internal/4 external port 6Gb/s SATA+SAS RAID card, x8 PCIe 2.0 host interface for OpenSolaris Core filer storage NFS Server.
10 2 JBOD Disk Shelf Supermicro 846BE16-R920B Supermicro 4U 24-Drive JBOD Chassis with SAS2 Expander for OpenSolaris Core filer storage NFS Server.
11 2 JBOD Disk Shelf Supermicro CSE-PTJBOD-CB1 JBOD Storage Power-up Control Board for OpenSolaris Core filer storage NFS Server JBOD Disk Shelf.
12 1 SAS Cabling Supermicro CBL-0108L-02 iPass (mini SAS) to iPass (mini SAS) SAS controller to internal backplane connection for OpenSolaris Core filer storage NFS Server.
13 2 SAS Cabling Supermicro CBL-0166L SAS BP External Cascading Cable for OpenSolaris Core filer storage NFS Server JBOD Disk Shelf.
14 3 SAS Cabling Supermicro CBL-0167L SAS 936EL1 BP 1-Port Internal Cascading Cable for OpenSolaris Core filer storage NFS Server JBOD Disk Shelf.
15 1 Network Card Intel E10G42BTDA Intel 10 Gigabit AF DA Dual Port Server Adapter for OpenSolaris Core filer storage NFS Server.

Server Software

OS Name and Version Avere OS V3.0
Other Software Core filer storage server runs OpenSolaris 5.11 svn_134, this package is available for download at http://okcosug.org/osol-dev-134-x86.iso
Filesystem Software Avere OS V3.0

Server Tuning

Name Value Description
Writeback Time 6 hours Files may be modified up to 6 hours before being written back to the Core filer storage system.
buf.autoTune 0 Statically size FXT memory caches.
buf.neededCleaners 16 Allow 16 buffer cleaner tasks to be active.
buf.InitialBalance.smallFilePercent 57 Tune smallFile buffer to use 57 percent of memory pages.
buf.InitialBalance.largeFilePercent 10 Tune largeFile buffers to use 10 percent of memory pages.
cfs.pagerFillRandomWindowSize 32 Increase the size of random IOs from disk.
cluster.dirmgrNum 128 Create 128 directory manager instances.
cluster.dirMgrConnMult 5 Multiplex directory manager network connections.
dirmgrSettings.unflushedFDLRThresholdToStartFlushing 5000000 Increase the directory log size.
dirmgrSettings.balanceAlgorithm 1 Balance directory manager objects across the cluster.
tokenmgrs.geoXYZ.fcrTokenSupported no Disable the use of full control read tokens.
tokenmgrs.geoXYZ.trackContentionOn no Disable token contention detection.
tokenmgrs.geoXYZ.lruTokenThreshold 14000000 Set a threshold for token recycling.
tokenmgrs.geoXYZ.maxTokenThreshold 14100000 Set maximum token count.
tokenmgrs.geoXYZ.tkPageCleaningStrictOrder no Optimize cluster data manager to write pages in parallel.
vcm.readdir_readahead_mask 0x700f Optimize readdir performance.
vcm.vcm_enableVdiskCacheingFsstats 2 Cache fsstat information at the vcm vdisk layer.
vcm.vcm_fsstatCachePeriod 21600 Cache fsstat information for duration specified in seconds.
initcfg:cfs.num_inodes 20000000 Increase in-memory inode structures.
initcfg:vcm.fh_cache_entries 14000000 Increase in-memory filehandle cache structures.
initcfg:vcm.name_cache_entries 15000000 Increase in-memory name cache structures.

Server Tuning Notes

21+2 RAID6 (RAIDZ2) array was created on the OpenSolaris Core filer storage server using the following Solaris commands:
zpool create vol0 raidz2 <drive1-23 4TB from shelf1>
zpool add vol0 raidz2 <drive1-23 4TB from shelf2>
zpool add vol0 raidz2 <drive1-23 4TB from shelf3>
zfs create -o quota=215t -o sharenfs=root=@0.0.0.0/0 vol0/wanboi4

Disks and Filesystems

Description Number of Disks Usable Size
Each FXT 3800 node contains (13) 600 GB 10K RPM SAS disks. All FXT data resides on these disks. 416 227.0 TB
Each FXT 3800 node contains (2) 400 GB eMLC SSD disks. All FXT data resides on these disks. 64 11.7 TB
Each FXT 3800 node contains (1) 250 GB SATA disk. System disk. 32 7.3 TB
The Core filer storage system contains (69) 4 TB SATA disks. The ZFS file system is used to manage these disks and the FXT nodes access them via NFSv3. 69 229.2 TB
The Core filer storage system contains (1) 500GB system disk. 1 465.7 GB
Total 582 475.6 TB
Number of Filesystems 1
Total Exported Capacity 223517.4 GB (OpenSolaris Core filer storage system capacity)
Filesystem Type TFS (Tiered File System)
Filesystem Creation Options Default on FXT nodes. OpenSolaris Core filer storage server ZFS filesystem created with commands:
zpool create vol0 raidz2 <drive1-23 4TB from shelf1>
zpool add vol0 raidz2 <drive1-23 4TB from shelf2>
zpool add vol0 raidz2 <drive1-23 4TB from shelf3>
zfs create -o quota=215t -o sharenfs=root=@0.0.0.0/0 vol0/wanboi4
Filesystem Config 21+2 RAID6 (RAIDZ2) configuration on OpenSolaris Core filer storage server, with 3 RAID sets in the zpool.
Fileset Size 193375.3 GB

Network Configuration

Item No Network Type Number of Ports Used Notes
1 10 Gigabit Ethernet 32 One 10 Gigabit Ethernet port used for each FXT 3800 Edge filer appliance.
2 10 Gigabit Ethernet 1 The Core filer storage system is connected via 10 Gigabit Ethernet with simulated latency of 150ms (75ms each direction.)

Network Configuration Notes

Each FXT 3800 was attached via a single 10 GbE port to one Gnodal GS7200 72 port 10 GbE switch. The load generating clients were attached to the same switch. The Core filer storage servers were also attached to the same switch. A WAN simulation software module on the FXT 3800 system was configured to inject 150ms (75ms in each direction) of WAN latency between the Avere Edge filer cluster and the Core filer. A 1500 byte MTU was used throughout the network.

Benchmark Network

An MTU size of 1500 was set for all connections to the switch. Each load generator was connected to the network via a single 10 GbE port. The SUT was configured with 32 separate IP addresses on one subnet. Each cluster node was connected via a 10 GbE NIC and was sponsoring 1 IP address.

Processing Elements

Item No Qty Type Description Processing Function
1 64 CPU Intel Xeon CPU E5645 2.40 GHz Hex-Core Processor FXT 3800 Avere OS, Network, NFS/CIFS, Filesystem, Device Drivers
2 2 CPU Intel Xeon E5620 2.40 GHz Quad-Core Processor OpenSolaris Core filer storage systems

Processing Element Notes

Each file server has two physical processors.

Memory

Description Size in GB Number of Instances Total GB Nonvolatile
FXT 3800 System Memory 144 32 4608 V
Core filer storage system memory 96 4 384 V
FXT 3800 NVRAM 2 32 64 NV
Grand Total Memory Gigabytes     5056

Memory Notes

Each FXT node has main memory that is used for the operating system and for caching filesystem data. Each FXT contains two (2) super-capacitor-backed NVRAM modules used to provide stable storage for writes that have not yet been written to disk.

Stable Storage

The Avere filesystem logs writes and metadata updates to the PCIe NVRAM modules. Filesystem modifying NFS operations are not acknowledged until the data has been safely stored in NVRAM. In the event of primary power loss to the system under test (SUT,) the charged super-capacitor provides power to the NVRAM circuitry to commit the NVRAM log data to persistent flash memory on the NVRAM card. The NVRAM log data is indefinitely persisted to on-board flash memory. When power is restored to the SUT, the NVRAM log data is restored from the persistent on-board flash to the NVRAM subsystem, and during startup, AvereOS replays this log data to the on-disk filesystem thus assuring a stable storage implementation. The above described implementation handles cascading power failures in the same manner: persist NVRAM to stable flash upon power failure, restore NVRAM log data from flash and replay logs to filesystem upon power-on.

System Under Test Configuration Notes

The system under test consisted of (32) Avere FXT 3800 nodes. Each node was attached to the network via 10 Gigabit Ethernet. Each FXT 3800 node contains (13) 600 GB SAS disks and (2) 400GB eMLC SSD drives. The OpenSolaris Core filer storage system was attached to the network via a single 10 Gigabit Ethernet link. The Core filer storage server was a 4U Supermicro server configured with a software RAIDZ 21+2 RAID6 array consisting of (23) 4TB SATA disks. There were (2) additional JBOD shelves, each with (23) drives and SAS connectivity to the Core filer. Each ZFS filesystem consisted of (3) RAIDZ2 sets totaling (69) 4TB SATA disks.

Other System Notes

N/A

Test Environment Bill of Materials

Item No Qty Vendor Model/Name Description
1 16 Supermicro SYS-1026T-6RFT+ Supermicro Server with 48GB of RAM running CentOS 6.4 (Linux 2.6.32-358.0.1.el6.x86_64)
2 1 Gnodal GS7200 Gnodal 72 Port 10 GbE Switch. 72 SFP/SFP+ ports

Load Generators

LG Type Name LG1
BOM Item # 1
Processor Name Intel Xeon E5645 2.40GHz Hex-Core Processor
Processor Speed 2.40 GHz
Number of Processors (chips) 2
Number of Cores/Chip 6
Memory Size 48 GB
Operating System CentOS 6.4 (Linux 2.6.32-358.0.1.el6.x86_64)
Network Type Intel Corporation 82599EB 10-Gigabit SFI/SFP+

Load Generator (LG) Configuration

Benchmark Parameters

Network Attached Storage Type NFS V3
Number of Load Generators 16
Number of Processes per LG 512
Biod Max Read Setting 2
Biod Max Write Setting 2
Block Size 0

Testbed Configuration

LG No LG Type Network Target Filesystems Notes
1..16 LG1 1 /vol0/wanboi4 LG1 nodes are all connected to the same single network switch.

Load Generator Configuration Notes

All clients were mounted against the single filesystem on all FXT nodes.

Uniform Access Rule Compliance

Each load-generating client hosted 512 processes. The assignment of 512 processes to 32 network interfaces was done such that they were evenly divided across all network paths to the FXT appliances. The filesystem data was evenly distributed across all disks and FXT appliances and Core filer storage servers.

Other Notes

N/A

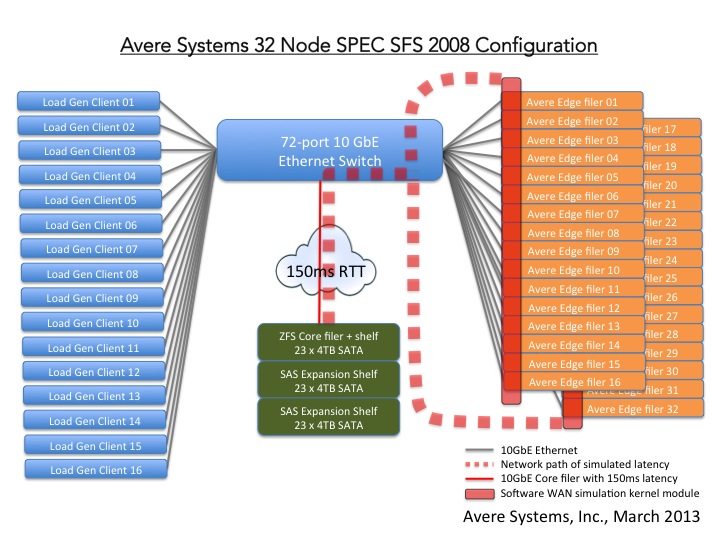

Config Diagrams
