SPECsfs2008_cifs Result

EMC Corporation : Celerra Gateway NS-G8 Server Failover Cluster, 3 Datamovers (1 stdby) / Symmetrix V-Max
SPECsfs2008_cifs = 118463 Ops/Sec (Overall Response Time = 1.92 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
11824 0.7
23685 0.8
35572 0.9
47399 1.1
59418 2.0
71119 2.2
83073 2.4
95116 2.7
107243 3.3
118463 6.4

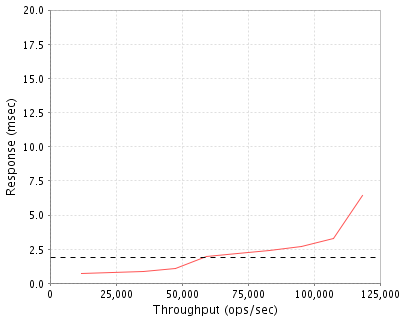

Performance Graph


Product and Test Information

Tested By EMC Corporation
Product Name Celerra Gateway NS-G8 Server Failover Cluster, 3 Datamovers (1 stdby) / Symmetrix V-Max
Hardware Available December 2009
Software Available December 2009
Date Tested December 2009
SFS License Number 47
Licensee Locations Hopkinton, MA

The NS-G8 Gateway Server system is a consolidation of file-based servers with NAS (NFS, CIFS) applications configured in a 2+1 High-Availability cluster. The servers deliver network services over high-speed Gigabit Ethernet. The cluster tested here consists of two active datamovers that each provides 4 Jumbo-frame capable Gigabit Ethernet interfaces and one stand-by datamover to provide high availability. The NS-G8 is a gateway to Shared Storage Array Symmetrix V-Max. The Symmetrix V-Max is a new storage architecture using 4 V-Max engines interconnected via a set of multiple active 4 Gbit/s FC HBAs connecting to the fabric.

Configuration Bill of Materials

Item No Qty Type Vendor Model/Name Description
1 1 Enclosure EMC NSG8-DME0 Celerra NS-G8 empty datamover add on enclosure
2 1 Enclosure EMC NSG8-DME1 Celerra NS-G8 empty datamover add on enclosure
3 3 Datamover EMC NSG8-DM-8A Celerra NS-G8 datamover, 4 GbE ports, 4 FC ports
4 1 Control station EMC NSG8-CSB Celerra NS-G8 control station (Administration only)
5 3 Software EMC NSG8-UNIX-L Celerra NS-G8 UNIX License
6 1 Intelligent Storage Array Engine EMC SB-64-BASE Symmetrix V-Max Base Engine, 64 GB Cache
7 3 Intelligent Storage Array Engine EMC SB-ADD64NDE Symmetrix V-Max Add Engine, 64 GB Cache
8 16 FE IO Module EMC SB-FE80000 Symmetrix V-Max Front End IO Module with multimode SFP's
9 16 Drive Enclosure EMC SB-DE15-DIR V-Max Direct Connect Storage Bay, Drive Enclosure
10 96 Flash Disk STEC NF4F14001B V-Max Enterprise Flash Drive (EFD) 400 GB 4 Gbit/s FC optical
11 4 FC Disk SEAGATE NS4154501B V-Max Cheetah 450 GB 15K.6 4 Gbit/s FC Disks
12 4 Standby Power Supply EMC SB-DB-SPS V-Max Standby Power Supply
13 1 FC Switch EMC EMC DS-300B 24 port Fibre Channel Switch

Server Software

OS Name and Version DART 5.6.46.4
Other Software EMC Celerra Control Station Linux 2.6.9-67.0.4.5611
Filesystem Software Celerra UxFS File System

Server Tuning

Name Value Description
ufs syncInterval 22500 Timeout between UFS log flushes
cifs vnodepercent 100 Vnode percentage flush start
cifs M83search 0 Search in the 8.3 name space is disable if the M256 search has failed
ufs inoBlkHashSize 170669 Inode block hash size
ufs updateAccTime 0 Disable access time updates
cifs prealloc 1 Preallocates file space on creation, rather than having the IO expand the file
file prefetch 0 Disable DART read prefetch
ufs inoHighWaterMark 65536 Number of dirty inode buffers per filesystem
cifs enableFileFiltering 0 Bit vector to enable various forms of file filtering
ufs inoHashTableSize 2005027 Inode hash table size
cifs maxMpxCount 1024 Unacknowledged command count max
kernel maxStrToBeProc 24 Number of network streams to process at once
ufs nFlushIno 48 Number of UxFS inode blocks flush threads
kernel outerLoop 16 Number of consecutive iterations of network packets processing
kernel buffersWatermarkPercentage 5 Flushing buffer cache threashold

Server Tuning Notes


Disks and Filesystems

Description Number of Disks Usable Size
This set of 96 EFD disks is divided into 48 2-disk RAID1 pairs, each with 4 LUs per drive, exported as 192 logical volumes. All data file systems reside on these disks. 96 18.8 TB
This set of FC disks consists of 2 2-disk RAID1 pairs, each with 2 LUs per drive, exported as 8 logical volumes. These disks are reserved for Celerra system use 4 900.0 GB
Total 100 19.6 TB
Number of Filesystems 8
Total Exported Capacity 17600 GB
Filesystem Type UxFS
Filesystem Creation Options Default
Filesystem Config Each filesystem is striped (32 KB elementsize), across 48 disks (192 logical volumes) for fs1 fs2 fs3 fs4 fs5 fs6 fs7 and fs8
Fileset Size 13826.4 GB

The stripe size for all RAID1 logical volumes was 32 KB. Each logical volume was 100 GB. The filesystem named fs1 was built on a Celerra meta volume made by striping across 24 logical volumes on the first V-Max Engine. The filesystem named fs2 was built on a Celerra meta volume made by striping across 24 logical volumes on same V-Max Engine. fs3 and fs4 were configured similar on the second V-Max Engine. Same with fs5 and fs6 on 3rd V-Max Engine and fs7 and fs8 on the last V-Max Engine.

Network Configuration

Item No Network Type Number of Ports Used Notes
1 Jumbo Gigabit Ethernet 8 This is the Gigabit network interface used for both datamovers.

Network Configuration Notes

All Gigabit network interfaces were connected to a Cisco 6509 switch.

Benchmark Network

An MTU size of 9000 was set for all connections to the switch. Each datamover was connected to the network via 4 ports. The LG1 class workload machines were connected with one port each.

Processing Elements

Item No Qty Type Description Processing Function
1 4 CPU Dual Intel Quad-core 2.3 GHz Xeon E5345 8 MB L2 cache for each datamover server. 4 chips active for the workload. (2 standby not in the quantity) CIFS protocol, UxFS filesystem

Processing Element Notes

Each datamover has two physical processors.

Memory

Description Size in GB Number of Instances Total GB Nonvolatile
Each datamover main memory. (4 GB in the standby datamover not in the quantity) 4 2 8 V
V-Max storage array battery backed global memory. (64 GB per V-Max engine) 64 4 256 NV
Grand Total Memory Gigabytes     264

Memory Notes

The Symmetrix V-Max was configured with a total of 256 GB of memory. The memory is backed up with sufficient battery power to safely destage all the cached data onto the disk in the event of a power failure.

Stable Storage

8 CIFS file systems were used. Each RAID1 pair had 4 LUs bound on it. Each file system was striped over a quarter of the logical volumes. The storage array had 8 Fibre Channel connections, 4 per datamover.

System Under Test Configuration Notes

The system under test consisted of 2 NS-G8 Gateway datamovers attached to a Symmetrix V-Max Storage Array with 4 FC links. The datamovers were running DART 5.6.46.4. 4 GbE Ethernet ports per datamover were connected to the network.

Other System Notes

Failover is supported by an additional Celerra datamover that operates in stand-by mode. In the event of the datamover failure, this unit takes over the function of the failed unit. The stand-by datamover does not contribute to the performance of the system and it is not included in the components listed above.

Test Environment Bill of Materials

Item No Qty Vendor Model/Name Description
1 24 Dell Dell PowerEdge 1850 Dell server with 1 GB RAM and the Linux 2.6.9-42.ELsmp operating system

Load Generators

LG Type Name LG1
BOM Item # 1
Processor Name Intel(R) Xeon(TM) CPU 3.60GHz
Processor Speed 3.6 GHz
Number of Processors (chips) 2
Number of Cores/Chip 2
Memory Size 1 GB
Operating System Linux 2.6.9-42.ELsmp
Network Type 1 x Broadcom BCM5704 NetXtreme Gigabit Ethernet

Load Generator (LG) Configuration

Benchmark Parameters

Network Attached Storage Type CIFS
Number of Load Generators 24
Number of Processes per LG 32

Testbed Configuration

LG No LG Type Network Target Filesystems Notes
1..24 LG1 1 /fs1,/fs2,/fs3.../fs7,/fs8 N/A

Load Generator Configuration Notes

All filesystems were mounted on all clients, which were connected to the same physical and logical network.

Uniform Access Rule Compliance

Each client has the same file systems mounted from each of the two active datmovers.

Other Notes

Failover is supported by an additional Celerra datamover that operates in stand-by mode. In the event of the datamover failure, this unit takes over the function of the failed unit. The stand-by datamover does not contribute to the performance of the system and it is not included in the components listed above.

Symmetrix V-Max was configured with 256 GB of memory, 64 GB per V-Max engine. The memory is backed up with sufficient battery power to safely destage all the cached data onto the disk in the event of a power failure.

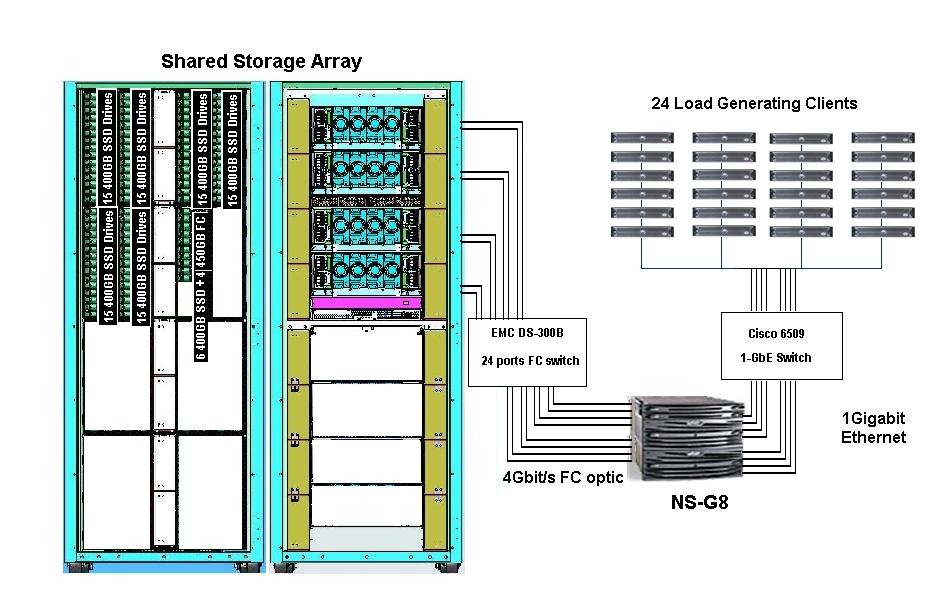

Config Diagrams


Generated on Wed Jan 13 10:46:23 2010 by SPECsfs2008 HTML Formatter
Copyright © 1997-2008 Standard Performance Evaluation Corporation

First published at SPEC.org on 13-Jan-2010
