SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2026 Standard Performance Evaluation Corporation
| Lenovo Global Technology Think System SR630 V4 | SPECpower_ssj2008 = 24,865 overall ssj_ops/watt | ||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
| Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Jul 23, 2026 |
| Hardware Availability: | Jul-2026 | Software Availability: | Jun-2024 | Publication: | Aug 11, 2026 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

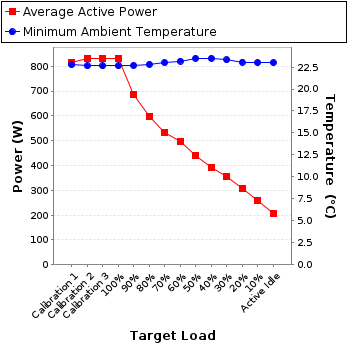

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 815 | 22.8 |
| Calibration 2 | 831 | 22.6 |
| Calibration 3 | 832 | 22.6 |
| 100% | 832 | 22.6 |
| 90% | 686 | 22.7 |
| 80% | 595 | 22.8 |
| 70% | 535 | 23.0 |
| 60% | 497 | 23.2 |
| 50% | 440 | 23.5 |
| 40% | 393 | 23.5 |
| 30% | 354 | 23.3 |
| 20% | 307 | 23.1 |
| 10% | 259 | 23.0 |
| Active Idle | 208 | 23.0 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C3SH31010E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
| Accredited by: | CHINA CEPEREI LABORATORY CALIBRATION & TESTING CENTRE |
| Calibration Label: | 1GA25011731-0002 |
| Date of Calibration: | 15-Sep-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.4-5bcc369b-20260119 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 220 | 300.0 | 3.73 | 10.0 | 0.995 | 815 | 0.3% |
| Calibration 2 | 219 | 300.0 | 3.81 | 10.0 | 0.995 | 831 | 0.3% |
| Calibration 3 | 219 | 300.0 | 3.82 | 10.0 | 0.995 | 832 | 0.3% |
| 100% | 219 | 300.0 | 3.81 | 10.0 | 0.995 | 832 | 0.3% |
| 90% | 220 | 300.0 | 3.15 | 10.0 | 0.993 | 686 | 0.3% |
| 80% | 220 | 300.0 | 2.73 | 10.0 | 0.992 | 595 | 0.4% |
| 70% | 220 | 300.0 | 2.46 | 5.0 | 0.990 | 535 | 0.3% |
| 60% | 220 | 300.0 | 2.29 | 5.0 | 0.988 | 497 | 0.3% |
| 50% | 220 | 300.0 | 2.03 | 5.0 | 0.984 | 440 | 0.3% |
| 40% | 220 | 300.0 | 1.82 | 5.0 | 0.979 | 393 | 0.3% |
| 30% | 220 | 300.0 | 1.65 | 5.0 | 0.976 | 354 | 0.4% |
| 20% | 220 | 300.0 | 1.44 | 5.0 | 0.967 | 307 | 0.4% |
| 10% | 220 | 300.0 | 1.24 | 5.0 | 0.952 | 259 | 0.4% |
| Active Idle | 220 | 300.0 | 1.02 | 5.0 | 0.924 | 208 | 0.5% |
