SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2026 Standard Performance Evaluation Corporation
| Compal Electronics, Inc. SR224-2A | SPECpower_ssj2008 = 39,794 overall ssj_ops/watt | ||||
| Test Sponsor: | Compal Electronics, Inc. | SPEC License #: | 6857 | Test Method: | Single Node |
| Tested By: | Compal Electronics, Inc. | Test Location: | Neihu Dist, Taipei City, Taiwan (R.O.C.) | Test Date: | Apr 13, 2026 |
| Hardware Availability: | Jul-2025 | Software Availability: | Feb-2026 | Publication: | May 22, 2026 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

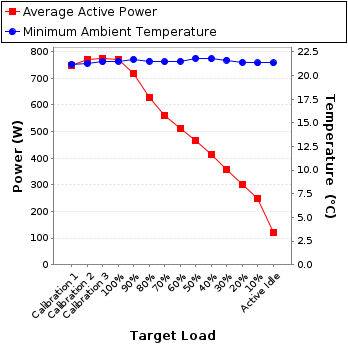

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 747 | 21.2 |
| Calibration 2 | 771 | 21.2 |
| Calibration 3 | 775 | 21.4 |
| 100% | 770 | 21.5 |
| 90% | 717 | 21.7 |
| 80% | 628 | 21.5 |
| 70% | 560 | 21.4 |
| 60% | 512 | 21.5 |
| 50% | 464 | 21.8 |
| 40% | 413 | 21.8 |
| 30% | 358 | 21.6 |
| 20% | 302 | 21.4 |
| 10% | 247 | 21.3 |
| Active Idle | 121 | 21.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310E |
| Serial Number: | C3UE28006E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory,Taiwan) |
| Accredited by: | OMNIO Calibration Laboratory Ltd. |
| Calibration Label: | OCL-250527T022 |
| Date of Calibration: | 28-May-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.4-5bcc369b-20260119 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Cleware |
| Model: | USB-Temp |
| Driver Version: | 5.3.4.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | The front top of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 231 | 300.0 | 3.25 | 5.0 | 0.994 | 747 | 0.2% |
| Calibration 2 | 230 | 300.0 | 3.37 | 5.0 | 0.994 | 771 | 0.2% |
| Calibration 3 | 231 | 300.0 | 3.38 | 5.0 | 0.994 | 775 | 0.2% |
| 100% | 231 | 300.0 | 3.35 | 5.0 | 0.994 | 770 | 0.2% |
| 90% | 231 | 300.0 | 3.12 | 5.0 | 0.995 | 717 | 0.2% |
| 80% | 230 | 300.0 | 2.75 | 5.0 | 0.992 | 628 | 0.2% |
| 70% | 229 | 300.0 | 2.47 | 5.0 | 0.990 | 560 | 0.3% |
| 60% | 229 | 300.0 | 2.25 | 5.0 | 0.993 | 512 | 0.3% |
| 50% | 229 | 300.0 | 2.05 | 5.0 | 0.992 | 464 | 0.3% |
| 40% | 227 | 300.0 | 1.83 | 5.0 | 0.991 | 413 | 0.3% |
| 30% | 228 | 300.0 | 1.59 | 5.0 | 0.989 | 358 | 0.3% |
| 20% | 228 | 300.0 | 1.35 | 5.0 | 0.986 | 302 | 0.4% |
| 10% | 227 | 300.0 | 1.12 | 5.0 | 0.977 | 247 | 0.4% |
| Active Idle | 227 | 300.0 | 0.581 | 5.0 | 0.918 | 121 | 0.8% |
