Supermicro SuperServer AS-1115SV-WTNRT SPECpower_ssj2008 = 24,408 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: San Jose, CA, USA Test Date: Apr 20, 2026
Hardware Availability: May-2026 Software Availability: May-2026 Publication: May 19, 2026
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 334 22.1
Calibration 2 334 21.8
Calibration 3 335 21.6
100% 335 21.6
90% 316 21.9
80% 296 22.1
70% 275 21.9
60% 256 21.8
50% 237 21.8
40% 216 22.1
30% 198 21.9
20% 177 22.1
10% 156 22.0
Active Idle 89.6 22.5

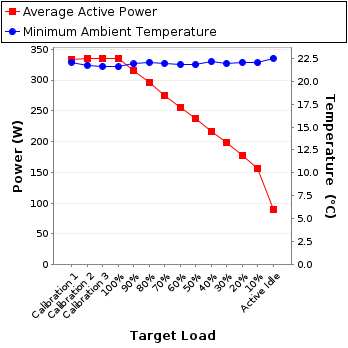

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT310E
Serial Number: C2ZG04126V
Connectivity: USB2
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Omnio Calibration Lab. Co., Ltd.
Calibration Label: T120104
Date of Calibration: 02-Feb-2026
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.4-5bcc369b-20260119
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: iButtonLink, Inc.
Model: LinkUSBi + T-Probe
Driver Version: FTDI USB Serial Device 1.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 210 300.0 1.62 2.0 0.984 334 0.2%
Calibration 2 210 300.0 1.62 2.0 0.984 334 0.2%
Calibration 3 210 300.0 1.62 2.0 0.984 335 0.2%
100% 210 300.0 1.62 2.0 0.984 335 0.2%
90% 210 300.0 1.54 2.0 0.982 316 0.2%
80% 209 300.0 1.44 2.0 0.978 296 0.2%
70% 209 300.0 1.35 2.0 0.974 275 0.3%
60% 209 300.0 1.26 2.0 0.970 256 0.3%
50% 209 300.0 1.17 2.0 0.966 237 0.3%
40% 209 300.0 1.08 2.0 0.961 216 0.3%
30% 209 300.0 0.995 2.0 0.954 198 0.3%
20% 209 300.0 0.899 2.0 0.943 177 0.3%
10% 210 300.0 0.799 2.0 0.932 156 0.4%
Active Idle 210 300.0 0.496 1.0 0.859 89.6 0.4%

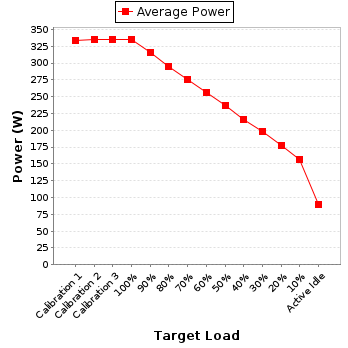

Power details for pwr1
