SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2026 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge XR8720t (Intel Xeon 6776P-B) | SPECpower_ssj2008 = 21,433 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Apr 9, 2026 |
| Hardware Availability: | Mar-2026 | Software Availability: | Mar-2026 | Publication: | May 12, 2026 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

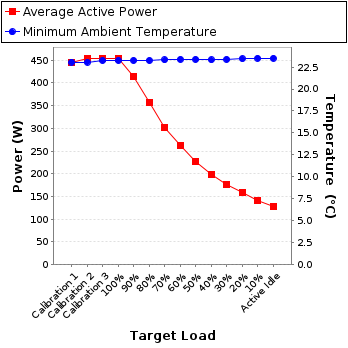

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 446 | 23.1 |
| Calibration 2 | 454 | 23.1 |
| Calibration 3 | 454 | 23.2 |
| 100% | 454 | 23.2 |
| 90% | 414 | 23.2 |
| 80% | 358 | 23.2 |
| 70% | 303 | 23.3 |
| 60% | 262 | 23.4 |
| 50% | 228 | 23.4 |
| 40% | 199 | 23.3 |
| 30% | 177 | 23.4 |
| 20% | 158 | 23.4 |
| 10% | 141 | 23.5 |
| Active Idle | 129 | 23.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT310 |
| Serial Number: | T11733387 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T126625 |
| Date of Calibration: | 13-Aug-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.3-a7835373-20251015 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 2.17 | 2.0 | 0.998 | 446 | 0.2% |
| Calibration 2 | 206 | 300.0 | 2.20 | 2.0 | 0.998 | 454 | 0.2% |
| Calibration 3 | 206 | 300.0 | 2.21 | 2.0 | 0.998 | 454 | 0.2% |
| 100% | 206 | 300.0 | 2.21 | 2.0 | 0.998 | 454 | 0.2% |
| 90% | 206 | 300.0 | 2.01 | 2.0 | 0.997 | 414 | 0.2% |
| 80% | 206 | 300.0 | 1.74 | 2.0 | 0.995 | 358 | 0.2% |
| 70% | 207 | 300.0 | 1.47 | 2.0 | 0.994 | 303 | 0.2% |
| 60% | 207 | 300.0 | 1.28 | 2.0 | 0.991 | 262 | 0.2% |
| 50% | 207 | 300.0 | 1.12 | 2.0 | 0.987 | 228 | 0.3% |
| 40% | 207 | 300.0 | 0.979 | 2.0 | 0.984 | 199 | 0.3% |
| 30% | 207 | 300.0 | 0.871 | 2.0 | 0.981 | 177 | 0.3% |
| 20% | 207 | 300.0 | 0.781 | 2.0 | 0.982 | 158 | 0.3% |
| 10% | 207 | 300.0 | 0.697 | 2.0 | 0.981 | 141 | 0.4% |
| Active Idle | 207 | 300.0 | 0.637 | 2.0 | 0.976 | 129 | 0.4% |
