SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2026 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge XR8720t (Intel Xeon 6766P-B) | SPECpower_ssj2008 = 20,130 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Apr 3, 2026 |
| Hardware Availability: | Mar-2026 | Software Availability: | Mar-2026 | Publication: | Apr 22, 2026 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

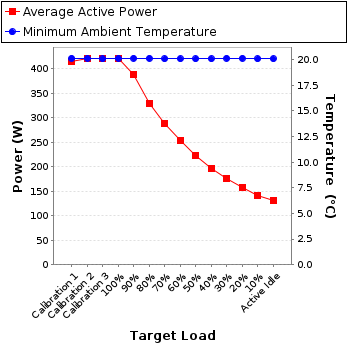

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 414 | 20.1 |
| Calibration 2 | 421 | 20.1 |
| Calibration 3 | 421 | 20.1 |
| 100% | 421 | 20.1 |
| 90% | 387 | 20.1 |
| 80% | 329 | 20.1 |
| 70% | 289 | 20.1 |
| 60% | 253 | 20.1 |
| 50% | 222 | 20.1 |
| 40% | 196 | 20.1 |
| 30% | 175 | 20.1 |
| 20% | 158 | 20.1 |
| 10% | 142 | 20.1 |
| Active Idle | 131 | 20.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT310 |
| Serial Number: | T11733387 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T126625 |
| Date of Calibration: | 13-Aug-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.3-a7835373-20251015 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 2.02 | 2.0 | 0.995 | 414 | 0.2% |
| Calibration 2 | 206 | 300.0 | 2.05 | 2.0 | 0.995 | 421 | 0.2% |
| Calibration 3 | 206 | 300.0 | 2.05 | 2.0 | 0.995 | 421 | 0.2% |
| 100% | 206 | 300.0 | 2.05 | 2.0 | 0.995 | 421 | 0.2% |
| 90% | 206 | 300.0 | 1.89 | 2.0 | 0.994 | 387 | 0.2% |
| 80% | 207 | 300.0 | 1.61 | 2.0 | 0.991 | 329 | 0.2% |
| 70% | 207 | 300.0 | 1.41 | 2.0 | 0.988 | 289 | 0.2% |
| 60% | 207 | 300.0 | 1.24 | 2.0 | 0.984 | 253 | 0.3% |
| 50% | 207 | 300.0 | 1.10 | 2.0 | 0.979 | 222 | 0.3% |
| 40% | 207 | 300.0 | 0.973 | 2.0 | 0.973 | 196 | 0.3% |
| 30% | 207 | 300.0 | 0.876 | 2.0 | 0.968 | 175 | 0.3% |
| 20% | 207 | 300.0 | 0.790 | 2.0 | 0.967 | 158 | 0.3% |
| 10% | 207 | 300.0 | 0.712 | 2.0 | 0.962 | 142 | 0.4% |
| Active Idle | 207 | 300.0 | 0.661 | 2.0 | 0.956 | 131 | 0.4% |
