SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2026 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R770 (Intel Xeon 6737P, 2.9 GHz) | SPECpower_ssj2008 = 12,106 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Dec 18, 2025 |
| Hardware Availability: | May-2025 | Software Availability: | Jun-2025 | Publication: | Apr 22, 2026 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

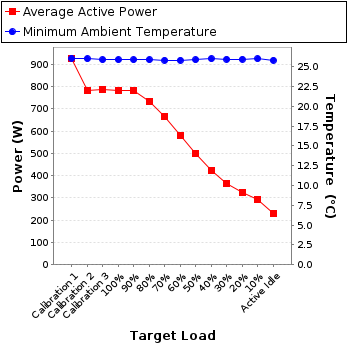

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 927 | 26.1 |
| Calibration 2 | 781 | 26.0 |
| Calibration 3 | 785 | 25.9 |
| 100% | 782 | 25.9 |
| 90% | 783 | 25.9 |
| 80% | 732 | 25.9 |
| 70% | 664 | 25.8 |
| 60% | 582 | 25.8 |
| 50% | 498 | 25.9 |
| 40% | 423 | 26.0 |
| 30% | 363 | 25.9 |
| 20% | 322 | 25.9 |
| 10% | 293 | 26.0 |
| Active Idle | 229 | 25.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT310 |
| Serial Number: | T11733384 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T126624 |
| Date of Calibration: | 13-Aug-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 4.50 | 5.0 | 0.996 | 927 | 0.3% |
| Calibration 2 | 208 | 300.0 | 3.78 | 5.0 | 0.996 | 781 | 0.4% |
| Calibration 3 | 208 | 300.0 | 3.80 | 5.0 | 0.996 | 785 | 0.4% |
| 100% | 207 | 300.0 | 3.79 | 5.0 | 0.996 | 782 | 0.4% |
| 90% | 207 | 300.0 | 3.79 | 5.0 | 0.996 | 783 | 0.4% |
| 80% | 208 | 300.0 | 3.55 | 5.0 | 0.995 | 732 | 0.4% |
| 70% | 208 | 300.0 | 3.22 | 5.0 | 0.995 | 664 | 0.4% |
| 60% | 208 | 300.0 | 2.82 | 5.0 | 0.993 | 582 | 0.4% |
| 50% | 208 | 300.0 | 2.42 | 5.0 | 0.990 | 498 | 0.5% |
| 40% | 208 | 300.0 | 2.07 | 5.0 | 0.985 | 423 | 0.5% |
| 30% | 208 | 300.0 | 1.78 | 5.0 | 0.979 | 363 | 0.6% |
| 20% | 208 | 300.0 | 1.59 | 5.0 | 0.973 | 322 | 0.7% |
| 10% | 208 | 300.0 | 1.45 | 5.0 | 0.971 | 293 | 0.7% |
| Active Idle | 208 | 300.0 | 1.17 | 5.0 | 0.945 | 229 | 0.9% |
