SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2026 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R7725 | SPECpower_ssj2008 = 12,486 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Dec 19, 2025 |
| Hardware Availability: | Nov-2024 | Software Availability: | Jul-2025 | Publication: | Apr 22, 2026 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

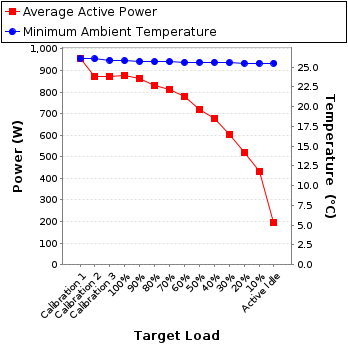

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 957 | 26.1 |
| Calibration 2 | 871 | 26.1 |
| Calibration 3 | 874 | 25.9 |
| 100% | 879 | 25.8 |
| 90% | 865 | 25.8 |
| 80% | 830 | 25.7 |
| 70% | 811 | 25.7 |
| 60% | 780 | 25.6 |
| 50% | 719 | 25.6 |
| 40% | 676 | 25.6 |
| 30% | 604 | 25.6 |
| 20% | 522 | 25.5 |
| 10% | 433 | 25.5 |
| Active Idle | 198 | 25.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT310 |
| Serial Number: | T11733384 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T126624 |
| Date of Calibration: | 13-Aug-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 205 | 300.0 | 4.72 | 5.0 | 0.993 | 957 | 0.2% |
| Calibration 2 | 205 | 300.0 | 4.28 | 5.0 | 0.991 | 871 | 0.2% |
| Calibration 3 | 205 | 300.0 | 4.30 | 5.0 | 0.991 | 874 | 0.2% |
| 100% | 205 | 300.0 | 4.32 | 5.0 | 0.992 | 879 | 0.2% |
| 90% | 205 | 300.0 | 4.25 | 5.0 | 0.991 | 865 | 0.2% |
| 80% | 205 | 300.0 | 4.08 | 5.0 | 0.991 | 830 | 0.2% |
| 70% | 205 | 300.0 | 4.00 | 5.0 | 0.986 | 811 | 0.2% |
| 60% | 205 | 300.0 | 3.83 | 5.0 | 0.991 | 780 | 0.2% |
| 50% | 206 | 300.0 | 3.53 | 5.0 | 0.990 | 719 | 0.2% |
| 40% | 206 | 300.0 | 3.32 | 5.0 | 0.989 | 676 | 0.2% |
| 30% | 206 | 300.0 | 2.97 | 5.0 | 0.987 | 604 | 0.3% |
| 20% | 206 | 300.0 | 2.58 | 5.0 | 0.983 | 522 | 0.3% |
| 10% | 206 | 300.0 | 2.15 | 5.0 | 0.976 | 433 | 0.3% |
| Active Idle | 206 | 300.0 | 1.10 | 5.0 | 0.875 | 198 | 0.5% |
