Compal Electronics, Inc. SD223-8A ssj_ops@100% = 14,314,215
ssj_ops@100% per JVM = 223,660
Test Sponsor: Compal Electronics, Inc. SPEC License #: 6857 Test Method: Multi Node
Tested By: Compal Electronics, Inc. Test Location: Neihu Dist, Taipei City, Taiwan (R.O.C.) Test Date: Feb 10, 2026
Hardware Availability: May-2025 Software Availability: Sep-2025 Publication: Mar 17, 2026
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,426,132
Calibration 2     14,342,121
Calibration 3     14,370,684
ssj_ops@calibrated=14,356,402
100% 99.7% 14,356,402 14,314,215
90% 90.0% 12,920,762 12,924,584
80% 80.0% 11,485,122 11,479,664
70% 70.0% 10,049,482 10,048,201
60% 60.0% 8,613,841 8,620,563
50% 50.0% 7,178,201 7,177,546
40% 40.0% 5,742,561 5,745,224
30% 30.0% 4,306,921 4,300,473
20% 20.0% 2,871,280 2,866,669
10% 10.0% 1,435,640 1,433,165
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: SUT
Hardware
Hardware Vendor: Compal Electronics, Inc.
Model: SD223-8A
Form Factor: 2U
CPU Name: AMD EPYC 9355 3.55 GHz
CPU Characteristics: 32 core, 3.55GHz, 256MB L3 Cache
CPU Frequency (MHz): 3550
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 48 KB I + 48 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared/4 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: [16GB 1Rx8 PC5-4800; slots A0, B0, C0, D0, E0, F0, G0 ,H0 ,I0 ,J0 ,K0 ,L0 populated]
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960G M.2 NVMe Express SSD, Micron p/n MTFDKBA960TFR-1BC1ZABDA
Disk Controller: Integrated PCIe controller
# and type of Network Interface Cards (NICs) Installed: 1 x PCIE i350 4-port, LR-LINK p/n LREC9714HT-PCIE
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Preferred plans in OS: Power Saver (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter Evaluation
OS Version: Version 21H2 (OS Build 20348.4648)
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: "17.0.12" 2024-07-16 LTS Java(TM) SE Runtime Environment (build 17.0.12+8-LTS-286) Java HotSpot(TM) 64-Bit Server VM (build 17.0.12+8-LTS-286, mixed mode, sharing)
JVM Command-line Options: -server -Xmn1450m -Xms1650m -Xmx1650m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:UseAVX=0 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:FreqInlineSize=2500 -XX:InlineSmallCode=3900 -XX:+UseBiasedLocking -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=8 -XX:+UseNUMA
JVM Affinity: start /NODE [0-15] /AFFINITY [0x3,0xC,0x30,0xC0]
JVM Instances: 64
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 2.12.0
Management Firmware Version: 1.29.0
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE3.001 221,660
NODE3.002 227,144
NODE3.003 224,306
NODE3.004 223,588
NODE3.005 220,240
NODE3.006 223,610
NODE3.007 224,222
NODE3.008 222,182
NODE3.009 225,367
NODE3.010 226,659
NODE3.011 223,806
NODE3.012 222,550
NODE3.013 224,253
NODE3.014 226,951
NODE3.015 228,012
NODE3.016 220,590
NODE3.017 222,558
NODE3.018 223,043
NODE3.019 219,881
NODE3.020 224,454
NODE3.021 227,242
NODE3.022 230,032
NODE3.023 224,560
NODE3.024 222,455
NODE3.025 219,941
NODE3.026 229,443
NODE3.027 221,545
NODE3.028 222,261
NODE3.029 224,860
NODE3.030 226,321
NODE3.031 224,015
NODE3.032 224,763
NODE3.033 220,825
NODE3.034 225,509
NODE3.035 225,149
NODE3.036 219,853
NODE3.037 220,978
NODE3.038 224,942
NODE3.039 221,649
NODE3.040 222,126
NODE3.041 224,013
NODE3.042 222,205
NODE3.043 222,117
NODE3.044 225,952
NODE3.045 222,116
NODE3.046 221,195
NODE3.047 223,450
NODE3.048 217,146
NODE3.049 224,004
NODE3.050 226,724
NODE3.051 221,778
NODE3.052 225,006
NODE3.053 224,542
NODE3.054 225,366
NODE3.055 222,113
NODE3.056 221,483
NODE3.057 220,936
NODE3.058 226,556
NODE3.059 224,871
NODE3.060 224,567
NODE3.061 225,370
NODE3.062 229,557
NODE3.063 217,988
NODE3.064 221,616
ssj_ops@100% 14,314,215
ssj_ops@100% per JVM 223,660
Graph of per-instance results
JVM 'NODE3.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,213
Calibration 2     222,383
Calibration 3     222,789
ssj_ops@calibrated=222,586
100% 99.6% 222,586 221,660
90% 89.9% 200,328 200,093
80% 79.9% 178,069 177,822
70% 69.9% 155,810 155,545
60% 59.9% 133,552 133,255
50% 50.0% 111,293 111,227
40% 40.0% 89,034 88,947
30% 30.0% 66,776 66,854
20% 20.0% 44,517 44,456
10% 9.8% 22,259 21,920
Active Idle   0 0
Graph of results
JVM 'NODE3.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     230,379
Calibration 2     226,747
Calibration 3     227,861
ssj_ops@calibrated=227,304
100% 99.9% 227,304 227,144
90% 89.6% 204,574 203,739
80% 79.7% 181,843 181,242
70% 70.0% 159,113 159,086
60% 59.9% 136,382 136,090
50% 50.2% 113,652 114,167
40% 40.7% 90,922 92,433
30% 29.9% 68,191 67,904
20% 20.1% 45,461 45,758
10% 10.0% 22,730 22,787
Active Idle   0 0
Graph of results
JVM 'NODE3.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,458
Calibration 2     224,752
Calibration 3     225,017
ssj_ops@calibrated=224,884
100% 99.7% 224,884 224,306
90% 89.8% 202,396 202,026
80% 79.9% 179,907 179,786
70% 70.2% 157,419 157,970
60% 59.6% 134,931 133,988
50% 50.0% 112,442 112,522
40% 40.2% 89,954 90,347
30% 30.1% 67,465 67,766
20% 19.9% 44,977 44,706
10% 10.1% 22,488 22,616
Active Idle   0 0
Graph of results
JVM 'NODE3.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,880
Calibration 2     223,275
Calibration 3     223,088
ssj_ops@calibrated=223,182
100% 100.2% 223,182 223,588
90% 89.1% 200,863 198,924
80% 79.0% 178,545 176,259
70% 70.3% 156,227 156,990
60% 60.3% 133,909 134,593
50% 50.2% 111,591 112,101
40% 40.0% 89,273 89,370
30% 30.0% 66,954 66,969
20% 19.9% 44,636 44,337
10% 9.7% 22,318 21,561
Active Idle   0 0
Graph of results
JVM 'NODE3.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,582
Calibration 2     219,626
Calibration 3     219,086
ssj_ops@calibrated=219,356
100% 100.4% 219,356 220,240
90% 89.6% 197,421 196,641
80% 79.5% 175,485 174,295
70% 70.0% 153,549 153,531
60% 59.6% 131,614 130,724
50% 49.7% 109,678 108,948
40% 40.0% 87,743 87,639
30% 30.1% 65,807 66,023
20% 20.3% 43,871 44,460
10% 10.0% 21,936 21,943
Active Idle   0 0
Graph of results
JVM 'NODE3.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,645
Calibration 2     223,280
Calibration 3     223,689
ssj_ops@calibrated=223,484
100% 100.1% 223,484 223,610
90% 90.3% 201,136 201,706
80% 79.1% 178,787 176,667
70% 70.0% 156,439 156,446
60% 59.7% 134,091 133,336
50% 49.9% 111,742 111,550
40% 39.9% 89,394 89,248
30% 30.2% 67,045 67,394
20% 20.1% 44,697 44,945
10% 10.1% 22,348 22,549
Active Idle   0 0
Graph of results
JVM 'NODE3.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,812
Calibration 2     227,272
Calibration 3     226,416
ssj_ops@calibrated=226,844
100% 98.8% 226,844 224,222
90% 91.0% 204,160 206,497
80% 79.7% 181,475 180,864
70% 70.1% 158,791 159,118
60% 59.8% 136,106 135,570
50% 50.9% 113,422 115,420
40% 39.8% 90,738 90,294
30% 30.2% 68,053 68,406
20% 19.8% 45,369 44,896
10% 10.1% 22,684 22,858
Active Idle   0 0
Graph of results
JVM 'NODE3.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,277
Calibration 2     224,290
Calibration 3     224,817
ssj_ops@calibrated=224,553
100% 98.9% 224,553 222,182
90% 90.1% 202,098 202,369
80% 80.6% 179,643 180,997
70% 70.0% 157,187 157,133
60% 60.1% 134,732 135,040
50% 50.0% 112,277 112,220
40% 40.1% 89,821 89,973
30% 30.3% 67,366 68,103
20% 19.9% 44,911 44,746
10% 9.7% 22,455 21,883
Active Idle   0 0
Graph of results
JVM 'NODE3.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,040
Calibration 2     226,374
Calibration 3     226,926
ssj_ops@calibrated=226,650
100% 99.4% 226,650 225,367
90% 89.7% 203,985 203,202
80% 80.3% 181,320 181,958
70% 70.1% 158,655 158,924
60% 60.0% 135,990 136,063
50% 50.2% 113,325 113,765
40% 40.3% 90,660 91,349
30% 30.0% 67,995 67,890
20% 20.3% 45,330 45,906
10% 9.8% 22,665 22,269
Active Idle   0 0
Graph of results
JVM 'NODE3.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     229,564
Calibration 2     226,865
Calibration 3     227,488
ssj_ops@calibrated=227,177
100% 99.8% 227,177 226,659
90% 90.1% 204,459 204,734
80% 80.9% 181,741 183,768
70% 70.1% 159,024 159,248
60% 60.6% 136,306 137,644
50% 50.0% 113,588 113,494
40% 39.9% 90,871 90,657
30% 30.1% 68,153 68,334
20% 20.0% 45,435 45,399
10% 9.9% 22,718 22,561
Active Idle   0 0
Graph of results
JVM 'NODE3.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,768
Calibration 2     225,208
Calibration 3     224,452
ssj_ops@calibrated=224,830
100% 99.5% 224,830 223,806
90% 89.8% 202,347 201,961
80% 80.3% 179,864 180,591
70% 69.5% 157,381 156,231
60% 60.3% 134,898 135,649
50% 50.3% 112,415 113,180
40% 39.8% 89,932 89,403
30% 29.7% 67,449 66,841
20% 19.8% 44,966 44,437
10% 9.9% 22,483 22,170
Active Idle   0 0
Graph of results
JVM 'NODE3.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,428
Calibration 2     221,855
Calibration 3     223,273
ssj_ops@calibrated=222,564
100% 100.0% 222,564 222,550
90% 89.3% 200,308 198,685
80% 80.2% 178,051 178,534
70% 69.7% 155,795 155,144
60% 60.6% 133,538 134,834
50% 50.1% 111,282 111,586
40% 40.0% 89,026 89,101
30% 29.5% 66,769 65,664
20% 20.2% 44,513 44,919
10% 10.1% 22,256 22,495
Active Idle   0 0
Graph of results
JVM 'NODE3.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,357
Calibration 2     224,465
Calibration 3     224,849
ssj_ops@calibrated=224,657
100% 99.8% 224,657 224,253
90% 90.1% 202,191 202,513
80% 80.1% 179,725 179,999
70% 70.2% 157,260 157,766
60% 60.2% 134,794 135,259
50% 50.2% 112,328 112,743
40% 40.3% 89,863 90,502
30% 29.9% 67,397 67,262
20% 19.8% 44,931 44,430
10% 9.8% 22,466 21,974
Active Idle   0 0
Graph of results
JVM 'NODE3.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,704
Calibration 2     227,225
Calibration 3     227,214
ssj_ops@calibrated=227,220
100% 99.9% 227,220 226,951
90% 89.9% 204,498 204,273
80% 80.6% 181,776 183,107
70% 70.3% 159,054 159,780
60% 60.5% 136,332 137,497
50% 49.4% 113,610 112,290
40% 39.9% 90,888 90,757
30% 29.7% 68,166 67,593
20% 20.1% 45,444 45,633
10% 10.2% 22,722 23,229
Active Idle   0 0
Graph of results
JVM 'NODE3.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,787
Calibration 2     228,726
Calibration 3     228,702
ssj_ops@calibrated=228,714
100% 99.7% 228,714 228,012
90% 89.6% 205,843 204,840
80% 80.0% 182,971 183,080
70% 70.7% 160,100 161,604
60% 60.0% 137,229 137,284
50% 49.7% 114,357 113,656
40% 40.0% 91,486 91,448
30% 30.1% 68,614 68,879
20% 19.8% 45,743 45,262
10% 10.1% 22,871 23,091
Active Idle   0 0
Graph of results
JVM 'NODE3.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,829
Calibration 2     220,786
Calibration 3     221,013
ssj_ops@calibrated=220,899
100% 99.9% 220,899 220,590
90% 89.9% 198,809 198,642
80% 80.5% 176,719 177,752
70% 69.9% 154,630 154,312
60% 59.9% 132,540 132,409
50% 49.7% 110,450 109,854
40% 40.1% 88,360 88,528
30% 30.1% 66,270 66,474
20% 19.8% 44,180 43,787
10% 10.0% 22,090 21,995
Active Idle   0 0
Graph of results
JVM 'NODE3.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,379
Calibration 2     221,857
Calibration 3     222,693
ssj_ops@calibrated=222,275
100% 100.1% 222,275 222,558
90% 90.6% 200,047 201,483
80% 80.2% 177,820 178,350
70% 70.0% 155,592 155,591
60% 60.2% 133,365 133,756
50% 50.2% 111,137 111,482
40% 40.4% 88,910 89,843
30% 29.7% 66,682 66,107
20% 20.2% 44,455 44,794
10% 10.2% 22,227 22,586
Active Idle   0 0

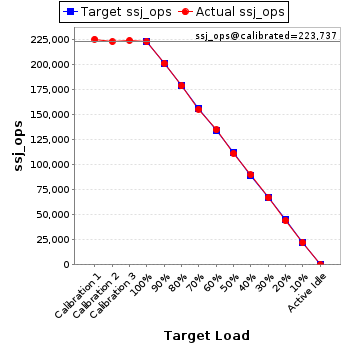

Graph of results
JVM 'NODE3.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,522
Calibration 2     223,177
Calibration 3     224,296
ssj_ops@calibrated=223,737
100% 99.7% 223,737 223,043
90% 90.0% 201,363 201,352
80% 79.9% 178,989 178,841
70% 69.5% 156,616 155,500
60% 60.3% 134,242 135,005
50% 49.7% 111,868 111,203
40% 40.1% 89,495 89,778
30% 29.9% 67,121 66,948
20% 19.6% 44,747 43,962
10% 9.9% 22,374 22,211
Active Idle   0 0
Graph of results
JVM 'NODE3.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,200
Calibration 2     220,502
Calibration 3     220,666
ssj_ops@calibrated=220,584
100% 99.7% 220,584 219,881
90% 90.3% 198,525 199,274
80% 79.8% 176,467 175,953
70% 69.9% 154,409 154,140
60% 59.2% 132,350 130,613
50% 50.2% 110,292 110,661
40% 40.5% 88,233 89,232
30% 30.3% 66,175 66,802
20% 20.3% 44,117 44,708
10% 10.0% 22,058 22,095
Active Idle   0 0
Graph of results
JVM 'NODE3.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,800
Calibration 2     225,454
Calibration 3     225,051
ssj_ops@calibrated=225,252
100% 99.6% 225,252 224,454
90% 89.6% 202,727 201,764
80% 79.3% 180,202 178,554
70% 70.4% 157,677 158,477
60% 59.6% 135,151 134,334
50% 50.0% 112,626 112,516
40% 40.3% 90,101 90,783
30% 29.8% 67,576 67,177
20% 19.9% 45,050 44,728
10% 10.2% 22,525 22,908
Active Idle   0 0

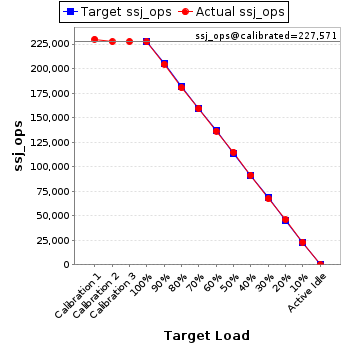

Graph of results
JVM 'NODE3.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     229,890
Calibration 2     227,522
Calibration 3     227,620
ssj_ops@calibrated=227,571
100% 99.9% 227,571 227,242
90% 89.8% 204,814 204,445
80% 79.3% 182,057 180,403
70% 70.0% 159,300 159,216
60% 59.9% 136,543 136,239
50% 50.4% 113,786 114,772
40% 40.1% 91,028 91,286
30% 29.6% 68,271 67,273
20% 20.2% 45,514 45,910
10% 10.1% 22,757 23,020
Active Idle   0 0
Graph of results
JVM 'NODE3.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     232,707
Calibration 2     229,884
Calibration 3     230,679
ssj_ops@calibrated=230,282
100% 99.9% 230,282 230,032
90% 90.3% 207,253 207,851
80% 80.3% 184,225 184,952
70% 70.3% 161,197 161,879
60% 59.8% 138,169 137,721
50% 50.1% 115,141 115,408
40% 39.6% 92,113 91,197
30% 29.7% 69,084 68,477
20% 20.3% 46,056 46,641
10% 9.9% 23,028 22,806
Active Idle   0 0
Graph of results
JVM 'NODE3.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,887
Calibration 2     225,376
Calibration 3     225,742
ssj_ops@calibrated=225,559
100% 99.6% 225,559 224,560
90% 89.7% 203,003 202,263
80% 79.8% 180,447 179,925
70% 69.7% 157,891 157,235
60% 60.5% 135,336 136,483
50% 50.8% 112,780 114,532
40% 39.4% 90,224 88,931
30% 30.0% 67,668 67,758
20% 20.0% 45,112 45,157
10% 9.9% 22,556 22,362
Active Idle   0 0
Graph of results
JVM 'NODE3.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,611
Calibration 2     223,754
Calibration 3     223,745
ssj_ops@calibrated=223,750
100% 99.4% 223,750 222,455
90% 90.1% 201,375 201,611
80% 80.5% 179,000 180,070
70% 70.9% 156,625 158,692
60% 59.6% 134,250 133,396
50% 49.7% 111,875 111,236
40% 39.2% 89,500 87,730
30% 29.3% 67,125 65,447
20% 19.9% 44,750 44,607
10% 10.0% 22,375 22,287
Active Idle   0 0

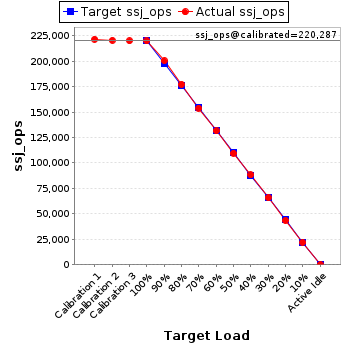

Graph of results
JVM 'NODE3.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,635
Calibration 2     220,570
Calibration 3     220,004
ssj_ops@calibrated=220,287
100% 99.8% 220,287 219,941
90% 91.0% 198,258 200,489
80% 80.5% 176,230 177,336
70% 69.9% 154,201 153,960
60% 59.7% 132,172 131,548
50% 49.7% 110,143 109,558
40% 40.0% 88,115 88,186
30% 29.9% 66,086 65,778
20% 19.7% 44,057 43,401
10% 10.0% 22,029 22,036
Active Idle   0 0
Graph of results
JVM 'NODE3.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     229,630
Calibration 2     230,433
Calibration 3     230,345
ssj_ops@calibrated=230,389
100% 99.6% 230,389 229,443
90% 89.6% 207,350 206,418
80% 80.4% 184,311 185,261
70% 70.0% 161,272 161,163
60% 60.1% 138,233 138,445
50% 50.0% 115,194 115,281
40% 40.0% 92,155 92,144
30% 30.2% 69,117 69,685
20% 19.9% 46,078 45,812
10% 9.8% 23,039 22,626
Active Idle   0 0
Graph of results
JVM 'NODE3.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,213
Calibration 2     221,935
Calibration 3     222,826
ssj_ops@calibrated=222,381
100% 99.6% 222,381 221,545
90% 89.5% 200,142 199,020
80% 80.4% 177,904 178,715
70% 70.0% 155,666 155,686
60% 60.3% 133,428 134,157
50% 49.7% 111,190 110,454
40% 40.0% 88,952 88,894
30% 29.7% 66,714 66,054
20% 19.7% 44,476 43,896
10% 10.2% 22,238 22,666
Active Idle   0 0
Graph of results
JVM 'NODE3.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,798
Calibration 2     221,855
Calibration 3     222,474
ssj_ops@calibrated=222,164
100% 100.0% 222,164 222,261
90% 90.6% 199,948 201,338
80% 79.9% 177,731 177,592
70% 70.2% 155,515 155,855
60% 60.1% 133,299 133,458
50% 49.6% 111,082 110,273
40% 40.2% 88,866 89,247
30% 30.0% 66,649 66,555
20% 19.9% 44,433 44,235
10% 9.9% 22,216 22,054
Active Idle   0 0
Graph of results
JVM 'NODE3.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,156
Calibration 2     226,298
Calibration 3     226,315
ssj_ops@calibrated=226,306
100% 99.4% 226,306 224,860
90% 89.7% 203,676 203,081
80% 79.9% 181,045 180,747
70% 69.6% 158,415 157,464
60% 59.9% 135,784 135,653
50% 50.1% 113,153 113,441
40% 39.8% 90,523 90,022
30% 30.0% 67,892 67,885
20% 20.1% 45,261 45,482
10% 10.0% 22,631 22,603
Active Idle   0 0
Graph of results
JVM 'NODE3.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     229,088
Calibration 2     227,632
Calibration 3     227,595
ssj_ops@calibrated=227,614
100% 99.4% 227,614 226,321
90% 90.2% 204,852 205,202
80% 79.3% 182,091 180,413
70% 70.0% 159,329 159,371
60% 60.3% 136,568 137,164
50% 49.8% 113,807 113,263
40% 40.1% 91,045 91,380
30% 29.7% 68,284 67,534
20% 20.1% 45,523 45,751
10% 10.1% 22,761 22,887
Active Idle   0 0
Graph of results
JVM 'NODE3.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,995
Calibration 2     223,602
Calibration 3     224,738
ssj_ops@calibrated=224,170
100% 99.9% 224,170 224,015
90% 90.0% 201,753 201,851
80% 79.6% 179,336 178,460
70% 70.2% 156,919 157,444
60% 59.9% 134,502 134,170
50% 50.3% 112,085 112,791
40% 39.9% 89,668 89,364
30% 30.3% 67,251 67,907
20% 20.1% 44,834 45,057
10% 10.0% 22,417 22,415
Active Idle   0 0

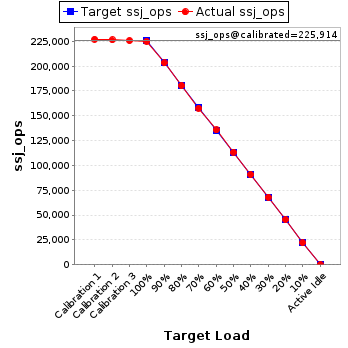

Graph of results
JVM 'NODE3.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,003
Calibration 2     226,250
Calibration 3     225,577
ssj_ops@calibrated=225,914
100% 99.5% 225,914 224,763
90% 89.9% 203,322 203,138
80% 79.8% 180,731 180,265
70% 69.8% 158,140 157,598
60% 60.0% 135,548 135,640
50% 50.2% 112,957 113,433
40% 40.1% 90,365 90,644
30% 30.1% 67,774 67,915
20% 20.1% 45,183 45,332
10% 9.8% 22,591 22,095
Active Idle   0 0
Graph of results
JVM 'NODE3.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,194
Calibration 2     220,892
Calibration 3     221,731
ssj_ops@calibrated=221,311
100% 99.8% 221,311 220,825
90% 89.9% 199,180 198,919
80% 79.7% 177,049 176,331
70% 70.1% 154,918 155,249
60% 59.9% 132,787 132,668
50% 50.0% 110,656 110,594
40% 39.7% 88,524 87,895
30% 30.2% 66,393 66,750
20% 20.2% 44,262 44,815
10% 9.9% 22,131 21,907
Active Idle   0 0
Graph of results
JVM 'NODE3.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,086
Calibration 2     226,751
Calibration 3     227,290
ssj_ops@calibrated=227,020
100% 99.3% 227,020 225,509
90% 89.9% 204,318 204,182
80% 79.3% 181,616 180,129
70% 70.3% 158,914 159,551
60% 60.2% 136,212 136,653
50% 50.1% 113,510 113,819
40% 39.7% 90,808 90,137
30% 29.8% 68,106 67,573
20% 19.8% 45,404 44,853
10% 10.0% 22,702 22,691
Active Idle   0 0
Graph of results
JVM 'NODE3.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,619
Calibration 2     226,203
Calibration 3     227,037
ssj_ops@calibrated=226,620
100% 99.4% 226,620 225,149
90% 91.0% 203,958 206,310
80% 80.1% 181,296 181,499
70% 69.7% 158,634 158,059
60% 60.1% 135,972 136,106
50% 49.4% 113,310 112,004
40% 40.4% 90,648 91,491
30% 30.1% 67,986 68,263
20% 20.0% 45,324 45,400
10% 9.9% 22,662 22,442
Active Idle   0 0
Graph of results
JVM 'NODE3.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,241
Calibration 2     219,751
Calibration 3     220,526
ssj_ops@calibrated=220,138
100% 99.9% 220,138 219,853
90% 89.8% 198,125 197,593
80% 80.0% 176,111 176,141
70% 69.9% 154,097 153,979
60% 60.3% 132,083 132,706
50% 49.6% 110,069 109,087
40% 40.5% 88,055 89,162
30% 29.7% 66,042 65,461
20% 19.9% 44,028 43,777
10% 9.8% 22,014 21,541
Active Idle   0 0
Graph of results
JVM 'NODE3.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,789
Calibration 2     221,938
Calibration 3     221,908
ssj_ops@calibrated=221,923
100% 99.6% 221,923 220,978
90% 90.6% 199,731 201,091
80% 80.3% 177,538 178,229
70% 69.1% 155,346 153,394
60% 60.0% 133,154 133,131
50% 49.6% 110,962 110,088
40% 40.2% 88,769 89,124
30% 30.3% 66,577 67,275
20% 20.1% 44,385 44,525
10% 10.1% 22,192 22,486
Active Idle   0 0
Graph of results
JVM 'NODE3.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,007
Calibration 2     226,347
Calibration 3     226,304
ssj_ops@calibrated=226,325
100% 99.4% 226,325 224,942
90% 89.7% 203,693 203,084
80% 79.5% 181,060 179,999
70% 69.4% 158,428 157,173
60% 59.5% 135,795 134,581
50% 49.9% 113,163 112,986
40% 39.7% 90,530 89,885
30% 30.1% 67,898 68,180
20% 19.9% 45,265 44,995
10% 10.0% 22,633 22,616
Active Idle   0 0
Graph of results
JVM 'NODE3.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,829
Calibration 2     221,788
Calibration 3     221,911
ssj_ops@calibrated=221,849
100% 99.9% 221,849 221,649
90% 90.1% 199,664 199,977
80% 80.0% 177,479 177,410
70% 70.4% 155,294 156,204
60% 59.7% 133,110 132,537
50% 49.9% 110,925 110,695
40% 40.1% 88,740 89,013
30% 30.1% 66,555 66,721
20% 19.7% 44,370 43,621
10% 10.0% 22,185 22,249
Active Idle   0 0
Graph of results
JVM 'NODE3.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,175
Calibration 2     222,840
Calibration 3     223,547
ssj_ops@calibrated=223,194
100% 99.5% 223,194 222,126
90% 89.9% 200,874 200,569
80% 80.2% 178,555 179,015
70% 70.1% 156,236 156,348
60% 60.4% 133,916 134,769
50% 50.2% 111,597 112,087
40% 39.7% 89,277 88,574
30% 29.8% 66,958 66,591
20% 20.3% 44,639 45,312
10% 10.0% 22,319 22,312
Active Idle   0 0
Graph of results
JVM 'NODE3.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,472
Calibration 2     226,288
Calibration 3     226,208
ssj_ops@calibrated=226,248
100% 99.0% 226,248 224,013
90% 89.9% 203,623 203,351
80% 79.9% 180,998 180,817
70% 70.1% 158,373 158,666
60% 60.6% 135,749 137,025
50% 50.1% 113,124 113,292
40% 40.2% 90,499 91,037
30% 29.6% 67,874 66,994
20% 19.7% 45,250 44,550
10% 10.2% 22,625 23,036
Active Idle   0 0
Graph of results
JVM 'NODE3.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,713
Calibration 2     223,156
Calibration 3     222,697
ssj_ops@calibrated=222,926
100% 99.7% 222,926 222,205
90% 90.1% 200,634 200,902
80% 80.1% 178,341 178,624
70% 70.0% 156,048 155,988
60% 60.2% 133,756 134,097
50% 49.5% 111,463 110,365
40% 40.3% 89,170 89,746
30% 30.2% 66,878 67,291
20% 20.0% 44,585 44,515
10% 10.0% 22,293 22,296
Active Idle   0 0
Graph of results
JVM 'NODE3.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,485
Calibration 2     222,152
Calibration 3     223,824
ssj_ops@calibrated=222,988
100% 99.6% 222,988 222,117
90% 90.1% 200,689 200,838
80% 80.0% 178,390 178,438
70% 69.8% 156,092 155,615
60% 59.4% 133,793 132,395
50% 49.9% 111,494 111,274
40% 40.1% 89,195 89,339
30% 30.0% 66,896 66,826
20% 19.6% 44,598 43,815
10% 10.1% 22,299 22,616
Active Idle   0 0
Graph of results
JVM 'NODE3.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,035
Calibration 2     225,352
Calibration 3     225,766
ssj_ops@calibrated=225,559
100% 100.2% 225,559 225,952
90% 90.9% 203,003 205,054
80% 79.4% 180,447 178,997
70% 70.0% 157,891 157,805
60% 60.8% 135,335 137,204
50% 49.8% 112,779 112,416
40% 40.1% 90,224 90,402
30% 30.0% 67,668 67,596
20% 20.0% 45,112 45,013
10% 9.9% 22,556 22,329
Active Idle   0 0
Graph of results
JVM 'NODE3.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,037
Calibration 2     221,978
Calibration 3     222,666
ssj_ops@calibrated=222,322
100% 99.9% 222,322 222,116
90% 90.4% 200,090 200,956
80% 80.2% 177,858 178,249
70% 69.7% 155,626 154,989
60% 59.8% 133,393 132,954
50% 49.8% 111,161 110,765
40% 39.8% 88,929 88,435
30% 30.0% 66,697 66,609
20% 20.1% 44,464 44,695
10% 9.9% 22,232 22,045
Active Idle   0 0
Graph of results
JVM 'NODE3.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,120
Calibration 2     221,673
Calibration 3     222,177
ssj_ops@calibrated=221,925
100% 99.7% 221,925 221,195
90% 89.9% 199,733 199,461
80% 79.9% 177,540 177,266
70% 70.4% 155,348 156,158
60% 60.3% 133,155 133,836
50% 50.0% 110,963 111,024
40% 39.9% 88,770 88,528
30% 29.9% 66,578 66,435
20% 19.9% 44,385 44,120
10% 10.0% 22,193 22,208
Active Idle   0 0
Graph of results
JVM 'NODE3.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,359
Calibration 2     222,769
Calibration 3     225,179
ssj_ops@calibrated=223,974
100% 99.8% 223,974 223,450
90% 90.2% 201,577 202,126
80% 80.6% 179,180 180,417
70% 70.0% 156,782 156,855
60% 60.5% 134,385 135,398
50% 50.4% 111,987 112,773
40% 39.8% 89,590 89,244
30% 30.1% 67,192 67,328
20% 19.9% 44,795 44,588
10% 10.2% 22,397 22,783
Active Idle   0 0
Graph of results
JVM 'NODE3.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,326
Calibration 2     218,024
Calibration 3     218,752
ssj_ops@calibrated=218,388
100% 99.4% 218,388 217,146
90% 89.8% 196,549 196,063
80% 80.3% 174,711 175,320
70% 70.2% 152,872 153,323
60% 60.5% 131,033 132,185
50% 50.6% 109,194 110,424
40% 40.0% 87,355 87,340
30% 29.8% 65,516 65,157
20% 20.0% 43,678 43,642
10% 9.9% 21,839 21,691
Active Idle   0 0
Graph of results
JVM 'NODE3.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,131
Calibration 2     223,763
Calibration 3     225,016
ssj_ops@calibrated=224,389
100% 99.8% 224,389 224,004
90% 89.9% 201,950 201,786
80% 79.8% 179,511 179,154
70% 69.7% 157,072 156,479
60% 59.5% 134,633 133,616
50% 50.2% 112,195 112,633
40% 40.4% 89,756 90,576
30% 29.8% 67,317 66,919
20% 20.1% 44,878 45,195
10% 9.9% 22,439 22,214
Active Idle   0 0
Graph of results
JVM 'NODE3.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,552
Calibration 2     226,242
Calibration 3     226,537
ssj_ops@calibrated=226,389
100% 100.1% 226,389 226,724
90% 89.7% 203,750 203,004
80% 79.9% 181,111 180,915
70% 70.6% 158,472 159,928
60% 60.0% 135,834 135,820
50% 49.9% 113,195 112,991
40% 39.3% 90,556 88,955
30% 29.4% 67,917 66,585
20% 19.8% 45,278 44,882
10% 10.0% 22,639 22,733
Active Idle   0 0
Graph of results
JVM 'NODE3.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,234
Calibration 2     221,861
Calibration 3     222,753
ssj_ops@calibrated=222,307
100% 99.8% 222,307 221,778
90% 90.0% 200,076 200,034
80% 80.3% 177,845 178,469
70% 70.0% 155,615 155,630
60% 59.8% 133,384 132,873
50% 50.2% 111,153 111,539
40% 39.8% 88,923 88,537
30% 29.9% 66,692 66,484
20% 20.0% 44,461 44,520
10% 10.1% 22,231 22,351
Active Idle   0 0
Graph of results
JVM 'NODE3.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,130
Calibration 2     223,778
Calibration 3     225,803
ssj_ops@calibrated=224,791
100% 100.1% 224,791 225,006
90% 89.7% 202,312 201,694
80% 80.0% 179,833 179,826
70% 69.8% 157,354 156,912
60% 59.9% 134,874 134,690
50% 50.2% 112,395 112,800
40% 39.8% 89,916 89,421
30% 29.6% 67,437 66,601
20% 19.9% 44,958 44,791
10% 9.9% 22,479 22,320
Active Idle   0 0
Graph of results
JVM 'NODE3.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,038
Calibration 2     224,729
Calibration 3     225,298
ssj_ops@calibrated=225,014
100% 99.8% 225,014 224,542
90% 90.2% 202,512 202,961
80% 79.0% 180,011 177,763
70% 69.7% 157,510 156,920
60% 60.0% 135,008 135,054
50% 49.3% 112,507 110,854
40% 39.9% 90,005 89,829
30% 30.5% 67,504 68,527
20% 20.5% 45,003 46,107
10% 10.0% 22,501 22,486
Active Idle   0 0
Graph of results
JVM 'NODE3.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,620
Calibration 2     226,051
Calibration 3     226,502
ssj_ops@calibrated=226,277
100% 99.6% 226,277 225,366
90% 89.7% 203,649 202,992
80% 80.1% 181,022 181,186
70% 70.4% 158,394 159,193
60% 60.1% 135,766 136,001
50% 50.4% 113,138 113,947
40% 40.1% 90,511 90,698
30% 30.0% 67,883 67,934
20% 20.1% 45,255 45,471
10% 10.0% 22,628 22,741
Active Idle   0 0
Graph of results
JVM 'NODE3.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,228
Calibration 2     223,008
Calibration 3     222,982
ssj_ops@calibrated=222,995
100% 99.6% 222,995 222,113
90% 90.3% 200,696 201,294
80% 80.0% 178,396 178,494
70% 69.7% 156,097 155,354
60% 60.0% 133,797 133,819
50% 50.2% 111,498 112,055
40% 40.4% 89,198 90,076
30% 30.1% 66,899 67,083
20% 19.8% 44,599 44,221
10% 9.9% 22,300 22,133
Active Idle   0 0
Graph of results
JVM 'NODE3.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,849
Calibration 2     222,284
Calibration 3     223,351
ssj_ops@calibrated=222,818
100% 99.4% 222,818 221,483
90% 90.3% 200,536 201,236
80% 79.2% 178,254 176,553
70% 69.9% 155,972 155,735
60% 59.7% 133,691 133,003
50% 50.0% 111,409 111,508
40% 40.1% 89,127 89,440
30% 30.2% 66,845 67,340
20% 20.1% 44,564 44,787
10% 10.0% 22,282 22,195
Active Idle   0 0
Graph of results
JVM 'NODE3.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,474
Calibration 2     221,453
Calibration 3     221,932
ssj_ops@calibrated=221,692
100% 99.7% 221,692 220,936
90% 89.6% 199,523 198,674
80% 79.7% 177,354 176,628
70% 70.0% 155,185 155,147
60% 59.8% 133,015 132,536
50% 49.6% 110,846 109,938
40% 40.2% 88,677 89,084
30% 30.2% 66,508 66,860
20% 19.5% 44,338 43,331
10% 10.0% 22,169 22,262
Active Idle   0 0
Graph of results
JVM 'NODE3.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,474
Calibration 2     226,139
Calibration 3     226,109
ssj_ops@calibrated=226,124
100% 100.2% 226,124 226,556
90% 90.7% 203,511 204,995
80% 80.5% 180,899 182,094
70% 69.8% 158,287 157,913
60% 60.4% 135,674 136,544
50% 49.6% 113,062 112,169
40% 40.0% 90,449 90,479
30% 30.1% 67,837 68,080
20% 19.8% 45,225 44,830
10% 10.1% 22,612 22,916
Active Idle   0 0
Graph of results
JVM 'NODE3.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,297
Calibration 2     224,977
Calibration 3     227,338
ssj_ops@calibrated=226,157
100% 99.4% 226,157 224,871
90% 89.4% 203,542 202,219
80% 79.6% 180,926 180,121
70% 70.1% 158,310 158,465
60% 60.7% 135,694 137,264
50% 49.9% 113,079 112,890
40% 39.6% 90,463 89,660
30% 29.9% 67,847 67,575
20% 20.4% 45,231 46,074
10% 9.9% 22,616 22,345
Active Idle   0 0
Graph of results
JVM 'NODE3.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,279
Calibration 2     224,378
Calibration 3     224,963
ssj_ops@calibrated=224,671
100% 100.0% 224,671 224,567
90% 90.5% 202,204 203,303
80% 80.7% 179,737 181,319
70% 70.0% 157,270 157,321
60% 60.3% 134,802 135,541
50% 49.9% 112,335 112,043
40% 40.0% 89,868 89,874
30% 29.9% 67,401 67,073
20% 19.9% 44,934 44,608
10% 9.8% 22,467 22,112
Active Idle   0 0
Graph of results
JVM 'NODE3.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,234
Calibration 2     226,405
Calibration 3     227,474
ssj_ops@calibrated=226,940
100% 99.3% 226,940 225,370
90% 90.4% 204,246 205,092
80% 79.9% 181,552 181,354
70% 69.9% 158,858 158,688
60% 60.3% 136,164 136,896
50% 50.4% 113,470 114,406
40% 40.1% 90,776 91,041
30% 29.8% 68,082 67,631
20% 20.0% 45,388 45,416
10% 9.9% 22,694 22,566
Active Idle   0 0
Graph of results
JVM 'NODE3.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,694
Calibration 2     229,787
Calibration 3     230,330
ssj_ops@calibrated=230,058
100% 99.8% 230,058 229,557
90% 90.3% 207,053 207,714
80% 79.4% 184,047 182,613
70% 70.1% 161,041 161,261
60% 59.7% 138,035 137,278
50% 50.4% 115,029 115,856
40% 40.3% 92,023 92,752
30% 30.0% 69,018 68,968
20% 20.2% 46,012 46,359
10% 10.0% 23,006 22,920
Active Idle   0 0
Graph of results
JVM 'NODE3.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     217,893
Calibration 2     218,319
Calibration 3     217,951
ssj_ops@calibrated=218,135
100% 99.9% 218,135 217,988
90% 89.6% 196,321 195,433
80% 80.4% 174,508 175,469
70% 69.0% 152,694 150,432
60% 60.1% 130,881 131,159
50% 49.9% 109,067 108,884
40% 40.3% 87,254 87,920
30% 29.9% 65,440 65,155
20% 19.5% 43,627 42,531
10% 10.2% 21,813 22,212
Active Idle   0 0
Graph of results
JVM 'NODE3.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     221,277
Calibration 2     221,817
Calibration 3     221,774
ssj_ops@calibrated=221,795
100% 99.9% 221,795 221,616
90% 90.3% 199,616 200,256
80% 80.4% 177,436 178,269
70% 70.0% 155,257 155,363
60% 60.1% 133,077 133,210
50% 49.7% 110,898 110,310
40% 40.1% 88,718 88,873
30% 30.2% 66,539 66,952
20% 19.7% 44,359 43,761
10% 9.9% 22,180 21,854
Active Idle   0 0
Graph of results
