Compal Electronics, Inc. SD223-8A ssj_ops@100% = 14,335,993
ssj_ops@100% per JVM = 224,000
Test Sponsor: Compal Electronics, Inc. SPEC License #: 6857 Test Method: Multi Node
Tested By: Compal Electronics, Inc. Test Location: Neihu Dist, Taipei City, Taiwan (R.O.C.) Test Date: Feb 10, 2026
Hardware Availability: May-2025 Software Availability: Sep-2025 Publication: Mar 17, 2026
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,466,930
Calibration 2     14,367,965
Calibration 3     14,385,403
ssj_ops@calibrated=14,376,684
100% 99.7% 14,376,684 14,335,993
90% 89.9% 12,939,015 12,928,643
80% 80.0% 11,501,347 11,504,408
70% 70.0% 10,063,679 10,061,577
60% 60.0% 8,626,010 8,626,679
50% 49.9% 7,188,342 7,180,436
40% 40.0% 5,750,674 5,751,155
30% 30.0% 4,313,005 4,309,061
20% 20.0% 2,875,337 2,878,783
10% 10.0% 1,437,668 1,434,152
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: SUT
Hardware
Hardware Vendor: Compal Electronics, Inc.
Model: SD223-8A
Form Factor: 2U
CPU Name: AMD EPYC 9355 3.55 GHz
CPU Characteristics: 32 core, 3.55GHz, 256MB L3 Cache
CPU Frequency (MHz): 3550
CPU(s) Enabled: 64 cores, 2 chips, 32 cores/chip
Hardware Threads: 128 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 48 KB I + 48 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip, 32 MB shared/4 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: [16GB 1Rx8 PC5-4800; slots A0, B0, C0, D0, E0, F0, G0 ,H0 ,I0 ,J0 ,K0 ,L0 populated]
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 960G M.2 NVMe Express SSD, Micron p/n MTFDKBA960TFR-1BC1ZABDA
Disk Controller: Integrated PCIe controller
# and type of Network Interface Cards (NICs) Installed: 1 x PCIE i350 4-port, LR-LINK p/n LREC9714HT-PCIE
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Preferred plans in OS: Power Saver (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter Evaluation
OS Version: Version 21H2 (OS Build 20348.4648)
Filesystem: NTFS
JVM Vendor: Oracle
JVM Version: "17.0.12" 2024-07-16 LTS Java(TM) SE Runtime Environment (build 17.0.12+8-LTS-286) Java HotSpot(TM) 64-Bit Server VM (build 17.0.12+8-LTS-286, mixed mode, sharing)
JVM Command-line Options: -server -Xmn1450m -Xms1650m -Xmx1650m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:UseAVX=0 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:FreqInlineSize=2500 -XX:InlineSmallCode=3900 -XX:+UseBiasedLocking -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=8 -XX:+UseNUMA
JVM Affinity: start /NODE [0-15] /AFFINITY [0x3,0xC,0x30,0xC0]
JVM Instances: 64
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: 2.12.0
Management Firmware Version: 1.29.0
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE1.001 215,402
NODE1.002 230,309
NODE1.003 227,347
NODE1.004 225,885
NODE1.005 214,784
NODE1.006 223,909
NODE1.007 224,032
NODE1.008 220,692
NODE1.009 223,052
NODE1.010 227,904
NODE1.011 223,464
NODE1.012 217,982
NODE1.013 227,926
NODE1.014 229,114
NODE1.015 221,939
NODE1.016 218,697
NODE1.017 226,216
NODE1.018 229,092
NODE1.019 227,257
NODE1.020 224,915
NODE1.021 217,702
NODE1.022 223,174
NODE1.023 221,189
NODE1.024 225,239
NODE1.025 227,238
NODE1.026 227,179
NODE1.027 224,050
NODE1.028 225,008
NODE1.029 222,480
NODE1.030 225,007
NODE1.031 225,615
NODE1.032 221,629
NODE1.033 222,088
NODE1.034 227,741
NODE1.035 222,670
NODE1.036 222,582
NODE1.037 223,781
NODE1.038 225,017
NODE1.039 224,469
NODE1.040 221,503
NODE1.041 225,376
NODE1.042 225,525
NODE1.043 225,415
NODE1.044 228,440
NODE1.045 221,901
NODE1.046 226,771
NODE1.047 222,092
NODE1.048 223,255
NODE1.049 223,928
NODE1.050 220,631
NODE1.051 225,467
NODE1.052 221,564
NODE1.053 223,352
NODE1.054 224,568
NODE1.055 227,014
NODE1.056 222,286
NODE1.057 221,646
NODE1.058 223,237
NODE1.059 230,488
NODE1.060 220,078
NODE1.061 218,122
NODE1.062 228,460
NODE1.063 228,598
NODE1.064 222,501
ssj_ops@100% 14,335,993
ssj_ops@100% per JVM 224,000

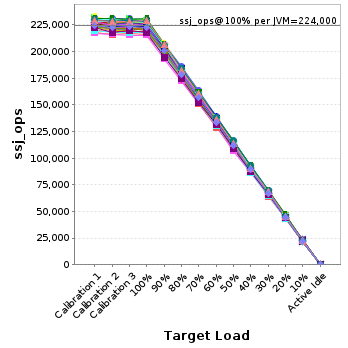

Graph of per-instance results
JVM 'NODE1.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     217,949
Calibration 2     216,191
Calibration 3     216,415
ssj_ops@calibrated=216,303
100% 99.6% 216,303 215,402
90% 90.5% 194,673 195,775
80% 79.9% 173,042 172,794
70% 69.7% 151,412 150,701
60% 59.6% 129,782 128,919
50% 50.0% 108,151 108,219
40% 40.3% 86,521 87,179
30% 29.6% 64,891 64,132
20% 20.1% 43,261 43,478
10% 9.9% 21,630 21,442
Active Idle   0 0
Graph of results
JVM 'NODE1.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     229,801
Calibration 2     231,134
Calibration 3     231,145
ssj_ops@calibrated=231,140
100% 99.6% 231,140 230,309
90% 89.4% 208,026 206,701
80% 80.3% 184,912 185,639
70% 70.8% 161,798 163,564
60% 60.0% 138,684 138,781
50% 50.1% 115,570 115,738
40% 40.4% 92,456 93,449
30% 29.9% 69,342 69,166
20% 20.0% 46,228 46,269
10% 9.8% 23,114 22,724
Active Idle   0 0
Graph of results
JVM 'NODE1.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     229,898
Calibration 2     227,441
Calibration 3     227,516
ssj_ops@calibrated=227,478
100% 99.9% 227,478 227,347
90% 90.0% 204,731 204,661
80% 79.9% 181,983 181,742
70% 70.3% 159,235 160,029
60% 60.0% 136,487 136,586
50% 50.1% 113,739 113,941
40% 40.2% 90,991 91,393
30% 29.9% 68,244 68,104
20% 20.2% 45,496 45,857
10% 10.0% 22,748 22,657
Active Idle   0 0
Graph of results
JVM 'NODE1.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,149
Calibration 2     225,937
Calibration 3     226,274
ssj_ops@calibrated=226,106
100% 99.9% 226,106 225,885
90% 89.6% 203,495 202,518
80% 80.4% 180,884 181,805
70% 70.0% 158,274 158,218
60% 60.3% 135,663 136,252
50% 50.0% 113,053 113,073
40% 39.8% 90,442 90,044
30% 30.0% 67,832 67,735
20% 19.9% 45,221 44,953
10% 10.0% 22,611 22,540
Active Idle   0 0
Graph of results
JVM 'NODE1.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     216,370
Calibration 2     215,519
Calibration 3     214,842
ssj_ops@calibrated=215,181
100% 99.8% 215,181 214,784
90% 89.4% 193,663 192,405
80% 79.7% 172,144 171,534
70% 70.3% 150,626 151,207
60% 60.1% 129,108 129,295
50% 49.2% 107,590 105,964
40% 40.0% 86,072 86,128
30% 30.0% 64,554 64,621
20% 20.0% 43,036 42,999
10% 9.9% 21,518 21,349
Active Idle   0 0
Graph of results
JVM 'NODE1.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,663
Calibration 2     224,241
Calibration 3     223,699
ssj_ops@calibrated=223,970
100% 100.0% 223,970 223,909
90% 90.9% 201,573 203,588
80% 80.1% 179,176 179,444
70% 70.0% 156,779 156,764
60% 60.0% 134,382 134,359
50% 50.2% 111,985 112,363
40% 40.3% 89,588 90,255
30% 30.1% 67,191 67,442
20% 20.0% 44,794 44,778
10% 10.0% 22,397 22,353
Active Idle   0 0
Graph of results
JVM 'NODE1.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,116
Calibration 2     222,544
Calibration 3     226,069
ssj_ops@calibrated=224,306
100% 99.9% 224,306 224,032
90% 89.6% 201,876 200,891
80% 80.0% 179,445 179,353
70% 70.3% 157,014 157,659
60% 60.3% 134,584 135,363
50% 50.1% 112,153 112,296
40% 40.2% 89,723 90,199
30% 30.2% 67,292 67,828
20% 19.7% 44,861 44,299
10% 9.9% 22,431 22,195
Active Idle   0 0
Graph of results
JVM 'NODE1.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,936
Calibration 2     220,608
Calibration 3     220,871
ssj_ops@calibrated=220,739
100% 100.0% 220,739 220,692
90% 89.3% 198,665 197,063
80% 79.8% 176,591 176,082
70% 69.9% 154,517 154,257
60% 60.1% 132,443 132,566
50% 49.6% 110,370 109,407
40% 40.1% 88,296 88,598
30% 30.0% 66,222 66,296
20% 19.8% 44,148 43,695
10% 10.0% 22,074 22,099
Active Idle   0 0
Graph of results
JVM 'NODE1.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,073
Calibration 2     224,284
Calibration 3     224,779
ssj_ops@calibrated=224,532
100% 99.3% 224,532 223,052
90% 89.9% 202,078 201,905
80% 80.1% 179,625 179,751
70% 70.3% 157,172 157,765
60% 60.5% 134,719 135,802
50% 50.3% 112,266 112,827
40% 39.9% 89,813 89,656
30% 30.1% 67,359 67,654
20% 20.1% 44,906 45,132
10% 9.9% 22,453 22,154
Active Idle   0 0
Graph of results
JVM 'NODE1.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,389
Calibration 2     228,022
Calibration 3     227,789
ssj_ops@calibrated=227,905
100% 100.0% 227,905 227,904
90% 89.9% 205,115 204,789
80% 80.5% 182,324 183,562
70% 69.7% 159,534 158,761
60% 60.1% 136,743 136,951
50% 49.7% 113,953 113,264
40% 39.7% 91,162 90,418
30% 29.9% 68,372 68,081
20% 20.1% 45,581 45,820
10% 10.2% 22,791 23,149
Active Idle   0 0
Graph of results

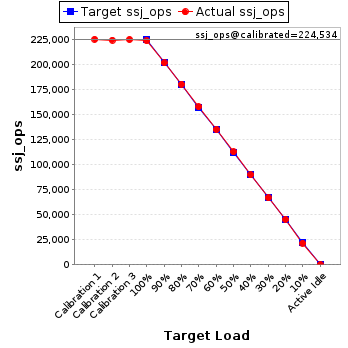

JVM 'NODE1.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,074
Calibration 2     224,271
Calibration 3     224,797
ssj_ops@calibrated=224,534
100% 99.5% 224,534 223,464
90% 89.7% 202,081 201,411
80% 80.3% 179,627 180,207
70% 70.2% 157,174 157,605
60% 60.2% 134,721 135,110
50% 50.1% 112,267 112,563
40% 39.9% 89,814 89,540
30% 29.7% 67,360 66,675
20% 20.2% 44,907 45,265
10% 9.6% 22,453 21,541
Active Idle   0 0
Graph of results
JVM 'NODE1.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,454
Calibration 2     219,509
Calibration 3     219,182
ssj_ops@calibrated=219,346
100% 99.4% 219,346 217,982
90% 89.7% 197,411 196,692
80% 80.1% 175,477 175,798
70% 69.4% 153,542 152,270
60% 59.5% 131,607 130,426
50% 50.1% 109,673 109,799
40% 40.3% 87,738 88,399
30% 30.1% 65,804 65,934
20% 20.2% 43,869 44,302
10% 10.0% 21,935 22,004
Active Idle   0 0
Graph of results
JVM 'NODE1.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     230,377
Calibration 2     228,219
Calibration 3     229,160
ssj_ops@calibrated=228,690
100% 99.7% 228,690 227,926
90% 90.4% 205,821 206,621
80% 80.1% 182,952 183,196
70% 69.7% 160,083 159,294
60% 60.3% 137,214 137,802
50% 50.4% 114,345 115,271
40% 40.3% 91,476 92,207
30% 30.0% 68,607 68,607
20% 20.1% 45,738 46,017
10% 10.0% 22,869 22,952
Active Idle   0 0
Graph of results
JVM 'NODE1.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,208
Calibration 2     229,200
Calibration 3     228,863
ssj_ops@calibrated=229,032
100% 100.0% 229,032 229,114
90% 90.3% 206,129 206,809
80% 80.1% 183,225 183,509
70% 70.7% 160,322 161,876
60% 60.3% 137,419 138,189
50% 50.0% 114,516 114,439
40% 39.6% 91,613 90,787
30% 29.8% 68,710 68,209
20% 19.9% 45,806 45,654
10% 9.9% 22,903 22,720
Active Idle   0 0
Graph of results
JVM 'NODE1.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,326
Calibration 2     222,734
Calibration 3     223,080
ssj_ops@calibrated=222,907
100% 99.6% 222,907 221,939
90% 89.9% 200,617 200,405
80% 79.5% 178,326 177,245
70% 69.7% 156,035 155,316
60% 59.9% 133,744 133,609
50% 49.7% 111,454 110,876
40% 39.7% 89,163 88,413
30% 29.8% 66,872 66,331
20% 19.7% 44,581 43,994
10% 9.8% 22,291 21,936
Active Idle   0 0
Graph of results

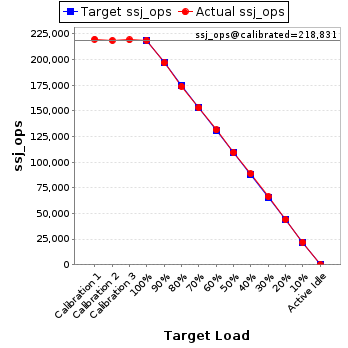

JVM 'NODE1.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     219,804
Calibration 2     218,557
Calibration 3     219,104
ssj_ops@calibrated=218,831
100% 99.9% 218,831 218,697
90% 89.9% 196,948 196,745
80% 79.4% 175,064 173,692
70% 69.9% 153,181 152,928
60% 60.0% 131,298 131,390
50% 50.0% 109,415 109,382
40% 40.5% 87,532 88,596
30% 30.3% 65,649 66,309
20% 20.1% 43,766 44,070
10% 10.1% 21,883 22,020
Active Idle   0 0
Graph of results
JVM 'NODE1.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,611
Calibration 2     226,951
Calibration 3     226,240
ssj_ops@calibrated=226,596
100% 99.8% 226,596 226,216
90% 90.4% 203,936 204,877
80% 80.1% 181,276 181,456
70% 70.0% 158,617 158,567
60% 59.8% 135,957 135,429
50% 49.7% 113,298 112,700
40% 40.0% 90,638 90,714
30% 30.2% 67,979 68,466
20% 20.1% 45,319 45,456
10% 10.1% 22,660 22,874
Active Idle   0 0
Graph of results
JVM 'NODE1.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     231,359
Calibration 2     229,326
Calibration 3     230,814
ssj_ops@calibrated=230,070
100% 99.6% 230,070 229,092
90% 90.2% 207,063 207,409
80% 79.3% 184,056 182,448
70% 69.7% 161,049 160,457
60% 60.2% 138,042 138,430
50% 50.2% 115,035 115,526
40% 39.7% 92,028 91,323
30% 30.3% 69,021 69,643
20% 20.0% 46,014 45,932
10% 9.9% 23,007 22,782
Active Idle   0 0
Graph of results
JVM 'NODE1.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     232,822
Calibration 2     228,698
Calibration 3     229,075
ssj_ops@calibrated=228,887
100% 99.3% 228,887 227,257
90% 90.6% 205,998 207,265
80% 79.8% 183,109 182,663
70% 70.2% 160,221 160,647
60% 60.2% 137,332 137,831
50% 50.2% 114,443 114,851
40% 40.0% 91,555 91,540
30% 30.0% 68,666 68,700
20% 19.8% 45,777 45,349
10% 9.7% 22,889 22,316
Active Idle   0 0
Graph of results
JVM 'NODE1.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,750
Calibration 2     224,367
Calibration 3     224,924
ssj_ops@calibrated=224,646
100% 100.1% 224,646 224,915
90% 89.7% 202,181 201,445
80% 80.3% 179,716 180,490
70% 69.9% 157,252 156,919
60% 59.1% 134,787 132,760
50% 49.9% 112,323 112,084
40% 40.0% 89,858 89,828
30% 30.0% 67,394 67,483
20% 19.8% 44,929 44,580
10% 10.0% 22,465 22,449
Active Idle   0 0
Graph of results
JVM 'NODE1.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     219,347
Calibration 2     218,102
Calibration 3     217,892
ssj_ops@calibrated=217,997
100% 99.9% 217,997 217,702
90% 90.0% 196,198 196,124
80% 80.2% 174,398 174,771
70% 69.6% 152,598 151,670
60% 60.0% 130,798 130,887
50% 50.1% 108,999 109,108
40% 39.8% 87,199 86,848
30% 29.7% 65,399 64,819
20% 19.9% 43,599 43,456
10% 10.0% 21,800 21,736
Active Idle   0 0
Graph of results
JVM 'NODE1.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,849
Calibration 2     225,280
Calibration 3     224,764
ssj_ops@calibrated=225,022
100% 99.2% 225,022 223,174
90% 89.6% 202,520 201,683
80% 80.6% 180,018 181,352
70% 69.9% 157,516 157,267
60% 59.8% 135,013 134,599
50% 49.4% 112,511 111,263
40% 39.5% 90,009 88,798
30% 30.0% 67,507 67,436
20% 19.6% 45,004 44,186
10% 10.0% 22,502 22,561
Active Idle   0 0
Graph of results
JVM 'NODE1.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,679
Calibration 2     222,998
Calibration 3     222,785
ssj_ops@calibrated=222,891
100% 99.2% 222,891 221,189
90% 90.1% 200,602 200,734
80% 79.5% 178,313 177,218
70% 70.4% 156,024 156,853
60% 59.9% 133,735 133,515
50% 49.9% 111,446 111,290
40% 39.7% 89,156 88,589
30% 30.0% 66,867 66,915
20% 20.1% 44,578 44,701
10% 9.9% 22,289 22,132
Active Idle   0 0
Graph of results
JVM 'NODE1.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,979
Calibration 2     225,860
Calibration 3     225,820
ssj_ops@calibrated=225,840
100% 99.7% 225,840 225,239
90% 90.0% 203,256 203,221
80% 80.7% 180,672 182,222
70% 70.1% 158,088 158,260
60% 60.5% 135,504 136,609
50% 49.9% 112,920 112,797
40% 39.8% 90,336 89,847
30% 29.8% 67,752 67,387
20% 20.3% 45,168 45,936
10% 9.8% 22,584 22,107
Active Idle   0 0
Graph of results
JVM 'NODE1.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,624
Calibration 2     229,604
Calibration 3     229,197
ssj_ops@calibrated=229,401
100% 99.1% 229,401 227,238
90% 89.9% 206,461 206,292
80% 79.8% 183,521 183,123
70% 70.8% 160,580 162,437
60% 60.2% 137,640 138,016
50% 50.5% 114,700 115,942
40% 40.4% 91,760 92,603
30% 29.9% 68,820 68,675
20% 20.0% 45,880 45,840
10% 10.0% 22,940 22,904
Active Idle   0 0
Graph of results
JVM 'NODE1.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     229,675
Calibration 2     227,053
Calibration 3     227,299
ssj_ops@calibrated=227,176
100% 100.0% 227,176 227,179
90% 90.1% 204,459 204,664
80% 79.6% 181,741 180,877
70% 69.9% 159,023 158,702
60% 59.9% 136,306 136,000
50% 50.1% 113,588 113,758
40% 40.0% 90,870 90,793
30% 30.0% 68,153 68,057
20% 19.9% 45,435 45,294
10% 10.2% 22,718 23,062
Active Idle   0 0
Graph of results
JVM 'NODE1.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,727
Calibration 2     223,389
Calibration 3     223,590
ssj_ops@calibrated=223,490
100% 100.3% 223,490 224,050
90% 90.5% 201,141 202,249
80% 79.8% 178,792 178,252
70% 70.1% 156,443 156,584
60% 59.8% 134,094 133,696
50% 49.6% 111,745 110,883
40% 40.1% 89,396 89,578
30% 30.0% 67,047 66,938
20% 20.1% 44,698 44,833
10% 10.0% 22,349 22,271
Active Idle   0 0
Graph of results
JVM 'NODE1.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,348
Calibration 2     224,874
Calibration 3     224,858
ssj_ops@calibrated=224,866
100% 100.1% 224,866 225,008
90% 89.7% 202,379 201,609
80% 80.4% 179,893 180,816
70% 70.1% 157,406 157,582
60% 59.8% 134,920 134,577
50% 50.1% 112,433 112,768
40% 39.9% 89,946 89,802
30% 30.2% 67,460 67,977
20% 19.8% 44,973 44,523
10% 10.2% 22,487 22,953
Active Idle   0 0
Graph of results
JVM 'NODE1.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,300
Calibration 2     222,402
Calibration 3     224,342
ssj_ops@calibrated=223,372
100% 99.6% 223,372 222,480
90% 89.4% 201,035 199,741
80% 79.9% 178,698 178,562
70% 70.3% 156,360 157,080
60% 60.0% 134,023 134,024
50% 50.3% 111,686 112,336
40% 40.1% 89,349 89,644
30% 29.9% 67,012 66,860
20% 20.2% 44,674 45,065
10% 10.0% 22,337 22,269
Active Idle   0 0
Graph of results
JVM 'NODE1.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     229,869
Calibration 2     226,892
Calibration 3     226,929
ssj_ops@calibrated=226,910
100% 99.2% 226,910 225,007
90% 89.4% 204,219 202,959
80% 80.1% 181,528 181,761
70% 69.5% 158,837 157,783
60% 59.8% 136,146 135,754
50% 50.3% 113,455 114,169
40% 39.7% 90,764 90,165
30% 30.0% 68,073 68,154
20% 20.1% 45,382 45,556
10% 9.9% 22,691 22,528
Active Idle   0 0
Graph of results
JVM 'NODE1.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,563
Calibration 2     225,509
Calibration 3     225,719
ssj_ops@calibrated=225,614
100% 100.0% 225,614 225,615
90% 90.9% 203,052 205,020
80% 80.1% 180,491 180,753
70% 70.1% 157,930 158,056
60% 60.0% 135,368 135,392
50% 49.9% 112,807 112,592
40% 39.9% 90,246 90,089
30% 29.4% 67,684 66,249
20% 20.1% 45,123 45,382
10% 9.9% 22,561 22,236
Active Idle   0 0
Graph of results
JVM 'NODE1.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,972
Calibration 2     223,929
Calibration 3     224,227
ssj_ops@calibrated=224,078
100% 98.9% 224,078 221,629
90% 89.9% 201,670 201,336
80% 79.8% 179,262 178,798
70% 70.6% 156,854 158,115
60% 60.3% 134,447 135,120
50% 49.4% 112,039 110,734
40% 40.4% 89,631 90,483
30% 30.0% 67,223 67,124
20% 20.1% 44,816 45,015
10% 10.0% 22,408 22,420
Active Idle   0 0
Graph of results
JVM 'NODE1.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,655
Calibration 2     221,619
Calibration 3     221,072
ssj_ops@calibrated=221,345
100% 100.3% 221,345 222,088
90% 90.3% 199,211 199,772
80% 80.2% 177,076 177,438
70% 70.5% 154,942 155,949
60% 59.9% 132,807 132,478
50% 50.1% 110,673 110,952
40% 39.6% 88,538 87,644
30% 30.0% 66,404 66,502
20% 20.0% 44,269 44,258
10% 9.9% 22,135 21,911
Active Idle   0 0
Graph of results
JVM 'NODE1.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     229,534
Calibration 2     229,588
Calibration 3     228,813
ssj_ops@calibrated=229,200
100% 99.4% 229,200 227,741
90% 90.3% 206,280 206,899
80% 79.8% 183,360 182,845
70% 70.3% 160,440 161,113
60% 60.2% 137,520 138,030
50% 49.9% 114,600 114,287
40% 39.9% 91,680 91,366
30% 29.9% 68,760 68,558
20% 19.8% 45,840 45,360
10% 10.1% 22,920 23,174
Active Idle   0 0
Graph of results
JVM 'NODE1.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,416
Calibration 2     223,062
Calibration 3     223,685
ssj_ops@calibrated=223,373
100% 99.7% 223,373 222,670
90% 89.5% 201,036 199,952
80% 79.9% 178,699 178,573
70% 69.7% 156,361 155,664
60% 59.5% 134,024 132,992
50% 49.5% 111,687 110,544
40% 39.6% 89,349 88,377
30% 30.0% 67,012 67,093
20% 20.4% 44,675 45,494
10% 9.9% 22,337 22,208
Active Idle   0 0
Graph of results
JVM 'NODE1.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     223,260
Calibration 2     221,777
Calibration 3     222,106
ssj_ops@calibrated=221,941
100% 100.3% 221,941 222,582
90% 90.1% 199,747 199,923
80% 80.6% 177,553 178,842
70% 69.9% 155,359 155,027
60% 60.4% 133,165 133,983
50% 49.9% 110,971 110,826
40% 40.5% 88,777 89,866
30% 30.4% 66,582 67,421
20% 20.1% 44,388 44,578
10% 9.9% 22,194 21,983
Active Idle   0 0
Graph of results
JVM 'NODE1.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,947
Calibration 2     223,964
Calibration 3     224,721
ssj_ops@calibrated=224,343
100% 99.7% 224,343 223,781
90% 90.0% 201,908 201,978
80% 79.6% 179,474 178,603
70% 69.8% 157,040 156,495
60% 60.6% 134,606 135,956
50% 49.3% 112,171 110,622
40% 40.2% 89,737 90,247
30% 29.7% 67,303 66,530
20% 19.8% 44,869 44,492
10% 9.9% 22,434 22,246
Active Idle   0 0
Graph of results
JVM 'NODE1.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,153
Calibration 2     224,356
Calibration 3     224,693
ssj_ops@calibrated=224,524
100% 100.2% 224,524 225,017
90% 89.9% 202,072 201,879
80% 79.0% 179,620 177,371
70% 69.7% 157,167 156,505
60% 59.8% 134,715 134,155
50% 49.2% 112,262 110,509
40% 40.2% 89,810 90,173
30% 29.9% 67,357 67,229
20% 19.9% 44,905 44,782
10% 9.9% 22,452 22,191
Active Idle   0 0
Graph of results
JVM 'NODE1.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,686
Calibration 2     224,820
Calibration 3     224,569
ssj_ops@calibrated=224,694
100% 99.9% 224,694 224,469
90% 89.6% 202,225 201,332
80% 80.0% 179,756 179,813
70% 69.8% 157,286 156,821
60% 60.6% 134,817 136,250
50% 49.8% 112,347 111,851
40% 40.1% 89,878 90,057
30% 29.7% 67,408 66,745
20% 20.1% 44,939 45,148
10% 9.8% 22,469 22,082
Active Idle   0 0
Graph of results
JVM 'NODE1.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,283
Calibration 2     222,598
Calibration 3     222,687
ssj_ops@calibrated=222,643
100% 99.5% 222,643 221,503
90% 90.6% 200,378 201,794
80% 80.0% 178,114 178,133
70% 69.8% 155,850 155,358
60% 59.8% 133,586 133,143
50% 49.6% 111,321 110,473
40% 40.0% 89,057 89,163
30% 30.0% 66,793 66,883
20% 20.4% 44,529 45,502
10% 10.0% 22,264 22,349
Active Idle   0 0
Graph of results
JVM 'NODE1.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,240
Calibration 2     226,915
Calibration 3     226,768
ssj_ops@calibrated=226,841
100% 99.4% 226,841 225,376
90% 90.5% 204,157 205,260
80% 80.1% 181,473 181,662
70% 69.5% 158,789 157,713
60% 59.7% 136,105 135,511
50% 50.2% 113,421 113,944
40% 40.3% 90,736 91,509
30% 29.5% 68,052 66,984
20% 20.3% 45,368 45,947
10% 9.9% 22,684 22,517
Active Idle   0 0
Graph of results
JVM 'NODE1.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,938
Calibration 2     225,862
Calibration 3     226,651
ssj_ops@calibrated=226,256
100% 99.7% 226,256 225,525
90% 90.1% 203,631 203,919
80% 80.3% 181,005 181,608
70% 70.3% 158,379 159,129
60% 60.2% 135,754 136,231
50% 49.9% 113,128 112,905
40% 40.3% 90,503 91,075
30% 30.0% 67,877 67,870
20% 19.8% 45,251 44,767
10% 10.1% 22,626 22,758
Active Idle   0 0
Graph of results
JVM 'NODE1.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,267
Calibration 2     226,314
Calibration 3     226,985
ssj_ops@calibrated=226,650
100% 99.5% 226,650 225,415
90% 89.9% 203,985 203,815
80% 80.2% 181,320 181,775
70% 69.8% 158,655 158,249
60% 60.2% 135,990 136,479
50% 50.7% 113,325 114,884
40% 40.0% 90,660 90,771
30% 30.0% 67,995 67,892
20% 20.0% 45,330 45,394
10% 10.3% 22,665 23,387
Active Idle   0 0
Graph of results
JVM 'NODE1.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,626
Calibration 2     227,803
Calibration 3     228,793
ssj_ops@calibrated=228,298
100% 100.1% 228,298 228,440
90% 89.9% 205,468 205,142
80% 80.3% 182,639 183,312
70% 70.5% 159,809 160,837
60% 60.7% 136,979 138,495
50% 49.9% 114,149 113,978
40% 39.6% 91,319 90,494
30% 30.1% 68,489 68,613
20% 20.2% 45,660 46,157
10% 10.1% 22,830 23,136
Active Idle   0 0
Graph of results
JVM 'NODE1.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,336
Calibration 2     222,370
Calibration 3     221,542
ssj_ops@calibrated=221,956
100% 100.0% 221,956 221,901
90% 89.5% 199,760 198,759
80% 79.8% 177,565 177,093
70% 69.7% 155,369 154,762
60% 59.8% 133,174 132,699
50% 49.8% 110,978 110,432
40% 40.1% 88,782 88,968
30% 30.0% 66,587 66,642
20% 20.3% 44,391 45,044
10% 9.9% 22,196 22,062
Active Idle   0 0
Graph of results
JVM 'NODE1.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,866
Calibration 2     226,033
Calibration 3     227,123
ssj_ops@calibrated=226,578
100% 100.1% 226,578 226,771
90% 90.1% 203,920 204,135
80% 80.1% 181,263 181,528
70% 69.9% 158,605 158,388
60% 60.2% 135,947 136,399
50% 50.1% 113,289 113,454
40% 40.5% 90,631 91,854
30% 29.7% 67,973 67,341
20% 20.2% 45,316 45,711
10% 10.1% 22,658 22,849
Active Idle   0 0
Graph of results
JVM 'NODE1.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,818
Calibration 2     222,825
Calibration 3     222,992
ssj_ops@calibrated=222,908
100% 99.6% 222,908 222,092
90% 90.1% 200,617 200,745
80% 80.9% 178,327 180,362
70% 70.0% 156,036 155,929
60% 59.7% 133,745 132,985
50% 49.9% 111,454 111,222
40% 40.1% 89,163 89,363
30% 29.7% 66,872 66,243
20% 19.9% 44,582 44,261
10% 10.1% 22,291 22,425
Active Idle   0 0
Graph of results
JVM 'NODE1.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,976
Calibration 2     222,769
Calibration 3     223,277
ssj_ops@calibrated=223,023
100% 100.1% 223,023 223,255
90% 89.7% 200,720 199,981
80% 79.4% 178,418 177,185
70% 69.8% 156,116 155,653
60% 59.7% 133,814 133,241
50% 49.7% 111,511 110,918
40% 39.7% 89,209 88,467
30% 30.0% 66,907 66,858
20% 20.0% 44,605 44,621
10% 10.3% 22,302 22,945
Active Idle   0 0
Graph of results
JVM 'NODE1.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,039
Calibration 2     225,551
Calibration 3     227,333
ssj_ops@calibrated=226,442
100% 98.9% 226,442 223,928
90% 89.9% 203,798 203,534
80% 80.9% 181,154 183,252
70% 70.1% 158,509 158,803
60% 60.0% 135,865 135,953
50% 49.9% 113,221 112,987
40% 39.9% 90,577 90,344
30% 30.1% 67,933 68,064
20% 19.8% 45,288 44,795
10% 10.1% 22,644 22,941
Active Idle   0 0
Graph of results
JVM 'NODE1.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,370
Calibration 2     222,350
Calibration 3     222,083
ssj_ops@calibrated=222,216
100% 99.3% 222,216 220,631
90% 90.1% 199,995 200,327
80% 79.8% 177,773 177,321
70% 70.0% 155,551 155,489
60% 59.9% 133,330 133,139
50% 49.8% 111,108 110,563
40% 39.8% 88,887 88,439
30% 30.2% 66,665 67,138
20% 20.1% 44,443 44,580
10% 10.0% 22,222 22,132
Active Idle   0 0
Graph of results
JVM 'NODE1.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,784
Calibration 2     225,610
Calibration 3     225,902
ssj_ops@calibrated=225,756
100% 99.9% 225,756 225,467
90% 90.0% 203,180 203,100
80% 80.1% 180,605 180,823
70% 69.6% 158,029 157,019
60% 60.2% 135,454 135,972
50% 49.9% 112,878 112,665
40% 39.7% 90,302 89,523
30% 29.8% 67,727 67,386
20% 20.0% 45,151 45,221
10% 10.0% 22,576 22,495
Active Idle   0 0
Graph of results
JVM 'NODE1.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,389
Calibration 2     223,214
Calibration 3     223,180
ssj_ops@calibrated=223,197
100% 99.3% 223,197 221,564
90% 89.0% 200,877 198,559
80% 80.1% 178,557 178,806
70% 69.7% 156,238 155,506
60% 59.7% 133,918 133,229
50% 50.1% 111,598 111,817
40% 40.5% 89,279 90,450
30% 30.2% 66,959 67,457
20% 20.0% 44,639 44,678
10% 9.9% 22,320 22,153
Active Idle   0 0

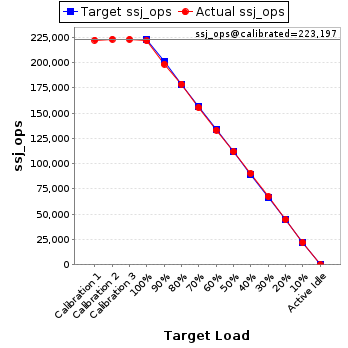

Graph of results
JVM 'NODE1.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     226,194
Calibration 2     223,800
Calibration 3     223,678
ssj_ops@calibrated=223,739
100% 99.8% 223,739 223,352
90% 89.5% 201,365 200,185
80% 79.8% 178,991 178,556
70% 69.6% 156,617 155,823
60% 59.3% 134,243 132,681
50% 49.7% 111,869 111,298
40% 39.9% 89,496 89,372
30% 30.2% 67,122 67,577
20% 19.7% 44,748 44,178
10% 9.9% 22,374 22,236
Active Idle   0 0
Graph of results
JVM 'NODE1.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,099
Calibration 2     224,353
Calibration 3     225,355
ssj_ops@calibrated=224,854
100% 99.9% 224,854 224,568
90% 89.2% 202,368 200,681
80% 80.5% 179,883 180,996
70% 70.4% 157,398 158,372
60% 60.4% 134,912 135,834
50% 49.9% 112,427 112,269
40% 39.6% 89,942 89,077
30% 29.9% 67,456 67,343
20% 20.3% 44,971 45,740
10% 10.2% 22,485 22,949
Active Idle   0 0
Graph of results
JVM 'NODE1.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     227,660
Calibration 2     228,355
Calibration 3     228,210
ssj_ops@calibrated=228,282
100% 99.4% 228,282 227,014
90% 89.5% 205,454 204,316
80% 79.7% 182,626 181,937
70% 70.2% 159,797 160,156
60% 60.1% 136,969 137,274
50% 50.0% 114,141 114,030
40% 40.1% 91,313 91,524
30% 29.9% 68,485 68,319
20% 20.3% 45,656 46,278
10% 9.9% 22,828 22,700
Active Idle   0 0
Graph of results
JVM 'NODE1.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,900
Calibration 2     223,075
Calibration 3     222,973
ssj_ops@calibrated=223,024
100% 99.7% 223,024 222,286
90% 90.7% 200,722 202,234
80% 80.1% 178,419 178,710
70% 69.3% 156,117 154,631
60% 59.7% 133,814 133,087
50% 49.8% 111,512 110,972
40% 39.5% 89,210 88,125
30% 30.0% 66,907 66,969
20% 20.0% 44,605 44,666
10% 9.9% 22,302 22,008
Active Idle   0 0
Graph of results
JVM 'NODE1.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     225,742
Calibration 2     223,333
Calibration 3     224,098
ssj_ops@calibrated=223,716
100% 99.1% 223,716 221,646
90% 90.5% 201,344 202,461
80% 79.5% 178,973 177,961
70% 69.5% 156,601 155,451
60% 60.0% 134,230 134,206
50% 50.0% 111,858 111,819
40% 39.8% 89,486 89,016
30% 29.7% 67,115 66,376
20% 19.9% 44,743 44,507
10% 10.1% 22,372 22,574
Active Idle   0 0

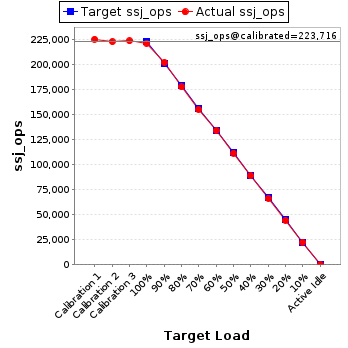

Graph of results
JVM 'NODE1.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,094
Calibration 2     222,956
Calibration 3     223,478
ssj_ops@calibrated=223,217
100% 100.0% 223,217 223,237
90% 89.7% 200,895 200,136
80% 79.9% 178,574 178,388
70% 70.0% 156,252 156,242
60% 59.9% 133,930 133,743
50% 50.0% 111,609 111,649
40% 39.7% 89,287 88,556
30% 29.7% 66,965 66,338
20% 19.8% 44,643 44,305
10% 9.8% 22,322 21,862
Active Idle   0 0
Graph of results
JVM 'NODE1.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     230,703
Calibration 2     230,600
Calibration 3     229,691
ssj_ops@calibrated=230,145
100% 100.1% 230,145 230,488
90% 89.8% 207,131 206,587
80% 79.9% 184,116 183,885
70% 70.2% 161,102 161,660
60% 59.7% 138,087 137,430
50% 50.2% 115,073 115,439
40% 40.5% 92,058 93,131
30% 30.1% 69,044 69,179
20% 20.4% 46,029 47,053
10% 9.8% 23,015 22,466
Active Idle   0 0
Graph of results
JVM 'NODE1.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,919
Calibration 2     221,466
Calibration 3     221,409
ssj_ops@calibrated=221,437
100% 99.4% 221,437 220,078
90% 89.8% 199,294 198,782
80% 80.4% 177,150 177,941
70% 69.6% 155,006 154,156
60% 59.4% 132,862 131,478
50% 49.6% 110,719 109,886
40% 40.1% 88,575 88,836
30% 30.1% 66,431 66,674
20% 20.0% 44,287 44,315
10% 10.2% 22,144 22,490
Active Idle   0 0
Graph of results
JVM 'NODE1.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     222,476
Calibration 2     217,901
Calibration 3     219,559
ssj_ops@calibrated=218,730
100% 99.7% 218,730 218,122
90% 88.9% 196,857 194,537
80% 79.7% 174,984 174,422
70% 69.6% 153,111 152,128
60% 60.2% 131,238 131,619
50% 49.9% 109,365 109,220
40% 39.7% 87,492 86,927
30% 30.1% 65,619 65,884
20% 20.2% 43,746 44,158
10% 10.2% 21,873 22,254
Active Idle   0 0
Graph of results
JVM 'NODE1.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     229,669
Calibration 2     228,298
Calibration 3     229,218
ssj_ops@calibrated=228,758
100% 99.9% 228,758 228,460
90% 89.9% 205,882 205,750
80% 80.6% 183,006 184,361
70% 69.7% 160,131 159,402
60% 60.4% 137,255 138,194
50% 50.7% 114,379 116,064
40% 40.5% 91,503 92,547
30% 30.2% 68,627 69,177
20% 19.8% 45,752 45,369
10% 9.8% 22,876 22,453
Active Idle   0 0
Graph of results
JVM 'NODE1.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     228,817
Calibration 2     228,151
Calibration 3     227,747
ssj_ops@calibrated=227,949
100% 100.3% 227,949 228,598
90% 90.4% 205,154 206,105
80% 79.9% 182,359 182,082
70% 70.6% 159,564 160,927
60% 59.8% 136,769 136,312
50% 49.9% 113,974 113,826
40% 39.6% 91,180 90,359
30% 30.3% 68,385 69,022
20% 20.0% 45,590 45,582
10% 9.9% 22,795 22,678
Active Idle   0 0
Graph of results
JVM 'NODE1.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     224,012
Calibration 2     222,632
Calibration 3     222,953
ssj_ops@calibrated=222,792
100% 99.9% 222,792 222,501
90% 90.0% 200,513 200,457
80% 79.9% 178,234 177,909
70% 70.5% 155,955 157,030
60% 59.9% 133,675 133,461
50% 50.2% 111,396 111,905
40% 40.2% 89,117 89,631
30% 30.0% 66,838 66,746
20% 19.8% 44,558 44,153
10% 9.9% 22,279 22,103
Active Idle   0 0
Graph of results
