SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2026 Standard Performance Evaluation Corporation
| Compal Electronics, Inc. SR224-2A | SPECpower_ssj2008 = 30,134 overall ssj_ops/watt | ||||
| Test Sponsor: | Compal Electronics, Inc. | SPEC License #: | 6857 | Test Method: | Single Node |
| Tested By: | Compal Electronics, Inc. | Test Location: | Neihu Dist, Taipei City, Taiwan (R.O.C.) | Test Date: | Jan 20, 2026 |
| Hardware Availability: | Mar-2025 | Software Availability: | Nov-2025 | Publication: | Mar 9, 2026 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

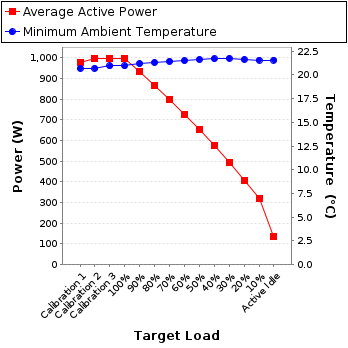

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 977 | 20.7 |
| Calibration 2 | 998 | 20.7 |
| Calibration 3 | 998 | 20.9 |
| 100% | 997 | 20.9 |
| 90% | 936 | 21.2 |
| 80% | 867 | 21.3 |
| 70% | 801 | 21.4 |
| 60% | 726 | 21.5 |
| 50% | 652 | 21.6 |
| 40% | 576 | 21.7 |
| 30% | 493 | 21.8 |
| 20% | 408 | 21.6 |
| 10% | 318 | 21.6 |
| Active Idle | 138 | 21.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT310E |
| Serial Number: | C3UE28006E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory,Taiwan) |
| Accredited by: | OMNIO Calibration Laboratory Ltd. |
| Calibration Label: | OCL-250527T022 |
| Date of Calibration: | 28-May-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.3-a7835373-20251015 |
| Setup Description: | SUT Power Supply 1. |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Cleware |
| Model: | USB-Temp |
| Driver Version: | 5.3.4.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | The front top of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 223 | 300.0 | 4.42 | 10.0 | 0.990 | 977 | 0.3% |
| Calibration 2 | 223 | 300.0 | 4.51 | 10.0 | 0.990 | 998 | 0.3% |
| Calibration 3 | 224 | 300.0 | 4.49 | 10.0 | 0.991 | 998 | 0.3% |
| 100% | 224 | 300.0 | 4.50 | 10.0 | 0.989 | 997 | 0.3% |
| 90% | 224 | 300.0 | 4.24 | 10.0 | 0.986 | 936 | 0.3% |
| 80% | 222 | 300.0 | 3.94 | 10.0 | 0.992 | 867 | 0.3% |
| 70% | 223 | 300.0 | 3.62 | 10.0 | 0.992 | 801 | 0.3% |
| 60% | 223 | 300.0 | 3.28 | 10.0 | 0.991 | 726 | 0.3% |
| 50% | 223 | 300.0 | 2.96 | 10.0 | 0.989 | 652 | 0.4% |
| 40% | 223 | 300.0 | 2.62 | 10.0 | 0.985 | 576 | 0.4% |
| 30% | 223 | 300.0 | 2.25 | 10.0 | 0.982 | 493 | 0.4% |
| 20% | 225 | 300.0 | 1.86 | 5.0 | 0.975 | 408 | 0.3% |
| 10% | 225 | 300.0 | 1.47 | 5.0 | 0.963 | 318 | 0.4% |
| Active Idle | 225 | 300.0 | 0.733 | 5.0 | 0.841 | 138 | 0.7% |
