SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2026 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R770AP (Intel Xeon 6980P) | SPECpower_ssj2008 = 22,805 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Jan 11, 2026 |
| Hardware Availability: | Dec-2025 | Software Availability: | Dec-2025 | Publication: | Jan 27, 2026 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

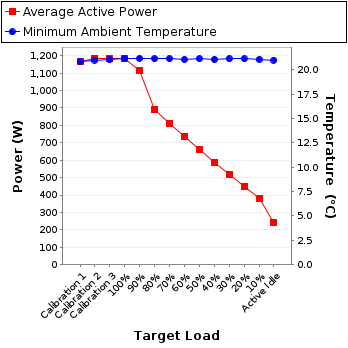

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,164 | 20.9 |
| Calibration 2 | 1,181 | 21.0 |
| Calibration 3 | 1,182 | 21.1 |
| 100% | 1,185 | 21.1 |
| 90% | 1,114 | 21.2 |
| 80% | 888 | 21.1 |
| 70% | 812 | 21.1 |
| 60% | 738 | 21.1 |
| 50% | 664 | 21.1 |
| 40% | 588 | 21.1 |
| 30% | 516 | 21.1 |
| 20% | 450 | 21.1 |
| 10% | 381 | 21.1 |
| Active Idle | 241 | 21.0 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT310 |
| Serial Number: | T11733387 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | T126625 |
| Date of Calibration: | 13-Aug-2025 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.3-a7835373-20251015 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 204 | 300.0 | 5.71 | 10.0 | 0.997 | 1,164 | 0.3% |
| Calibration 2 | 204 | 300.0 | 5.80 | 10.0 | 0.997 | 1,181 | 0.3% |
| Calibration 3 | 204 | 300.0 | 5.80 | 10.0 | 0.997 | 1,182 | 0.3% |
| 100% | 204 | 300.0 | 5.82 | 10.0 | 0.997 | 1,185 | 0.2% |
| 90% | 204 | 300.0 | 5.47 | 10.0 | 0.996 | 1,114 | 0.3% |
| 80% | 205 | 300.0 | 4.36 | 10.0 | 0.995 | 888 | 0.3% |
| 70% | 205 | 300.0 | 3.98 | 10.0 | 0.995 | 812 | 0.3% |
| 60% | 205 | 300.0 | 3.62 | 5.0 | 0.994 | 738 | 0.2% |
| 50% | 205 | 300.0 | 3.25 | 5.0 | 0.994 | 664 | 0.2% |
| 40% | 205 | 300.0 | 2.88 | 5.0 | 0.993 | 588 | 0.3% |
| 30% | 206 | 300.0 | 2.53 | 5.0 | 0.992 | 516 | 0.3% |
| 20% | 206 | 300.0 | 2.21 | 5.0 | 0.990 | 450 | 0.3% |
| 10% | 206 | 300.0 | 1.88 | 5.0 | 0.986 | 381 | 0.3% |
| Active Idle | 206 | 300.0 | 1.22 | 2.0 | 0.964 | 241 | 0.3% |
