Lenovo Global Technology ThinkEdge SE100 ssj_ops@100% = 978,080
ssj_ops@100% per JVM = 61,130
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jun 27, 2025
Hardware Availability: May-2025 Software Availability: Sep-2024 Publication: Jul 16, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     817,502
Calibration 2     965,021
Calibration 3     995,262
ssj_ops@calibrated=980,141
100% 99.8% 980,141 978,080
90% 90.0% 882,127 882,613
80% 80.1% 784,113 785,073
70% 69.9% 686,099 684,863
60% 60.1% 588,085 589,303
50% 50.0% 490,071 489,923
40% 39.9% 392,057 390,920
30% 30.0% 294,042 294,299
20% 20.0% 196,028 196,264
10% 10.0% 98,014 97,951
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkEdge SE100
Form Factor: 1U
CPU Name: Intel Core Ultra 7 255H
CPU Characteristics: 16 Core, 2.0GHz, 24MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 16 cores, 1 chip, 16 cores/chip
Hardware Threads: 16 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 64 KB I + 48 KB D on chip per core
Secondary Cache: 3 MB I+D on chip per core
Tertiary Cache: 24 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8192 MB
Memory Details: 8GB 1Rx16 PC5-6400B; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A89422
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1GbE RJ45
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows 11 Enterprise
OS Version: Version 24H2(OS Build 26100.1742)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn450m -Xms512m -Xmx512m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210
JVM Affinity: start /NODE [0] /AFFINITY [0x1,0x2,0x4,0x8,0x10,0x20,0x40,0x80,0x100,0x200,0x400,0x800,0x1000,0x2000,0x4000,0x8000]
JVM Instances: 16
JVM Initial Heap (MB): 512
JVM Maximum Heap (MB): 512
JVM Address Bits: 64
Boot Firmware Version: DZE104U
Management Firmware Version: DZX310C
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5043080
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
DESKTOP-KJ3I2UJ.001 85,286
DESKTOP-KJ3I2UJ.002 89,841
DESKTOP-KJ3I2UJ.003 48,754
DESKTOP-KJ3I2UJ.004 51,056
DESKTOP-KJ3I2UJ.005 51,505
DESKTOP-KJ3I2UJ.006 51,609
DESKTOP-KJ3I2UJ.007 52,079
DESKTOP-KJ3I2UJ.008 47,824
DESKTOP-KJ3I2UJ.009 51,627
DESKTOP-KJ3I2UJ.010 52,105
DESKTOP-KJ3I2UJ.011 90,367
DESKTOP-KJ3I2UJ.012 90,219
DESKTOP-KJ3I2UJ.013 90,490
DESKTOP-KJ3I2UJ.014 91,251
DESKTOP-KJ3I2UJ.015 17,357
DESKTOP-KJ3I2UJ.016 16,710
ssj_ops@100% 978,080
ssj_ops@100% per JVM 61,130

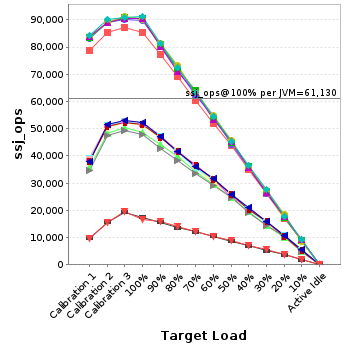

Graph of per-instance results

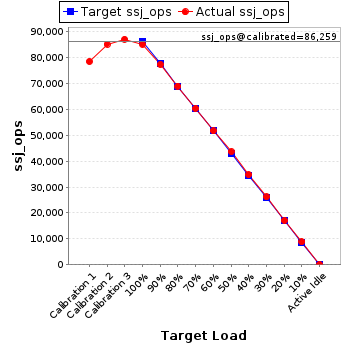

JVM 'DESKTOP-KJ3I2UJ.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     78,593
Calibration 2     85,320
Calibration 3     87,198
ssj_ops@calibrated=86,259
100% 98.9% 86,259 85,286
90% 89.7% 77,633 77,392
80% 80.1% 69,007 69,070
70% 70.1% 60,381 60,470
60% 60.0% 51,755 51,725
50% 50.7% 43,130 43,727
40% 40.4% 34,504 34,835
30% 30.4% 25,878 26,186
20% 19.8% 17,252 17,108
10% 10.2% 8,626 8,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,108
Calibration 2     89,163
Calibration 3     90,210
ssj_ops@calibrated=89,686
100% 100.2% 89,686 89,841
90% 90.0% 80,718 80,691
80% 80.0% 71,749 71,737
70% 69.2% 62,781 62,088
60% 60.7% 53,812 54,444
50% 49.3% 44,843 44,247
40% 39.7% 35,875 35,593
30% 29.2% 26,906 26,198
20% 20.1% 17,937 18,040
10% 9.7% 8,969 8,724
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     35,598
Calibration 2     48,306
Calibration 3     50,325
ssj_ops@calibrated=49,316
100% 98.9% 49,316 48,754
90% 89.8% 44,384 44,309
80% 80.9% 39,453 39,916
70% 69.7% 34,521 34,390
60% 59.8% 29,589 29,505
50% 50.3% 24,658 24,787
40% 39.7% 19,726 19,600
30% 29.5% 14,795 14,549
20% 20.0% 9,863 9,887
10% 10.0% 4,932 4,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

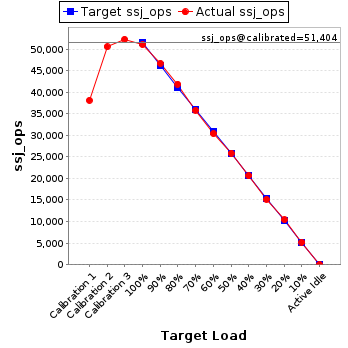

JVM 'DESKTOP-KJ3I2UJ.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     38,119
Calibration 2     50,534
Calibration 3     52,275
ssj_ops@calibrated=51,404
100% 99.3% 51,404 51,056
90% 90.9% 46,264 46,707
80% 81.4% 41,124 41,865
70% 69.7% 35,983 35,819
60% 59.1% 30,843 30,370
50% 50.3% 25,702 25,833
40% 40.1% 20,562 20,612
30% 29.5% 15,421 15,141
20% 20.3% 10,281 10,437
10% 10.1% 5,140 5,208
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     38,999
Calibration 2     50,829
Calibration 3     52,581
ssj_ops@calibrated=51,705
100% 99.6% 51,705 51,505
90% 90.9% 46,535 47,024
80% 80.1% 41,364 41,413
70% 71.0% 36,194 36,710
60% 60.7% 31,023 31,362
50% 48.0% 25,853 24,810
40% 40.4% 20,682 20,887
30% 30.0% 15,512 15,536
20% 20.0% 10,341 10,321
10% 10.1% 5,171 5,208
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     39,113
Calibration 2     51,173
Calibration 3     52,700
ssj_ops@calibrated=51,936
100% 99.4% 51,936 51,609
90% 91.0% 46,743 47,277
80% 80.0% 41,549 41,537
70% 67.9% 36,356 35,266
60% 60.5% 31,162 31,427
50% 49.7% 25,968 25,808
40% 39.1% 20,775 20,300
30% 29.7% 15,581 15,437
20% 20.3% 10,387 10,566
10% 10.1% 5,194 5,237
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

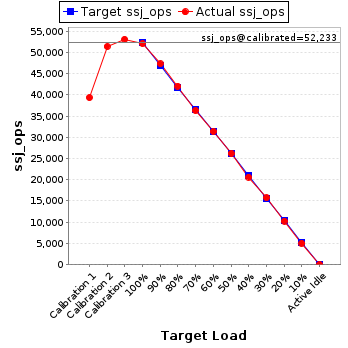

JVM 'DESKTOP-KJ3I2UJ.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     39,326
Calibration 2     51,375
Calibration 3     53,091
ssj_ops@calibrated=52,233
100% 99.7% 52,233 52,079
90% 90.6% 47,010 47,319
80% 80.5% 41,786 42,056
70% 69.5% 36,563 36,287
60% 60.1% 31,340 31,404
50% 50.1% 26,117 26,170
40% 39.5% 20,893 20,624
30% 30.1% 15,670 15,745
20% 19.7% 10,447 10,271
10% 9.6% 5,223 5,021
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     34,547
Calibration 2     47,513
Calibration 3     49,173
ssj_ops@calibrated=48,343
100% 98.9% 48,343 47,824
90% 88.5% 43,509 42,796
80% 79.1% 38,674 38,224
70% 69.2% 33,840 33,468
60% 60.2% 29,006 29,086
50% 50.8% 24,172 24,539
40% 39.9% 19,337 19,312
30% 29.8% 14,503 14,429
20% 21.1% 9,669 10,179
10% 10.1% 4,834 4,904
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     37,743
Calibration 2     50,744
Calibration 3     52,418
ssj_ops@calibrated=51,581
100% 100.1% 51,581 51,627
90% 90.5% 46,423 46,655
80% 80.4% 41,265 41,482
70% 70.7% 36,107 36,473
60% 60.5% 30,949 31,224
50% 50.3% 25,790 25,920
40% 39.4% 20,632 20,300
30% 31.1% 15,474 16,037
20% 20.0% 10,316 10,308
10% 10.1% 5,158 5,233
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     37,790
Calibration 2     51,440
Calibration 3     52,927
ssj_ops@calibrated=52,184
100% 99.8% 52,184 52,105
90% 90.2% 46,965 47,095
80% 79.8% 41,747 41,635
70% 69.0% 36,529 36,021
60% 60.4% 31,310 31,512
50% 49.3% 26,092 25,750
40% 40.4% 20,874 21,095
30% 30.3% 15,655 15,795
20% 20.3% 10,437 10,583
10% 10.3% 5,218 5,396
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,546
Calibration 2     89,066
Calibration 3     90,982
ssj_ops@calibrated=90,024
100% 100.4% 90,024 90,367
90% 89.8% 81,022 80,870
80% 80.0% 72,019 72,012
70% 71.0% 63,017 63,946
60% 59.9% 54,015 53,914
50% 49.7% 45,012 44,750
40% 40.1% 36,010 36,074
30% 30.0% 27,007 27,045
20% 19.2% 18,005 17,295
10% 10.0% 9,002 8,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,740
Calibration 2     89,140
Calibration 3     91,156
ssj_ops@calibrated=90,148
100% 100.1% 90,148 90,219
90% 90.3% 81,133 81,367
80% 81.0% 72,119 73,055
70% 70.0% 63,104 63,109
60% 60.7% 54,089 54,677
50% 50.7% 45,074 45,698
40% 39.6% 36,059 35,703
30% 30.3% 27,044 27,344
20% 20.4% 18,030 18,353
10% 9.5% 9,015 8,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

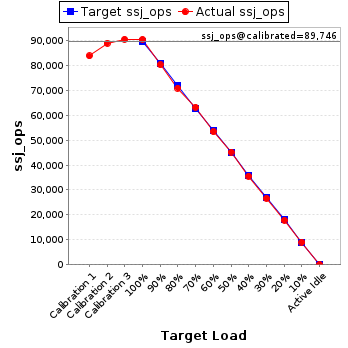

JVM 'DESKTOP-KJ3I2UJ.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,844
Calibration 2     88,925
Calibration 3     90,566
ssj_ops@calibrated=89,746
100% 100.8% 89,746 90,490
90% 89.5% 80,771 80,296
80% 79.0% 71,796 70,940
70% 70.5% 62,822 63,270
60% 59.5% 53,847 53,394
50% 50.4% 44,873 45,260
40% 39.6% 35,898 35,541
30% 29.7% 26,924 26,663
20% 19.9% 17,949 17,857
10% 10.1% 8,975 9,075
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,102
Calibration 2     90,178
Calibration 3     90,954
ssj_ops@calibrated=90,566
100% 100.8% 90,566 91,251
90% 89.7% 81,509 81,238
80% 79.9% 72,453 72,404
70% 69.9% 63,396 63,308
60% 60.2% 54,339 54,488
50% 49.9% 45,283 45,218
40% 40.4% 36,226 36,594
30% 30.5% 27,170 27,632
20% 19.6% 18,113 17,776
10% 10.0% 9,057 9,071
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

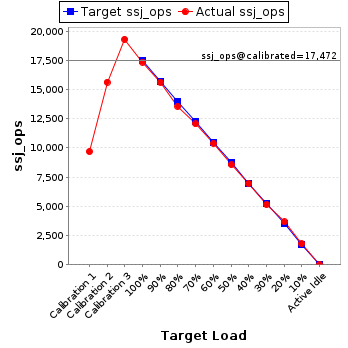

JVM 'DESKTOP-KJ3I2UJ.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     9,683
Calibration 2     15,636
Calibration 3     19,307
ssj_ops@calibrated=17,472
100% 99.3% 17,472 17,357
90% 89.5% 15,724 15,635
80% 77.6% 13,977 13,563
70% 69.0% 12,230 12,055
60% 59.4% 10,483 10,386
50% 49.0% 8,736 8,564
40% 39.8% 6,989 6,946
30% 29.5% 5,241 5,148
20% 21.0% 3,494 3,662
10% 10.3% 1,747 1,792
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     9,652
Calibration 2     15,679
Calibration 3     19,397
ssj_ops@calibrated=17,538
100% 95.3% 17,538 16,710
90% 90.9% 15,784 15,940
80% 80.8% 14,030 14,163
70% 69.5% 12,277 12,183
60% 59.2% 10,523 10,384
50% 50.4% 8,769 8,841
40% 39.4% 7,015 6,905
30% 30.9% 5,261 5,412
20% 20.6% 3,508 3,621
10% 10.2% 1,754 1,783
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
