SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| ASUSTeK Computer Inc. RS720A-E13-RS8U | SPECpower_ssj2008 = 44,168 overall ssj_ops/watt | ||||
| Test Sponsor: | ASUSTeK Computer Inc. | SPEC License #: | 9016 | Test Method: | Single Node |
| Tested By: | ASUSTeK Computer Inc. | Test Location: | Taipei, Taiwan. | Test Date: | Apr 7, 2025 |
| Hardware Availability: | Dec-2024 | Software Availability: | Feb-2025 | Publication: | May 6, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

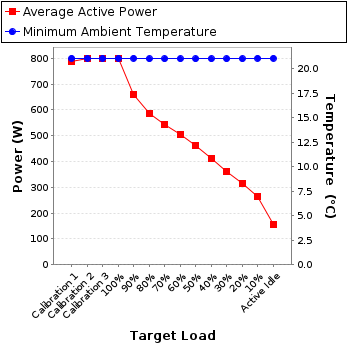

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 789 | 21.1 |
| Calibration 2 | 799 | 21.1 |
| Calibration 3 | 800 | 21.1 |
| 100% | 800 | 21.1 |
| 90% | 661 | 21.1 |
| 80% | 587 | 21.0 |
| 70% | 544 | 21.0 |
| 60% | 503 | 21.0 |
| 50% | 461 | 21.0 |
| 40% | 412 | 21.0 |
| 30% | 362 | 21.0 |
| 20% | 314 | 21.0 |
| 10% | 265 | 21.1 |
| Active Idle | 157 | 21.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT210 |
| Serial Number: | 91J615902 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | National Measurement Laboratory of the R.O.C. |
| Accredited by: | OMNIO Calibration Laboratory Ltd. |
| Calibration Label: | OCL-240517F00501 |
| Date of Calibration: | 17-May-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to PSU1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | placed in front the main airflow inlet of the SUT less than 50 mm. |

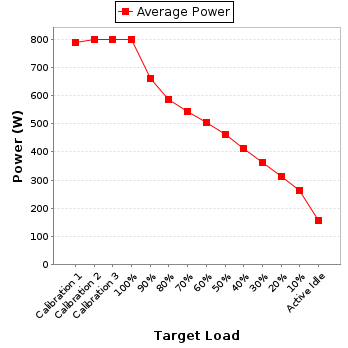

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 219 | 300.0 | 3.62 | 5.0 | 0.998 | 789 | 0.4% |
| Calibration 2 | 219 | 300.0 | 3.65 | 5.0 | 0.998 | 799 | 0.4% |
| Calibration 3 | 218 | 300.0 | 3.67 | 5.0 | 0.998 | 800 | 0.3% |
| 100% | 219 | 300.0 | 3.66 | 5.0 | 0.998 | 800 | 0.4% |
| 90% | 220 | 300.0 | 3.02 | 5.0 | 0.996 | 661 | 0.4% |
| 80% | 220 | 300.0 | 2.68 | 5.0 | 0.997 | 587 | 0.4% |
| 70% | 220 | 300.0 | 2.49 | 5.0 | 0.995 | 544 | 0.4% |
| 60% | 220 | 300.0 | 2.30 | 5.0 | 0.993 | 503 | 0.5% |
| 50% | 220 | 300.0 | 2.11 | 5.0 | 0.991 | 461 | 0.5% |
| 40% | 221 | 300.0 | 1.89 | 2.0 | 0.989 | 412 | 0.3% |
| 30% | 221 | 300.0 | 1.66 | 2.0 | 0.989 | 362 | 0.3% |
| 20% | 221 | 300.0 | 1.44 | 2.0 | 0.989 | 314 | 0.4% |
| 10% | 220 | 300.0 | 1.22 | 2.0 | 0.988 | 265 | 0.4% |
| Active Idle | 220 | 300.0 | 0.743 | 1.0 | 0.960 | 157 | 0.4% |
