ASUSTeK Computer Inc. RS720A-E13-RS8U SPECpower_ssj2008 = 42,456 overall ssj_ops/watt
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Single Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan. Test Date: Apr 2, 2025
Hardware Availability: Dec-2024 Software Availability: Feb-2025 Publication: May 6, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 39,140,079 800 48,949
90% 90.0% 35,346,516 680 52,018
80% 79.9% 31,401,813 589 53,350
70% 70.0% 27,504,969 546 50,342
60% 60.0% 23,556,601 504 46,726
50% 50.0% 19,633,147 462 42,506
40% 40.0% 15,710,088 413 38,049
30% 30.0% 11,780,540 362 32,537
20% 20.0% 7,864,351 315 24,996
10% 10.0% 3,928,805 265 14,834
Active Idle 0 150 0
∑ssj_ops / ∑power = 42,456

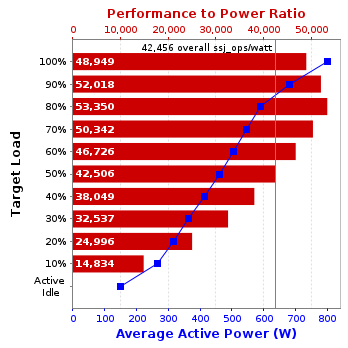

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS720A-E13-RS8U
Form Factor: 2U
CPU Name: AMD EPYC 9965
CPU Characteristics: 192-Core, 2.25GHz, 384MB L3 Cache, AMD Core Performance Boost up to 3.70GHz
CPU Frequency (MHz): 2250
CPU(s) Enabled: 384 cores, 2 chips, 192 cores/chip
Hardware Threads: 768 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 384 MB I+D on chip per chip, 32 MB shared / 16 cores
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16 GB
Memory Details: 24 x 16GB 1Rx8 PC5-6400B-R ECC RDIMM; all DIMM slots populated
Power Supply Quantity and Rating (W): 1 x 2700
Power Supply Details: DELTA DPS-2700AB-2 B REV:S1F, P/N: 0A100-00610100
Disk Drive: 1 x 512GB Samsung P4X4 M.2 PCIE SSD, P/N: 03B03-00377300
Disk Controller: Integrated PCIe controller
# and type of Network Interface Cards (NICs) Installed: 1 x ASUS PEI-10G/X710-2T OCP3 adapter, P/N: 90SC0HU0-M0XBN0
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (See SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 15 SP6
OS Version: 6.4.0-150600.21-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 17.0.12+8-LTS-286, mixed mode, sharing)
JVM Command-line Options: -server -Xmn1450m -Xms1650m -Xmx1650m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:UseAVX=1 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:+OptimizeFill -XX:+AggressiveHeap -XX:FreqInlineSize=2500 -XX:InlineSmallCode=3900 -XX:+UseBiasedLocking -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=8
JVM Affinity: for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId+1, physicalCoreId+384, physicalCoreId+385 --membind=0-23}
JVM Instances: 192
JVM Initial Heap (MB): 1650
JVM Maximum Heap (MB): 1650
JVM Address Bits: 64
Boot Firmware Version: 0502
Management Firmware Version: 1.1.19
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: ASUS Control Center V3.1.0.3
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS200-E9-PS2
CPU Description: 1 x E3-1240L V5
Memory amount (GB): 64
Software
Operating System (OS): Windows Server 2012 R2 Datacenter (64-bit)
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT210
Serial Number: 91J615902
Connectivity: RS-232
Input Connection: Default
Metrology Institute: National Measurement Laboratory of the R.O.C.
Accredited by: OMNIO Calibration Laboratory Ltd.
Calibration Label: OCL-240517F00501
Date of Calibration: 17-May-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.1-462c978e-20240907
Setup Description: Connected to PSU1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50 mm.
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 800 21.2
90% 680 21.2
80% 589 21.2
70% 546 21.2
60% 504 21.2
50% 462 21.2
40% 413 21.2
30% 362 21.2
20% 315 21.2
10% 265 21.2
Active Idle 150 21.2
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 21.2 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     39,637,956
Calibration 2     39,303,373
Calibration 3     39,269,184
ssj_ops@calibrated=39,286,279
100% 99.6% 39,286,279 39,140,079
90% 90.0% 35,357,651 35,346,516
80% 79.9% 31,429,023 31,401,813
70% 70.0% 27,500,395 27,504,969
60% 60.0% 23,571,767 23,556,601
50% 50.0% 19,643,139 19,633,147
40% 40.0% 15,714,511 15,710,088
30% 30.0% 11,785,884 11,780,540
20% 20.0% 7,857,256 7,864,351
10% 10.0% 3,928,628 3,928,805
Active Idle   0 0

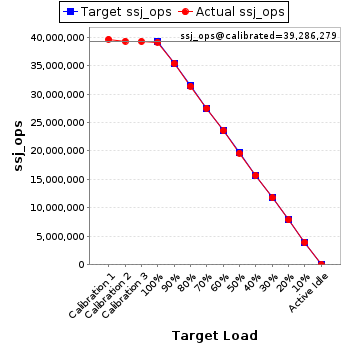

Graph of results
See the Host Performance Report for additional details.
