SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY RX1330 M6 | SPECpower_ssj2008 = 12,846 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Mar 20, 2025 |
| Hardware Availability: | Apr-2025 | Software Availability: | Jan-2024 | Publication: | Apr 9, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

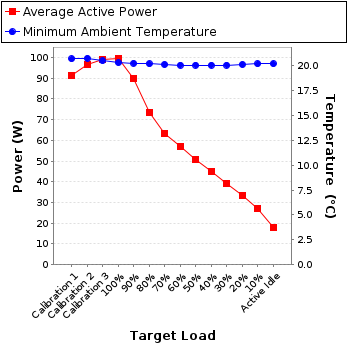

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 91.1 | 20.7 |
| Calibration 2 | 96.6 | 20.8 |
| Calibration 3 | 98.9 | 20.5 |
| 100% | 99.6 | 20.3 |
| 90% | 90.0 | 20.2 |
| 80% | 73.2 | 20.2 |
| 70% | 63.3 | 20.1 |
| 60% | 57.0 | 20.1 |
| 50% | 50.8 | 20.1 |
| 40% | 44.9 | 20.1 |
| 30% | 39.3 | 20.1 |
| 20% | 33.3 | 20.1 |
| 10% | 27.0 | 20.2 |
| Active Idle | 17.8 | 20.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170121768 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Science and Technology) |
| Accredited by: | Kyosai Technos Co.,Ltd. |
| Calibration Label: | RY246003099 |
| Date of Calibration: | 19-Jun-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |

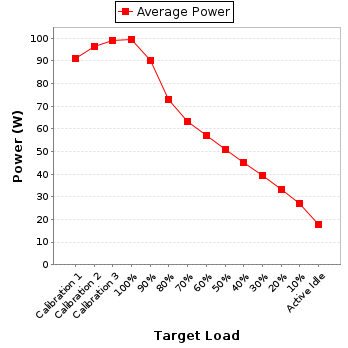

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 0.491 | 1.0 | 0.897 | 91.1 | 0.3% |
| Calibration 2 | 207 | 300.0 | 0.517 | 1.0 | 0.905 | 96.6 | 0.3% |
| Calibration 3 | 206 | 300.0 | 0.528 | 1.0 | 0.907 | 98.9 | 0.3% |
| 100% | 206 | 300.0 | 0.532 | 1.0 | 0.908 | 99.6 | 0.3% |
| 90% | 206 | 300.0 | 0.488 | 1.0 | 0.895 | 90.0 | 0.3% |
| 80% | 206 | 300.0 | 0.410 | 1.0 | 0.868 | 73.2 | 0.4% |
| 70% | 206 | 300.0 | 0.363 | 1.0 | 0.847 | 63.3 | 0.4% |
| 60% | 206 | 300.0 | 0.333 | 1.0 | 0.829 | 57.0 | 0.4% |
| 50% | 206 | 300.0 | 0.305 | 1.0 | 0.808 | 50.8 | 0.5% |
| 40% | 206 | 300.0 | 0.278 | 1.0 | 0.784 | 44.9 | 0.5% |
| 30% | 206 | 300.0 | 0.253 | 0.5 | 0.756 | 39.3 | 0.4% |
| 20% | 206 | 300.0 | 0.225 | 0.5 | 0.718 | 33.3 | 0.4% |
| 10% | 206 | 300.0 | 0.197 | 0.5 | 0.666 | 27.0 | 0.5% |
| Active Idle | 206 | 300.0 | 0.157 | 0.5 | 0.553 | 17.8 | 0.7% |
